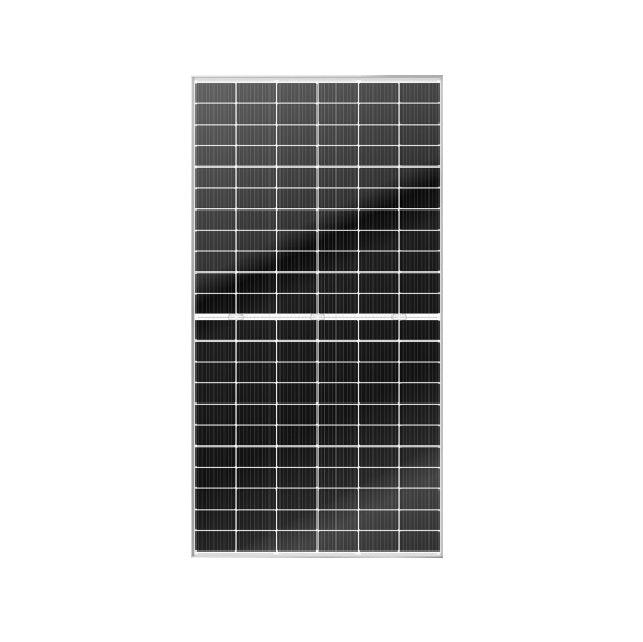

Thornova Solar TS-BW66(505)
Thornova Solar TS-BW66(505)
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Trusted by 1,000s of Contractors & Installers
In Stock
SKU  PES-SPS-SOL-20952

Thornova Solar TS-BW66(505)

Thornova Solar TS-BW66(505)

OEM Authorized Dealer BABA Compliant Full OEM Warranty 7-10 Business Day Delivery
$180.00 USD
$0.01 $180.00 USD
Sale Sold out

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone (888) 876-0007
phone Instant Live Chat
phone Mon-Fri 10am-6pm EST
View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Thornova Solar TS-BW66(505) 505W HJT Bifacial Solar Panel

Model TS-BW66(505) | HJT Cell Technology | 120 Half-Cell | Bifacial | DC1500V System Voltage

505W
Max Power Output
22.00%
Module Efficiency
120
HJT Half-Cell

Product Overview

The Thornova Solar TS-BW66(505) is a high-efficiency bifacial solar panel built for strong, reliable energy production. It uses 120 HJT half-cut cells to improve output and support stable performance in challenging conditions. This module is designed for residential, commercial, and larger-scale solar projects that need dependable generation and long service life. Its bifacial construction helps capture additional light from the rear side, which can raise total system yield. With a 505W maximum power rating and up to 22% efficiency, it offers a strong balance of power density and installation flexibility. The panel also supports modern system designs with a 1500V maximum system voltage. Its durable construction and long warranty coverage make it a practical choice for performance-focused solar installations.

Key Benefits

High Power Output: The module delivers up to 505W for strong energy production in demanding systems.

Excellent Efficiency: Efficiency reaches 22.00%, helping maximize generation within limited roof or ground space.

Bifacial Gain: Bifaciality of 90±5% supports meaningful rear-side power generation in suitable installations.

Low-Light Performance: HJT cell technology provides strong output in weak light and hot climate conditions.

Durable Design: The panel is certified for 5400 Pa front load and 2400 Pa rear load resistance.

Long-Term Reliability: Anti-PID protection and low degradation support stable performance over many years.

How It Works

The Thornova Solar TS-BW66(505) converts sunlight into electricity through advanced heterojunction cell technology. Its HJT design combines crystalline silicon with thin-film layers to improve carrier collection and reduce energy loss. Half-cut cell architecture helps lower resistance and improve output consistency across the module. The bifacial rear side can capture reflected light, which increases total generation when installed above reflective surfaces. This design is especially useful for ground-mount, carport, and open-frame systems. The module also supports stable operation in hot weather, because its temperature coefficient is low. That helps preserve power output when module temperatures rise during daily operation.

HJT Cell Conversion: The heterojunction cell structure improves light-to-electricity conversion efficiency. It also supports better performance in low-irradiance conditions.

Half-Cut Current Control: Half-cut cells reduce electrical resistance and help minimize internal power loss. This improves output stability across the panel surface.

Bifacial Rear-Side Capture: The rear glass design allows additional light to be converted from reflected irradiation. That can improve total system yield in the right installation environment.

Technical Specifications

Rated Power Output 505W
Module Efficiency Up to 22.00%
Cell Type 120 HJT Cells
Cell Size 166 x 83 mm
Module Dimension 1755 x 1038 x 30 mm
Weight 23.5 kg
Open Circuit Voltage 44.74 V
Short Circuit Current 10.74 A
Maximum Power Voltage 38.36 V
Maximum Power Current 10.44 A
Operating Temperature -40 to +85°C
Maximum System Voltage DC1500V (IEC)
Maximum Series Fuse 20A
Power Sorting 0 to +5W
Bifaciality 90±5%
NOCT 44°C (±2°C)
Temperature Coefficient of Pmax -0.26 %/°C
Temperature Coefficient of Voc -0.24 %/°C
Temperature Coefficient of Isc 0.04 %/°C
Front Glass 2.0 mm anti-reflective solar glass
Rear Glass 2.0 mm white ceramic patterned PV glass
Frame Anodised aluminum alloy
Junction Box IP67/IP68
Output Cable 4 mm², 200 mm length, customizable
Connectors MC4 compatible
Encapsulant POE
Front Load 5400 Pa
Rear Load 2400 Pa
Safety Class Class II
Fire Rating Class A

Certifications & Compliance

Certifications: IEC-rated design, Class II safety class, Class A fire rating, 5400 Pa front load, 2400 Pa rear load
Inverter Compatibility: MC4 compatible connectors and DC1500V system support
Environmental: Built for -40 to +85°C operating conditions with durable bifacial glass construction
Warranty: 20 years workmanship warranty and 30 years linear power output warranty, with 99% in year one and 0.37% annual degradation after year two to year 30
