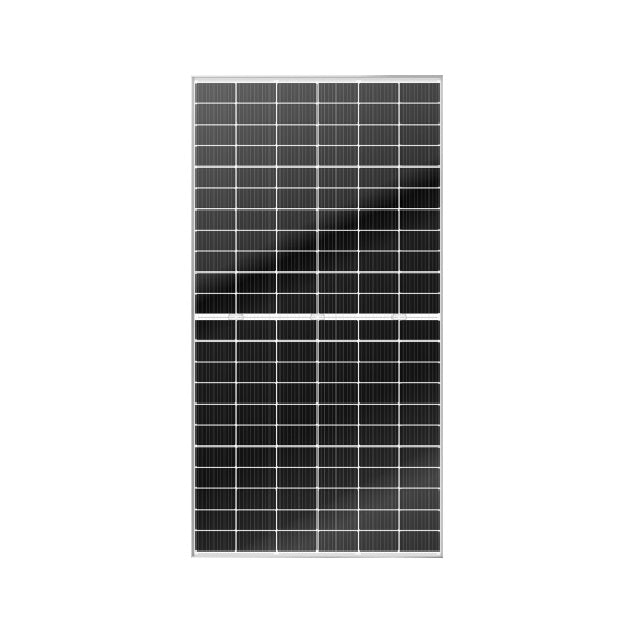

Thornova Solar TS-BW66(510)
Thornova Solar TS-BW66(510)
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Trusted by 1,000s of Contractors & Installers
In Stock
SKU  PES-SPS-SOL-20953

Thornova Solar TS-BW66(510)

Thornova Solar TS-BW66(510)

OEM Authorized Dealer BABA Compliant Full OEM Warranty 7-10 Business Day Delivery
$180.00 USD
$0.01 $180.00 USD
Sale Sold out

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone (888) 876-0007
phone Instant Live Chat
phone Mon-Fri 10am-6pm EST
View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Thornova Solar TS-BW66(510) 510W HJT Bifacial Solar Panel

TS-BW66(510) | HJT | 120 Half-Cell | Bifacial | DC1500V System Voltage

510W
Max Power Output
22.0%
Module Efficiency
120 Cells
HJT Bifacial

Product Overview

The Thornova Solar TS-BW66(510) is a high-performance bifacial solar panel built with HJT cell technology. It is designed for strong energy production in residential, commercial, and utility applications. The module delivers up to 510W of rated power and reaches 22.0% efficiency. Its advanced half-cut design supports better output under real-world conditions. Bifacial generation helps capture more energy from reflected light. Strong mechanical ratings and long warranty coverage add further value for demanding installations.

Key Benefits

High Output Rating: Delivers up to 510W for strong system-level energy production.

Excellent Efficiency: Reaches 22.0% module efficiency for better space utilization.

Bifacial Power Gain: Bifaciality of 90±5% improves backside energy generation.

Strong Mechanical Strength: Certified for 5400 Pa front load and 2400 Pa rear load.

Long-Term Reliability: Features low degradation, anti-PID resistance, and a 30-year performance warranty.

Better Low-Light Performance: HJT technology supports excellent output in weak light and hot climates.

How It Works

The TS-BW66(510) works by combining HJT cell architecture with bifacial design. This allows the module to convert sunlight from the front and rear sides. Half-cut construction helps reduce internal resistance and improves power stability. The 12BB design supports better current collection across the cell surface. Together, these features improve energy harvest across changing weather, roof angles, and ground reflections. The module is also designed to keep performance more stable in high temperatures. That makes it suitable for projects that need dependable output over many years.

HJT Cell Conversion: Heterojunction cells help the module capture sunlight efficiently. They also support strong performance in weak light and heat.

Half-Cut Cell Layout: The half-cut format lowers resistance and supports smoother current flow. It can also improve shading tolerance in practical installations.

Bifacial Energy Capture: Rear-side generation adds usable power from reflected light. This boosts output in suitable mounting environments.

Technical Specifications

Model TS-BW66(510)
Product Type Bifacial HJT half-cut solar module
Cell Count 120 cells
Cell Type HJT cell, 166 x 83 mm
Rated Power 510W
Module Efficiency 22.0%
Open Circuit Voltage 44.74V
Short Circuit Current 10.74A
Maximum Power Voltage 38.36V
Maximum Power Current 10.44A
Operating Temperature -40 to +85°C
Maximum System Voltage DC1500V (IEC)
Maximum Series Fuse 20A
Power Sorting 0~+5W
Bifaciality 90±5%
Module Dimensions 1755 x 1038 x 30 mm
Weight 23.5 kg
Junction Box IP67/IP68
Output Cable 4mm², 200mm length, customizable
Connectors MC4 compatible
Frame Anodised aluminum alloy
Encapsulant POE
Front Load 5400 Pa
Rear Load 2400 Pa
Front Glass 2.0mm anti-reflective solar glass
Rear Glass 2.0mm white ceramic patterned PV glass
NOCT 44°C (±2°C)
Temperature Coefficient of Pmax -0.26%/°C
Temperature Coefficient of Voc -0.24%/°C
Temperature Coefficient of Isc 0.04%/°C
Safety Class Class II
Fire Rating Class A

Certifications & Compliance

Certifications: Certified for enhanced mechanical load performance, including 5400 Pa front load and 2400 Pa rear load.
Inverter Compatibility: MC4 compatible connectors support broad system integration.
Environmental: Designed for -40 to +85°C operation with excellent low-light and hot-climate performance.
Warranty: 20-year workmanship warranty and 30-year linear performance warranty, with 99% year-one output and 0.37% annual degradation from year two to year 30.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
