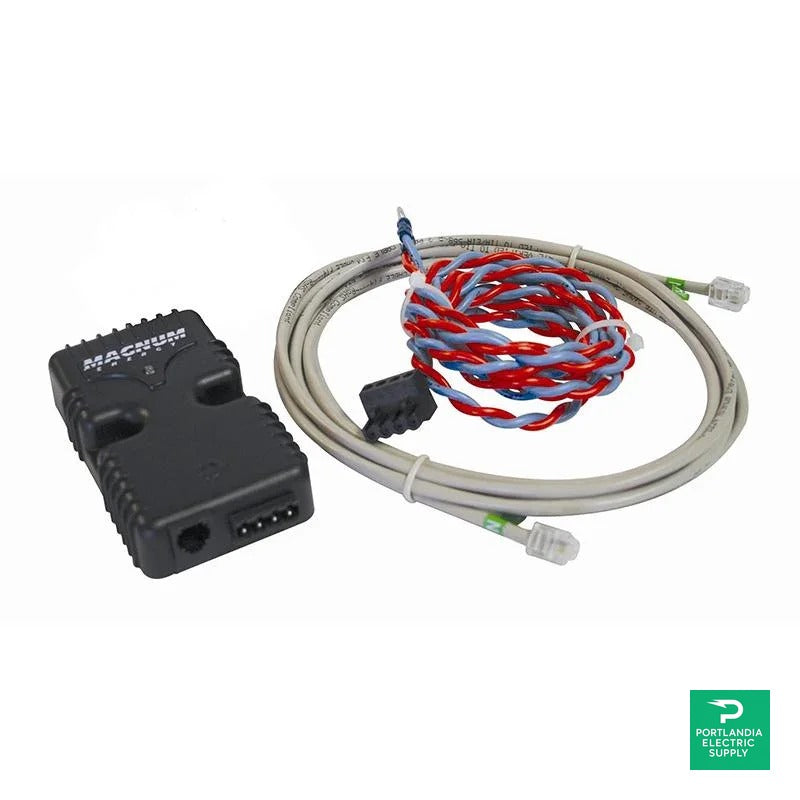

Magnum Battery Monitor Kit - ME-BMK-NS

Magnum Battery Monitor Kit - ME-BMK-NS

Return policy

Specification

View full details
  • Product Description

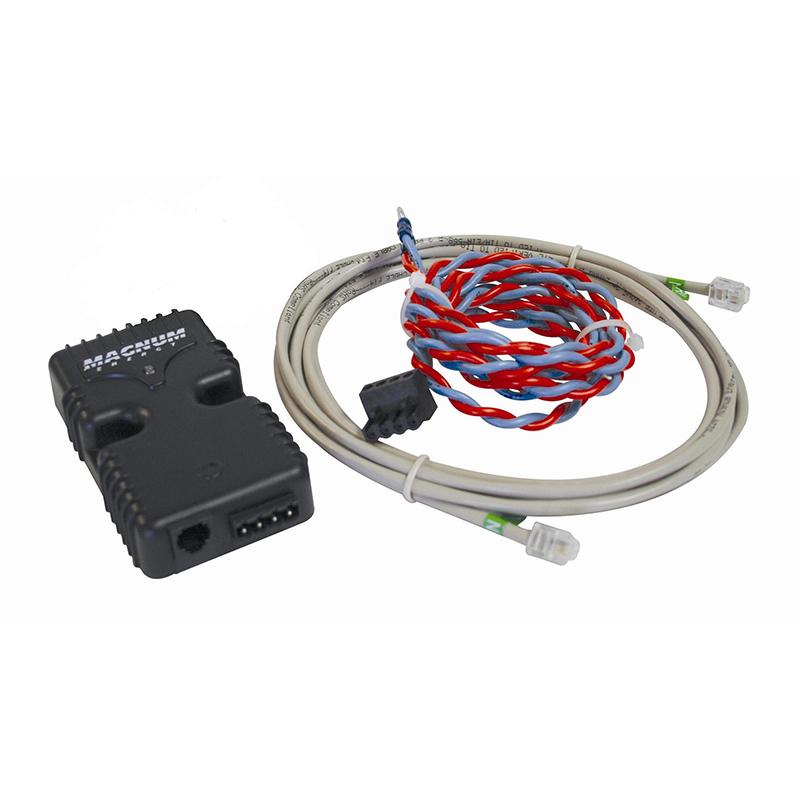

    Magnum Energy ME-BMK-NS Battery Monitor Kit

    The Magnum Energy ME-BMK-NS Battery Monitor Kit provides precise monitoring of your battery system's state of charge (SOC), helping to prolong battery life and performance. This kit is an essential tool for ensuring your batteries are consistently and adequately charged, delivering reliable functionality for both minimal and extensive energy use scenarios.

    Product Features

    Accurate Battery SOC Monitoring

    Track your battery's state of charge with precision, thanks to the advanced monitoring capabilities of this device, ensuring optimal performance of your energy system.

    Comprehensive Amp-Hour Tracking

    Efficiently measure amp-hours going in and out of your battery, keeping you informed about available capacity and helping to prevent over-discharge.

    Intuitive Interface with LED Indicators

    Utilize the clear and user-friendly interface, featuring LED indicators that provide immediate feedback on battery condition via real-time data.

    Seamless Integration with Existing Systems

    Designed for integration with Magnum inverters and compatible systems, making it a versatile addition to your current setup without requiring extensive modifications.

    Enhanced Longevity through Proper Management

    Extend the lifespan of your battery bank by using this kit to consistently maintain and manage battery health through insightful data and easy-to-use management tools.

    How It Works

    The ME-BMK-NS operates by continually measuring the electrical flow into and out of your battery bank. Its advanced components track amp-hours and voltage to provide a wealth of information regarding battery conditions, making battery management more convenient and reliable.

    Precision Sense Module

    This component plays a crucial role by accurately detecting variations in voltage and current, ensuring the monitoring system delivers precise data for improved battery care.

    Robust DC Shunt

    Offers accurate current measurement without compromising electrical integrity, supporting the reliable operation of the monitoring system.

    Reliable Communication Cable

    Facilitates clear data transfer between the sense module and compatible remote interfaces, enabling efficient monitoring and system management.

    Specifications

    DC Volts Range 7 to 70 volts (0.5%)
    DC Amps 0.1 to 999 (1.0%)
    Battery SOC Percentage 0 to 100% (1% increments)
    Power Draw Less than 0.6 watts
    Amp Hours (In/Out) 32,768 (1 AH increments)
    Overload Current 500 amps for under 5 minutes
    Resistance 0.1 milliohm
    Twisted-Pair Sense Wire 18 AWG, 5' length
    Communication Cable 4-conductor, 10' twisted pair
    Shipping Weight 2 lb (0.9 kg)
