Outback Power > 9.0kW FLEXpower THREE International Fully Pre-Wired - FP3 VFXR3048E

Outback Power > 9.0kW FLEXpower THREE International Fully Pre-Wired - FP3 VFXR3048E

$14,890.98 USD
$14,890.98 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SIV-0366
  • Brands: Outback Power
  • Documents:

    Specsheet
  • Height: 46
  • Length: 13
  • Phase:
    • Three Phase
  • Width: 58.42
View full details

Product Description

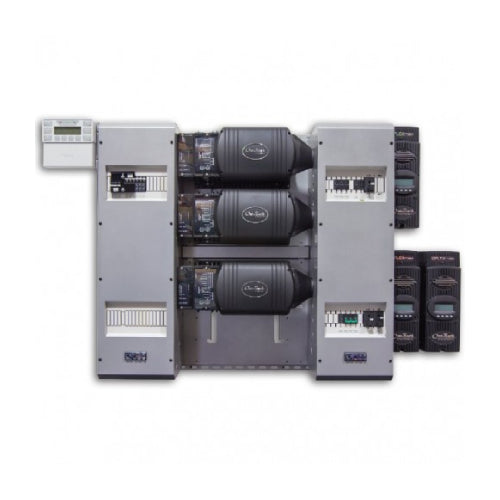

  • Outback Power 9.0kW FLEXpower THREE International Pre-Wired System

    The Outback Power FP3 VFXR3048E is a versatile inverter/charger solution designed for both off-grid and grid-tied applications. Featuring a robust 9.0kW power capability, this system is ideal for those seeking reliable power conversion across various scenarios. With advanced features like intelligent battery charging and modular design, it offers flexibility and ease of integration for system designers.

    Product Features

    Robust Power Capability

    The FP3 VFXR3048E offers a substantial 9.0kW power output, making it a powerful solution for diverse energy requirements.

    Grid-Interactive and Off-Grid Operation

    Enjoy seamless power transition with both grid-interactive and off-grid capabilities, catering to a wide range of power needs.

    Advanced System Integration

    Designed for compatibility, the system's modular architecture allows stacking up to nine units for expansive setups.

    Intelligent Battery Charging

    With Advanced Battery Charging (ABC), the system supports various energy storage technologies, enhancing battery performance.

    Durable Construction

    Built with a NEMA type 1 die-cast aluminum chassis, it resists corrosion and harsh environmental conditions, ensuring longevity.

    How It Works

    Equipped for both off-grid and grid-connected operation, the Outback Power FP3 VFXR3048E seamlessly integrates into diverse power systems. It supports a modular approach for easy scalability and enhanced performance.

    Multi-Phase Operation

    Facilitates three-phase systems, with the ability to stack up to nine inverters for a robust power solution.

    Programmable Modes

    Offers seven adaptable modes, including GridZero, allowing users to customize operations to specific energy demands.

    Remote System Management

    Connect with OPTICS RE through the MATE3 interface to monitor and manage system performance from anywhere.

    Specifications

    Continuous Power Rating 3000VA
    AC Output Voltage 230VAC (Selectable 200-260VAC)
    AC Output Frequency 50Hz (Selectable 60Hz)
    Nominal DC Input Voltage 48VDC
    Continuous AC RMS Output 13AAC
    Idle Power Consumption Full: ~34W, Search: ~9W, Off: ~3W
    Typical Efficiency 93%
    Total Harmonic Distortion Maximum: < 5%
    Output Voltage Regulation 2.5%
    Surge Rating 5750VA
    Operating Temperature Range -40 to 60C
    Relative Humidity Rating 93%
    Certifications IEC 62109-1, CE, RoHS Compliant
