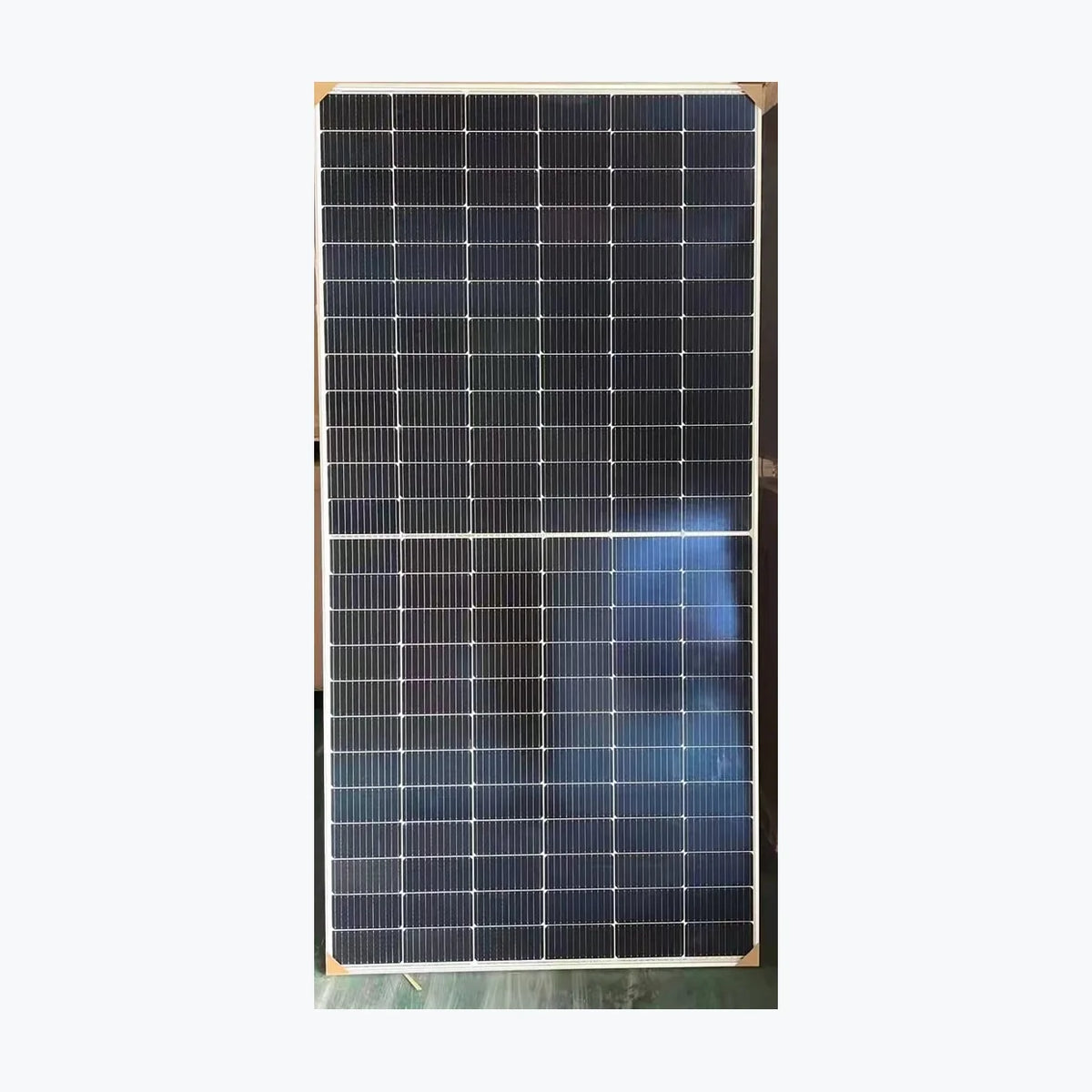

    Ruihuang New Energy and Science RHM182M144H-545W

    Ruihuang New Energy and Science RHM182M144H-545W

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-16121
    • Container price: $54.00 USD
    • Container qty: 720
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. RHM182M144H-545W Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 545 Wp Voltage at Maximum Power (Vmpp) 42.06 V Current at Maximum Power (Impp) 12.96 A Open Circuit Voltage (Voc) 49.7 V Short Circuit Current (Isc) 13.84 A Panel Efficiency 21.09 % Maximum Power (Pmax) 402 Wp Voltage at Maximum Power (Vmpp) 38.26 V Current at Maximum Power (Impp) 10.51 A Open Circuit Voltage (Voc) 45.89 V Short Circuit Current (Isc) 11.18 A Temperature 45±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc +0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2279x1134x35 mm Weight 28.6 kg Cell Size 182×91 mm Cell Number 144 Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet

      Power Range: 530 ~ 550 Wp
      Panel Efficiency: 20.51 ~ 21.28 %
      Weight: 28.6 kg
      Seller Name: Jiangxi Ruihuang New Energy and Science Co., Ltd.
      Country: China
