Solis 36kW 3-Phase 4-MPPT 480VAC Inverter with 10 Year Standard Warranty - 36K-US-SW

Solis 36kW 3-Phase 4-MPPT 480VAC Inverter with 10 Year Standard Warranty - 36K-US-SW

$4,055.89 USD
$4,055.89 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SIV-0161
  • Brands: Solis
  • Documents:

    Datasheet

    Installation Manual
  • Height: 38
  • Length: 14
  • Special sections quote cta:
    • AFCI
  • Width: 21
View full details

Product Description

  • Solis 36kW 3-Phase Inverter with 480VAC Output

    The Solis 36K-US-SW inverter is designed to offer efficient, reliable power conversion for commercial and industrial applications. With its compact, transformer-less design, this inverter provides cutting-edge technologies including 4 MPPTs and an ultra-low start-up voltage for enhanced performance. Targeted for seamless integration with a range of PV modules, this unit includes a robust 10-year warranty, guaranteeing durability and peace of mind.

    Product Features

    High Efficiency

    The Solis 36K-US-SW inverter delivers a remarkable maximum efficiency of 98.6%, ensuring optimal energy conversion and making the most of the installed solar panels.

    Advanced MPPT Technology

    Equipped with industry-leading 4 MPPT (Maximum Power Point Tracking) designs, this inverter optimizes the power output by quickly adapting to changing sunlight conditions, improving energy harvest.

    Robust Protection Mechanisms

    This inverter includes integrated AFCI and anti-islanding protection, ensuring safe and reliable operation while reducing the risk of electrical faults and fire hazards.

    User-Friendly Display

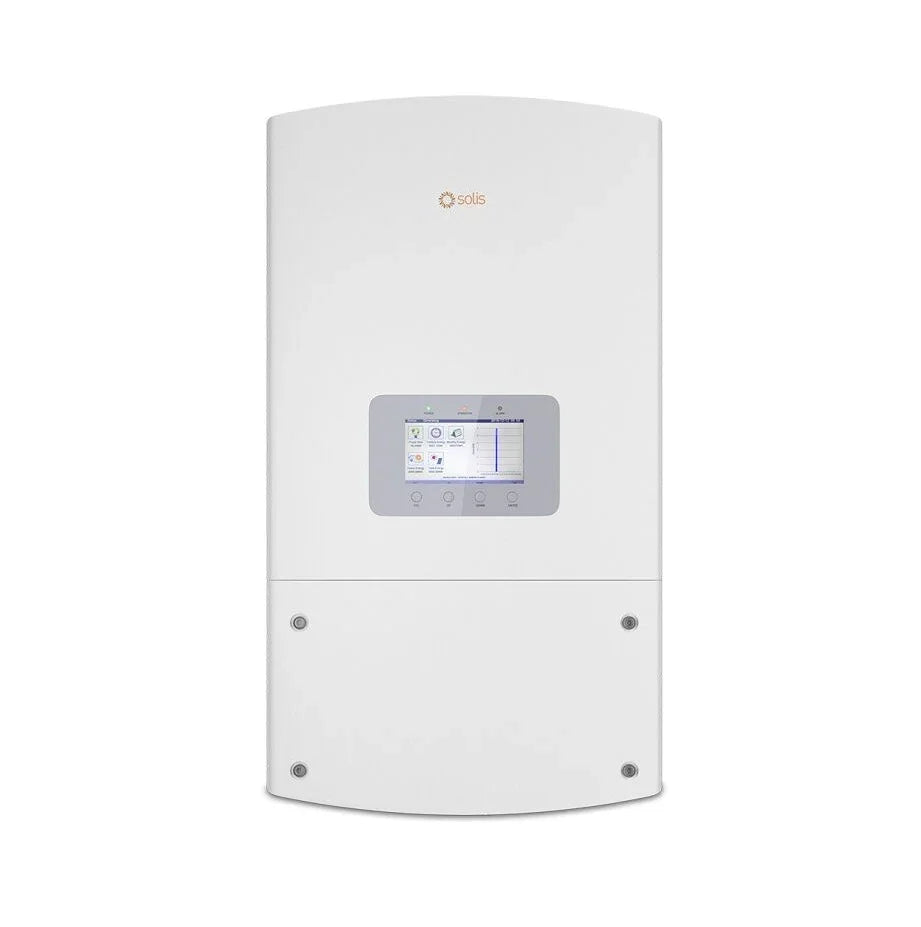

    Featuring a spacious 7" LCD color screen, the inverter allows for easy monitoring of energy production and system status at a glance, simplifying management for users.

    Seamless Communication

    With Modbus RTU communication protocol and optional Wi-Fi or cellular connectivity, the Solis 36K-US-SW facilitates remote energy monitoring and control, allowing users to stay connected with their system.

    How It Works

    The Solis 36K-US-SW inverter operates by converting DC power from solar panels into usable AC power for homes and businesses. This process utilizes multiple MPPTs to achieve efficient energy conversion and adjust to variable solar conditions.

    DC to AC Conversion

    This component efficiently transforms direct current (DC) from the PV panels into alternating current (AC), which is used to power electrical appliances and feed into the grid.

    Multifaceted Protection

    Featuring integrated protection systems, the inverter mitigates risks like DC arc faults and ground faults, enhancing safety and system longevity.

    Energy Monitoring

    The built-in LCD screen and communication capabilities allow users to access real-time data on energy production and system parameters, enabling informed energy management decisions.

    Specifications

    Recommended Max. PV Power 54 kW
    Max. Input Voltage 1000 V
    Rated Voltage 700 V
    Start-up Voltage 350 V
    MPPT Voltage Range 200 - 800 V
    Max. Input Current 4x18 A
    Max. Short Circuit Current 4x28.1 A
    Rated Output Power 36 kW
    Rated Grid Voltage 3Ф/PE, 480 V
    Max. Efficiency 98.6%
