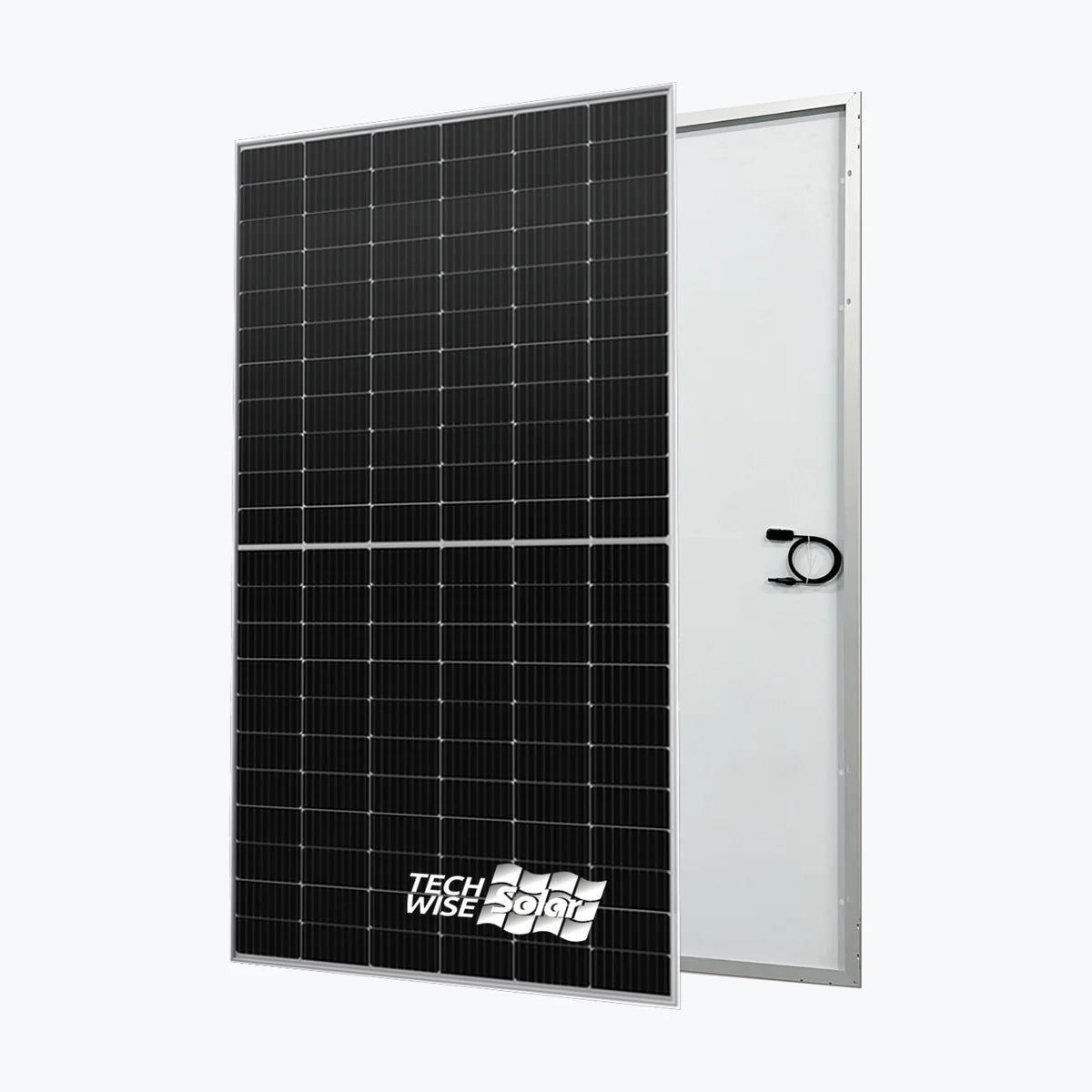

    Techwise Solar 485W

    Techwise Solar 485W

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-20703
    • Container price: $48.60 USD
    • Container qty: 720
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 485W Product Warranty 12 Years Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 485 Wp Voltage at Maximum Power (Vmpp) 38 V Current at Maximum Power (Impp) 12.77 A Open Circuit Voltage (Voc) 45.2 V Short Circuit Current (Isc) 13.68 A Panel Efficiency 20.42 % Maximum Power (Pmax) 365 Wp Voltage at Maximum Power (Vmpp) 34.8 V Current at Maximum Power (Impp) 10.49 A Open Circuit Voltage (Voc) 42.31 V Short Circuit Current (Isc) 11.07 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2094x1134x35 mm Weight 26 kg Cell Size 182×182 mm Cell Number 132 Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable

      Technology: PERC
      Power Range: 485 ~ 505 Wp
      Panel Efficiency: 20.42 ~ 21.27 %
      Weight: 26 kg
      Seller Name: Techwise Solar Technology Co., Ltd.
      Country: China
