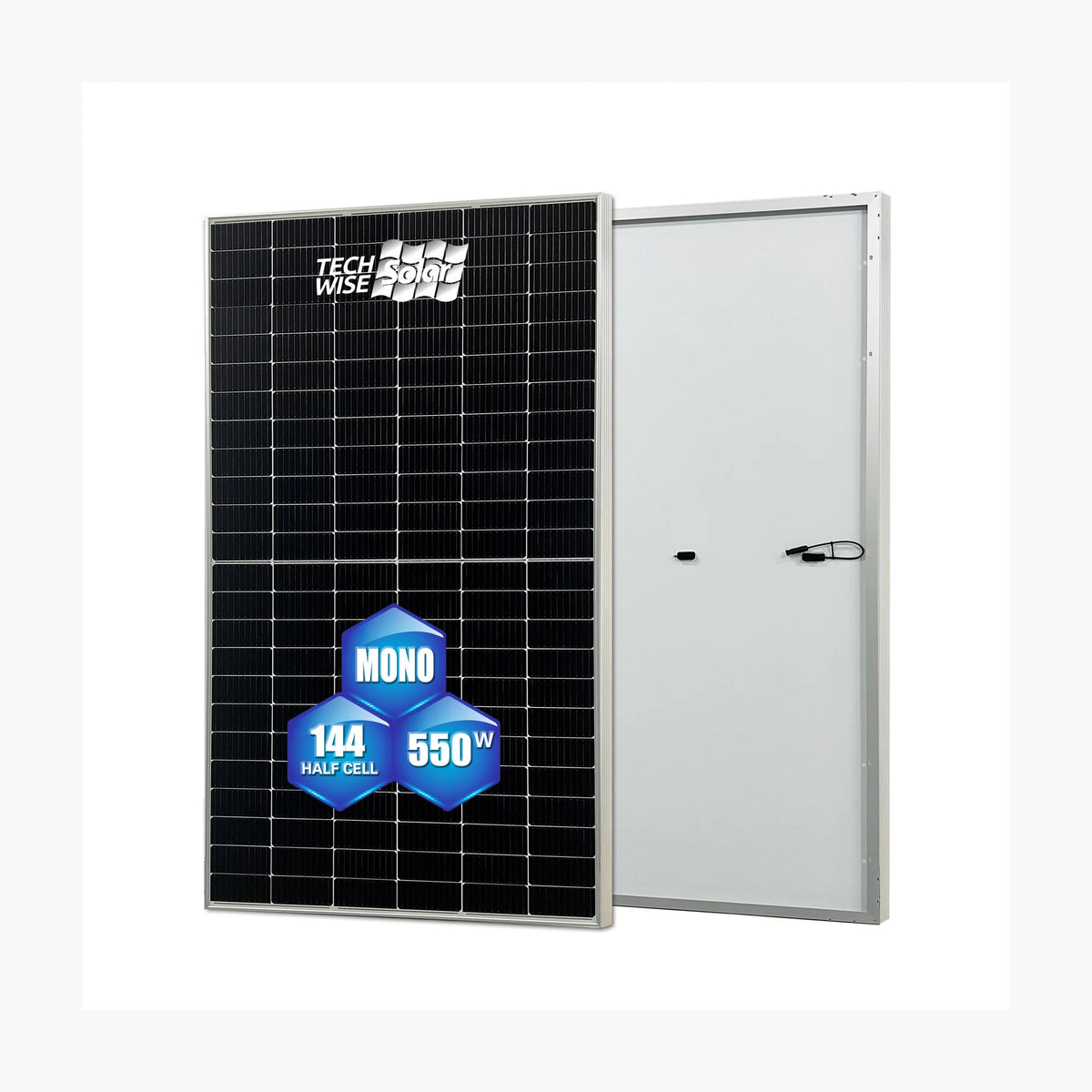

    Techwise Solar 545W

    Techwise Solar 545W

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-20711
    • Container price: $48.60 USD
    • Container qty: 720
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 545W Product Warranty 12 Years Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 545 Wp Voltage at Maximum Power (Vmpp) 41.85 V Current at Maximum Power (Impp) 13.03 A Open Circuit Voltage (Voc) 49.7 V Short Circuit Current (Isc) 13.91 A Panel Efficiency 21.09 % Maximum Power (Pmax) 412 Wp Voltage at Maximum Power (Vmpp) 39.14 V Current at Maximum Power (Impp) 10.53 A Open Circuit Voltage (Voc) 46.59 V Short Circuit Current (Isc) 11.17 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2279x1134x35 mm Weight 27 kg Cell Size 182×182 mm Cell Number 144 Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 C

      Technology: PERC
      Power Range: 530 ~ 555 Wp
      Panel Efficiency: 20.51 ~ 21.48 %
      Weight: 27 kg
      Seller Name: Techwise Solar Technology Co., Ltd.
      Country: China
