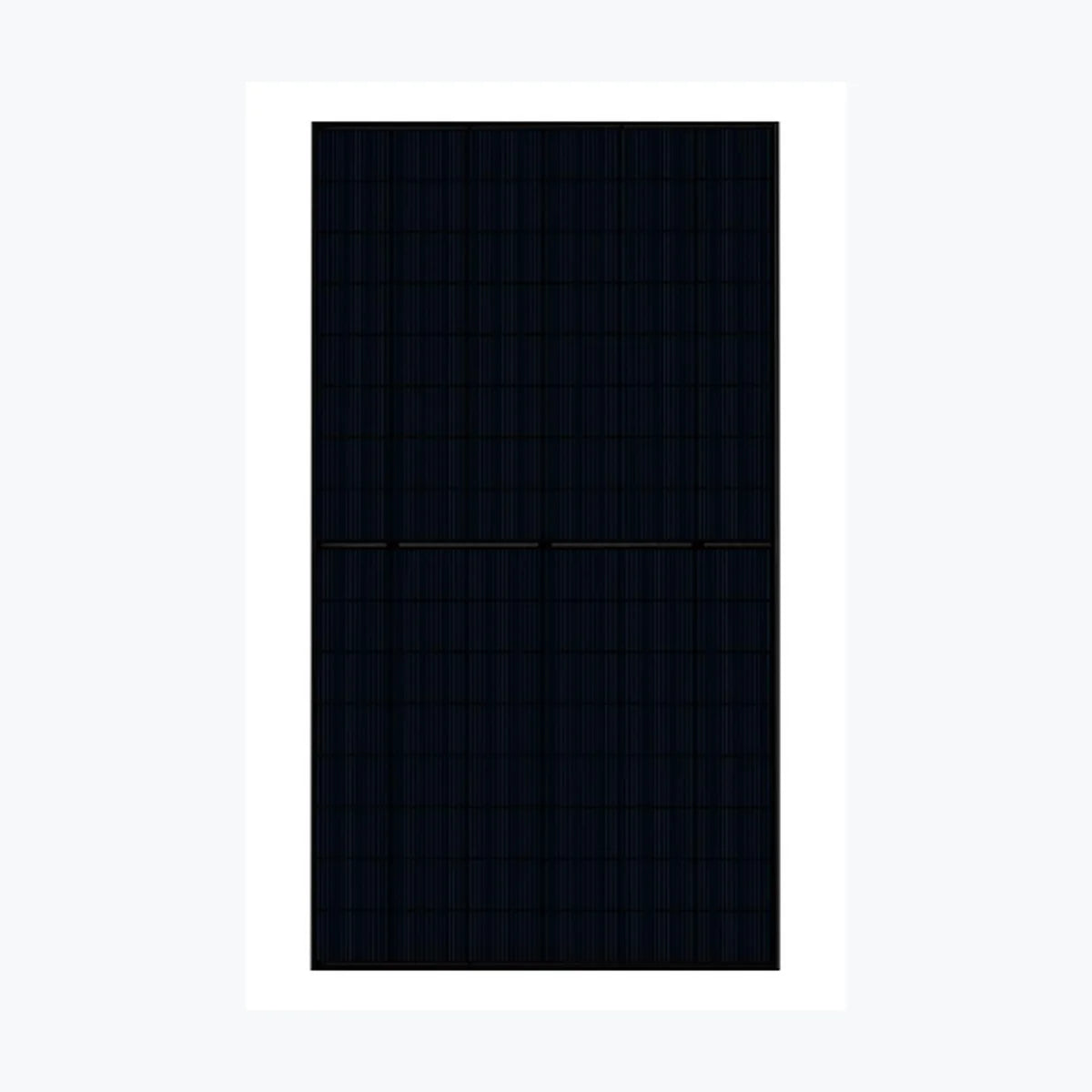

    UniteSol 525W

    UniteSol 525W

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-21902
    • Container price: $48.60 USD
    • Container qty: 720
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 525W Product Warranty 15 Years Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance -3 ~ +3 % Maximum Power (Pmax) 525 Wp Voltage at Maximum Power (Vmpp) 39.4 V Current at Maximum Power (Impp) 13.33 A Open Circuit Voltage (Voc) 46.8 V Short Circuit Current (Isc) 14.1 A Panel Efficiency 22.11 % Maximum Power (Pmax) 396 Wp Voltage at Maximum Power (Vmpp) 37.1 V Current at Maximum Power (Impp) 10.68 A Open Circuit Voltage (Voc) 44.5 V Short Circuit Current (Isc) 11.42 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2094x1134x30 mm Weight 25 kg Cell Size 182×91 mm Cell Number 132 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Prot

      Power Range: 510 ~ 525 Wp
      Panel Efficiency: 21.48 ~ 22.11 %
      Weight: 25 kg
      Seller Name: UniteSol Technology Co., Ltd.
      Country: China
