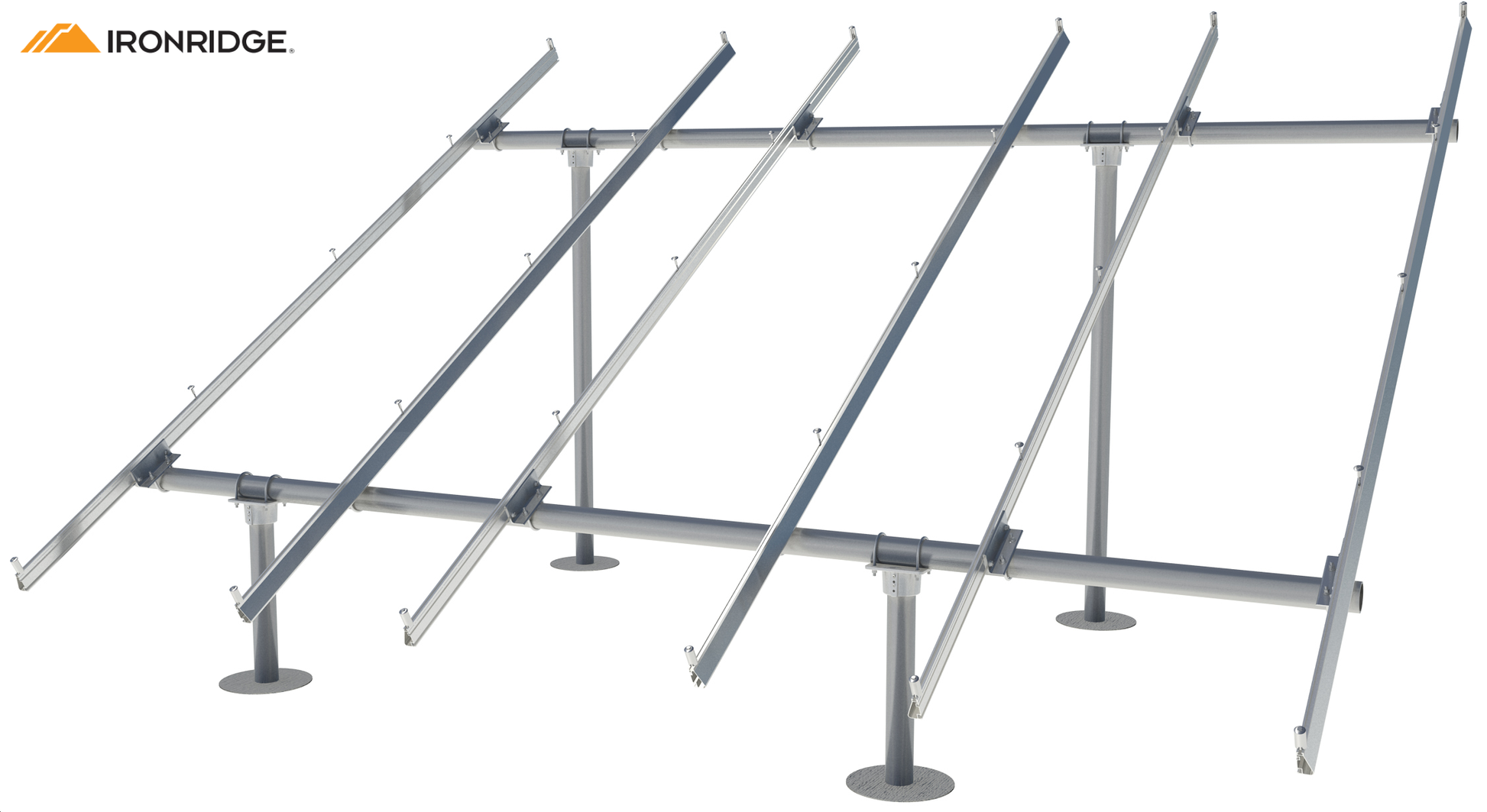

Racking Hardware Kit — 12-panel System
PayPal Pay in 4 interest-free payments of $225.31 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- RACKING_12PANEL
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for IronRidge. 50,000+ SKUs from 169 authorized brands.
Racking Hardware Kit — 12-panel System
Bundle Size: 12-panel | Tier: Standard | Components: 9
Save $47.43 (5% bundle discount) compared to buying components separately.
What's Included
| # | Component | Product | Vendor | SKU | Qty | Unit Price | Line Total |
|---|---|---|---|---|---|---|---|
| 1 | XR100 Mounting Rail — 168" (14 ft) | Ironridge XR RAIL 168 (14) Clear RAIL - XR-100-168A | IronRidge | PES-PA-REC-0490 | 8 | $56.78 | $454.24 |
| 2 | Universal Mid Clamp (bonding, black) | IronRidge Universal Mid Clamp QMR-UMC3045-B-20, 30-45mm, w/ Bonding, Black | IronRidge | USS-IRON-QMR-UMC3045 | 20 | $4.01 | $80.20 |
| 3 | Universal End Clamp (black) | IronRidge Universal End Clamp, 30-45mm, Black QMR-UEC3045-B-20 | IronRidge | USS-IRON-QMR-UEC3045 | 8 | $3.61 | $28.88 |
| 4 | UFO Slotted L-Foot (black) | Ironridge UFO Black Slotted L-foot - LFT-03-B1 | IronRidge | PES-PA-REC-0383 | 28 | $5.21 | $145.88 |
| 5 | Composition Shingle Flashing (black) | IronRidge Black Comp Shingle Flashing Domestic Content FLSH-01-B1-US (1pc) | IronRidge | USS-IRON-FLSH | 28 | $5.50 | $154.00 |
| 6 | XR100 Bonded Structural Splice | Ironridge Mill Bonded Structural Splice - XR100-BOSS-01-M1 | IronRidge | PES-PA-REC-0476 | 4 | $8.25 | $33.00 |
| 7 | UFO Grounding Lug | IRONRIDGE UFO Grounding Lug - XR-LUG-03-A1 | IronRidge | PES-PA-REC-0502 | 2 | $3.92 | $7.84 |
| 8 | XR100 End Caps (10 pairs) | IronRidge XR Rail XR-100-CAP01-B1 Black End Caps (10 Pairs) | IronRidge | USMS102-0001 | 1 | $29.71 | $29.71 |
| 9 | XR Wire Clips (bag of 20) | IronRidge XR Wire Clip Black for XR Rails – Bag of 20 | IronRidge | GAP-P2-IRONRIDGEXRWIRECLIPB | 1 | $14.91 | $14.91 |
| Component Total (retail) | $948.66 | ||||||
| Bundle Discount (5%) | −$47.43 | ||||||
| Kit Price | $901.23 | ||||||
What else you'll need
Roof-appropriate lag screws/structural screws for your rafter spacing; junction box & PV wire runs; conduit from array to inverter; your AHJ's permit and a licensed installer where required.
Specifications
- System Size: 12-panel
- Tier Level: Standard
- Component Count: 9 items
- Bundle Discount: 5% (save $47.43)
All components are sourced from the PES Supply catalog and are individually warrantied by their respective manufacturers. This kit bundle provides a complete solution for your installation needs.
| SKU | RACKING_12PANEL |
|---|---|
| Manufacturer | IronRidge |
| Bundle discount | |
| Kit components |
No documents available for this product. Contact us to request documentation.
