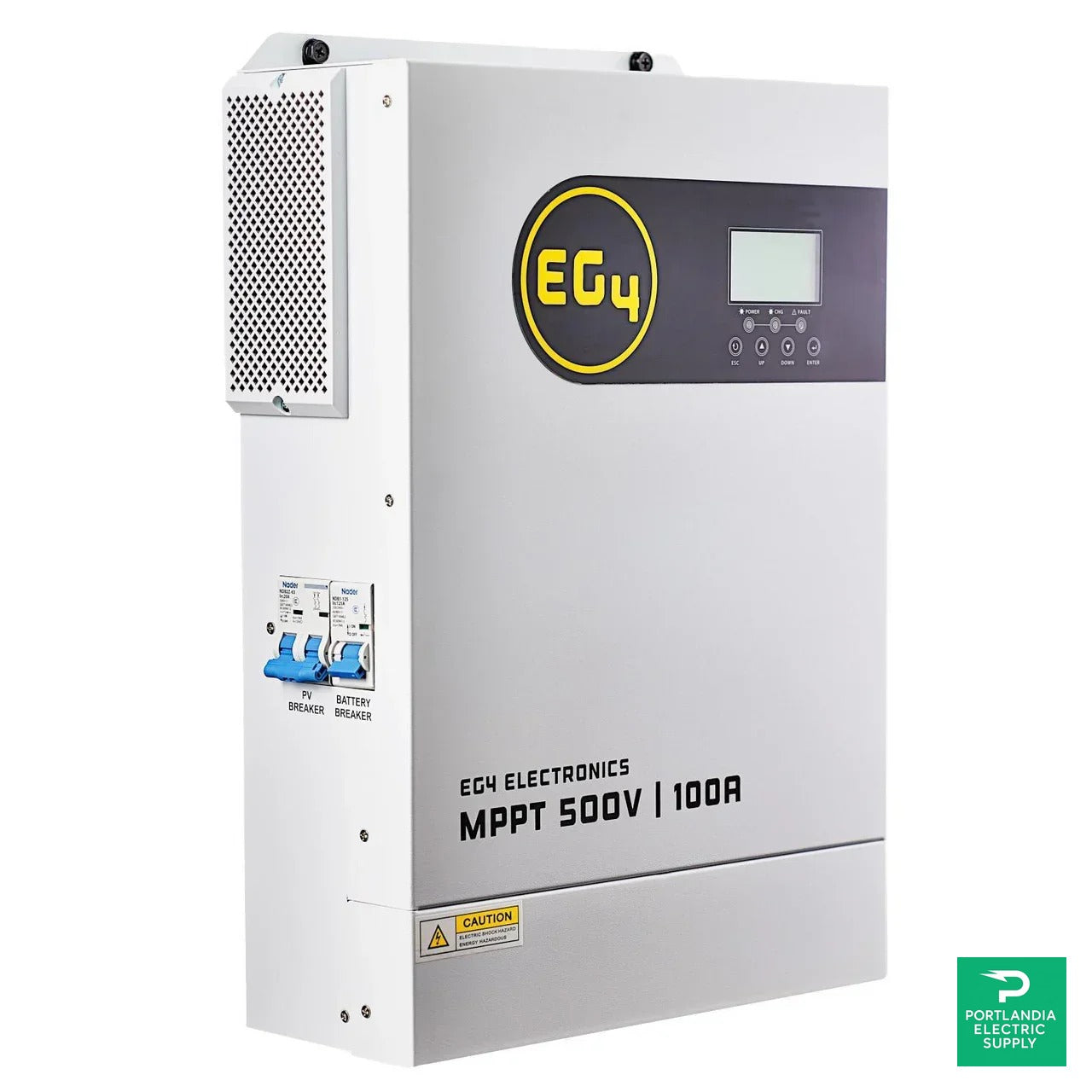

EG4 Electronics Solar MPPT100-48HV 100A Output Charge Controller
EG4 100A Output Charge Controller – High Voltage MPPT Solar Charging Solution
EG4 Electronics Solar MPPT100-48HV 100A Output Charge Controller
EG4 100A Output Charge Controller – High Voltage MPPT Solar Charging Solution
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

EG4 Electronics Solar MPPT100-48HV 100A Output Charge Controller

EG4 Electronics Solar MPPT100-48HV 100A Output Charge Controller

Trusted by 1,000s of Contractors & Installers
In Stock
SKU  PES-PA-ELC-1505
OEM Authorized Dealer BABA Compliant Full OEM Warranty 7-10 Business Day Delivery
$438.79 USD
$ $438.79 USD
Sale Sold out
/W
Your quantity 1 pcs
System size —
Est. order total —
Buying 5+ pallets or a truckload? Get a Volume Quote →
Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU
PES-PA-ELC-1505
MPN
EG4SCC500VDC100AMPPT

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone (888) 876-0007
phone Instant Live Chat
phone Mon-Fri 10am-6pm EST
View full details
EG4 Electronics Solar MPPT100-48HV 100A Output Charge Controller
EG4 Electronics Solar MPPT100-48HV 100A Output Charge Controller $438.79

Specifications

Amperage 100A
Product Category Charge Controller
Certifications
PES Supply | A PES Global Group Company

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

EG4 100A Output Charge Controller – High Voltage MPPT Performance with EG4 Reliability

Product Description:

Unlock the full potential of your solar energy system with the EG4 100A Output Charge Controller, engineered with advanced MPPT technology derived from the proven EG4 3kW All-in-One Solar Inverter. This unit offers a seamless balance of efficiency, affordability, and durability—making it an ideal solution for both residential and commercial solar setups.

The EG4 100A Output Charge Controller is designed to efficiently capture and convert solar power from your PV array, safely optimizing it for charging your 48V battery bank. With a maximum charging current of 100A, this controller can rapidly charge a 5.12kWh battery in approximately one hour, ensuring minimal downtime and maximum energy availability.

Thanks to its wide PV voltage input range, there's no need for external combiner boxes, and with a max open-circuit voltage of 500VDC, it can handle large PV arrays with ease. Built-in protection mechanisms—such as PV and battery breakers—ensure safe operation in all conditions.

Whether you're upgrading an existing installation or building a new system from the ground up, the EG4 100A Output Charge Controller is an essential component for maximizing solar efficiency and energy harvesting.

Key Features:

  • Maximum Power Point Tracking (MPPT) for optimal solar power conversion

  • 500VDC max open-circuit voltage allows for high-voltage PV arrays

  • Supports up to 5500W of usable solar array power with branch connectors

  • 22A max string current, perfect for high-output solar modules

  • Adjustable 0-100A charging current (default set to 80A)

  • Charges a 5.12kWh EG4 battery in ~1 hour at full 100A rate

  • 48V nominal battery support, with a charging voltage range of 48-62VDC

  • 94% maximum efficiency with low self-consumption (<25W)

  • Built-in DC disconnect and battery breakers for safety

  • Communicates with EG4 batteries via RS485 BMS port

Technical Specifications:







































Parameter Value
Product Name EG4 100A Output Charge Controller
MPPT Input Voltage Range Wide range – supports high-voltage arrays
Max PV Input Voltage 500VDC (open circuit)
Max PV Array Power 5500W (via 2 strings and branch connectors)
Max Charging Current 100A (adjustable, default: 80A)
Battery Voltage Support 48V nominal
Charging Voltage Range 48–62VDC (default: 56VDC)
Efficiency Up to 94%
Self-Consumption Less than 25W
Communication RS485 BMS with EG4 batteries
Protection Built-in PV disconnect and battery breakers

Why Choose the EG4 100A Output Charge Controller?

The EG4 100A Output Charge Controller provides industry-leading performance, advanced communication capabilities, and unbeatable value. It's built to meet the growing demands of today’s solar energy systems and ensures that your batteries are charged quickly, efficiently, and safely.

If you're looking to enhance your solar setup with a smart, powerful, and dependable MPPT solution, the EG4 100A Output Charge Controller is your go-to choice.
