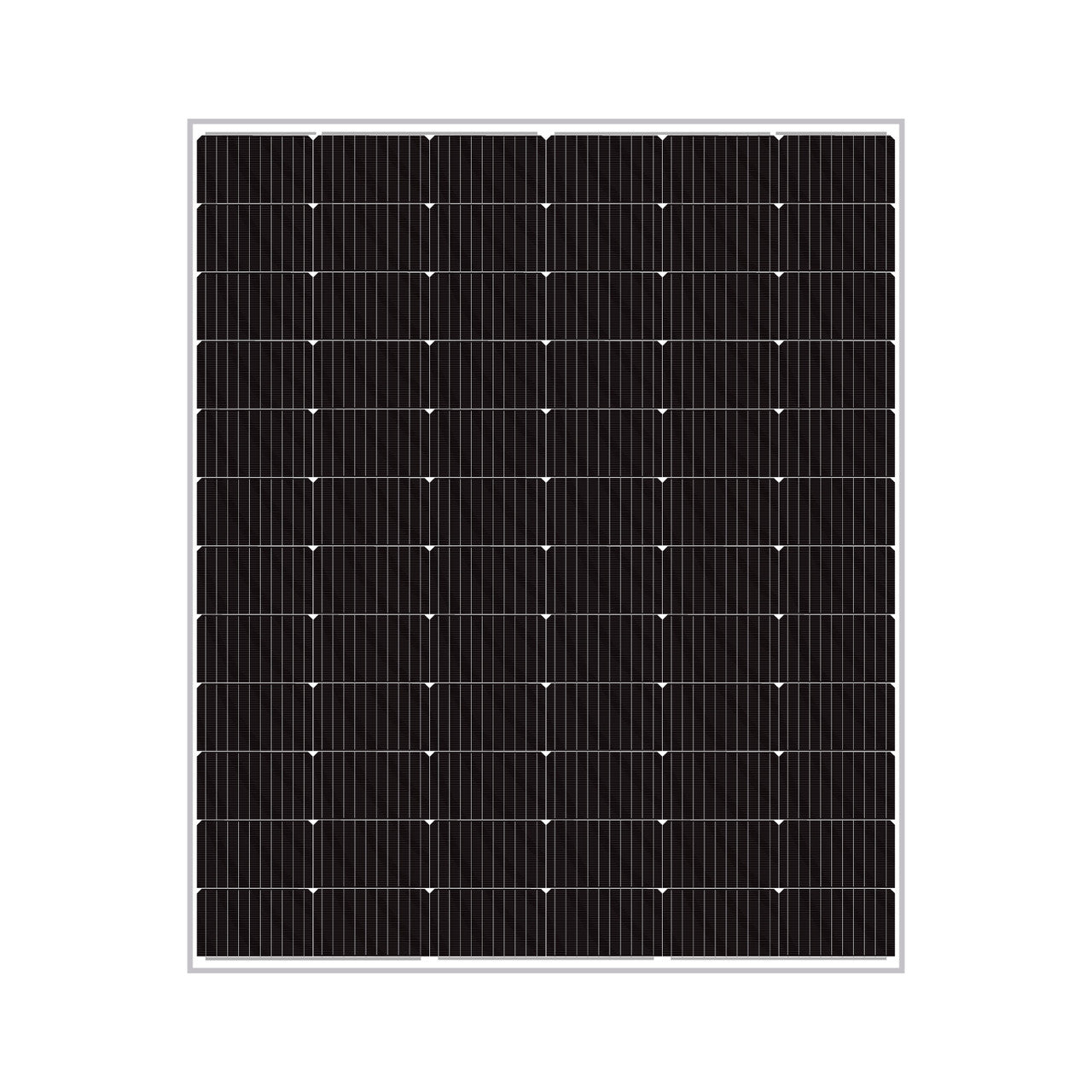

Goldi Solar GS10-M108-WF 410W Monocrystalline PERC Solar Panel
Model GS10-M108-WF | PERC | 108 Cells | Monocrystalline | 1500V System Voltage
Product Overview
The Goldi Solar GS10-M108-WF is a high-efficiency 410W monocrystalline PERC solar panel designed for dependable energy production. It combines strong output, solid durability, and excellent low-light response for modern residential and commercial installations. The module uses 108 cells and delivers a compact footprint that supports efficient rooftop planning. Its positive power tolerance and durable construction help ensure stable performance over time. With a 12-year product warranty and 25-year power warranty, this panel is built for long-term value and reliable solar generation.
Key Benefits
High power output: The module delivers up to 410Wp for strong daily energy production.
Excellent efficiency: With 20.92% efficiency, it converts sunlight effectively in limited roof space.
Reliable PERC technology: The PERC design improves performance and supports better energy capture.
Durable construction: Tempered glass, anodized aluminium, and IP68 protection improve long-term reliability.
Strong warranty support: A 12-year product warranty and 25-year power warranty add confidence.
How It Works
This solar panel converts sunlight into usable electricity through monocrystalline PERC cells. The cells absorb incoming light and generate direct current for the inverter. The panel structure is designed to reduce energy loss and support consistent output across varying weather conditions. Its anti-reflection glass and textured surface help improve light capture. The module also performs well under partial sunlight, which supports steadier generation throughout the day. Its electrical design and temperature characteristics help maintain dependable production in warm climates.
PERC cell conversion: The monocrystalline PERC cells absorb sunlight and produce DC power efficiently. This process supports strong output from a compact module size.
Low-light performance: The textured glass and cell surface help the panel work well in weak sunlight. This improves generation during cloudy mornings and evenings.
System integration: The panel sends stable electrical output to the inverter and balance-of-system equipment. Its 1500V system rating supports modern solar installations.
Technical Specifications
| Brand | Goldi Solar Pvt Ltd |
| Model Number | GS10-M108-WF |
| Technology | PERC |
| Cell Type | Monocrystalline silicon |
| Cell Count | 108 cells |
| Power Range | 390 to 415 Wp |
| Maximum Power | 410 Wp |
| Power Tolerance | 0 to +2% |
| Module Efficiency | 19.9 to 21.17% |
| Voltage at Maximum Power | 31.44 V |
| Current at Maximum Power | 13.05 A |
| Open Circuit Voltage | 37.2 V |
| Short Circuit Current | 13.53 A |
| NMOT | 45±2 °C |
| Operating Temperature Range | -40 to 85 °C |
| Temperature Coefficient of Pmax | -0.35%/°C |
| Temperature Coefficient of Voc | -0.28%/°C |
| Temperature Coefficient of Isc | 0.048%/°C |
| Maximum System Voltage | 1500 V |
| Series Fuse Rating | 25 A |
| Dimensions | 1730 x 1133 x 35 mm |
| Weight | 21 kg |
| Glass Type | Anti-reflection coating, tempered glass |
| Glass Thickness | 3.2 mm |
| Frame Type | Anodized aluminium |
| Junction Box | IP68, 3 diodes |
| Application Class | Class A |
| Electrical Safety Class | Class II |
| Fire Safety Class | Class C |
| Surface Load | Snow load 5400 Pa, wind load 2400 Pa |
| Connectors | MC4 type |
Certifications & Compliance
Certifications: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018
Inverter Compatibility: Suitable for modern grid-tied and hybrid solar systems.
Environmental: Built for -40 to 85 °C operation with strong wind and snow load resistance.
Warranty: 12 years on materials and processing, plus 25 years linear power output warranty.
