Trina Solar (410W) Monocrystalline Solar Panel - TSM-410DEG15MC.20(II)
Trina Solar (410W) Monocrystalline Solar Panel - TSM-410DEG15MC.20(II)
$0.5/watt
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SPL-0026
- Brands: Trina Solar
- Documents:
- Height: 3
- Length: 202.4
- Panel wattage: 410
-
Technology:
- Bifacial
- Half-Cell
Product Description
-

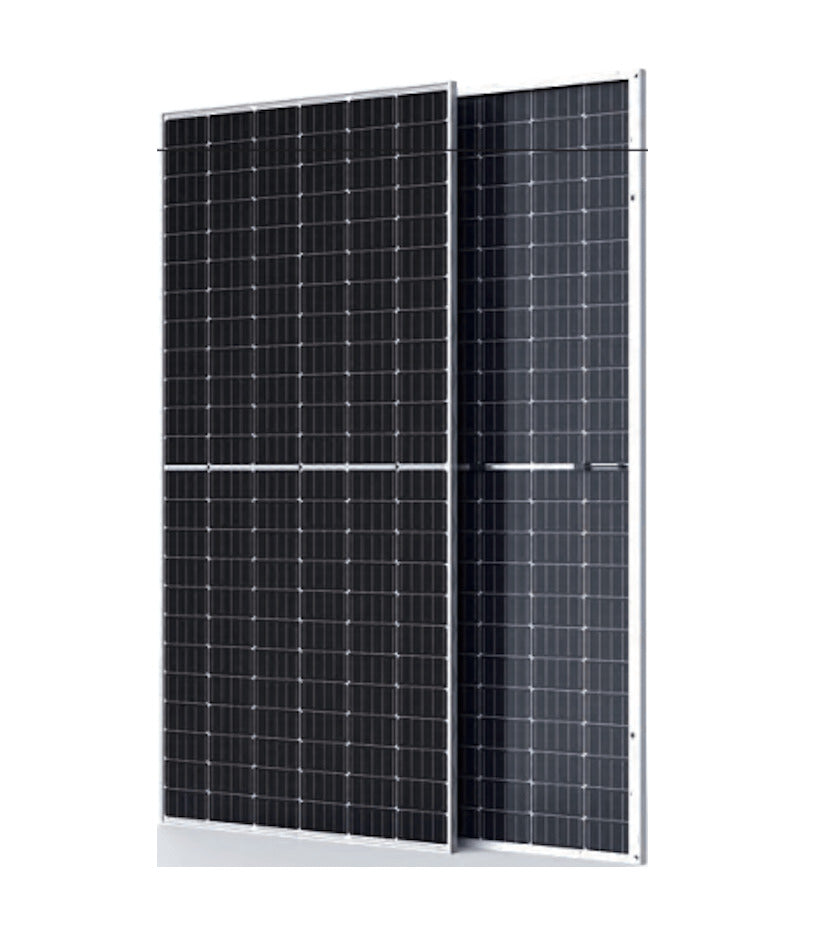

Trina Solar TSM-410DEG15MC.20(II) Monocrystalline Solar Panel
The Trina Solar TSM-410DEG15MC.20(II) monocrystalline solar panel is engineered to deliver high energy output with efficient performance. Designed for various applications, this panel is an ideal solution for maximizing space and reducing Balance of System (BOS) costs. Trusted worldwide, Trina Solar ensures each module provides exceptional quality and reliability to meet diverse energy needs.
Product Features
High Power Output
Delivering up to 410W, the TSM-410DEG15MC.20(II) panel boosts energy generation, ensuring exceptional efficiency for solar installations.
Advanced Bifacial Technology
With the ability to harness energy from both sides, this module provides up to a 25% additional power gain based on the reflective surroundings.
Superior Durability
Constructed with dual glass and multi busbar technology, it promises long-term reliability and diminishes module degradation over time.
Optimized Design
The unique J-box design minimizes shading on the back, promoting optimal performance in diverse environmental conditions.
Wide Application Versatility
Perfect for ground-mounted utility, agricultural projects, and more, ensuring compatibility with major tracker systems and installation methods.
How It Works
Trina Solar's bifacial modules utilize advanced technology to capture sunlight from both sides, enhancing energy generation and efficiency compared to conventional panels.
Dual Glass System
Enhances durability and energy capture by using two layers of glass, improving heat retention and resistance to environmental factors.
Multi Busbar (MBB) Layout
Reduces electrical resistance and enhances current distribution, contributing to higher efficiency and power output.
Half-Cell Technology
Minimizes power loss from shading and increases module resilience, ensuring consistent performance in partial shade conditions.
Specifications
Peak Power Watts-PMAX 385-410W Module Efficiency Up to 20.5% Maximum System Voltage 1500V DC Temperature Coefficient of PMAX -0.37%/°C Nominal Operating Temperature (NMOT) 41°C ±3°C Dimensions 2031 × 1011 × 30mm Weight 31.4 kg IP Rating IP 68 Construction Monocrystalline, 144 cells Module Warranty 30-year linear power warranty -
