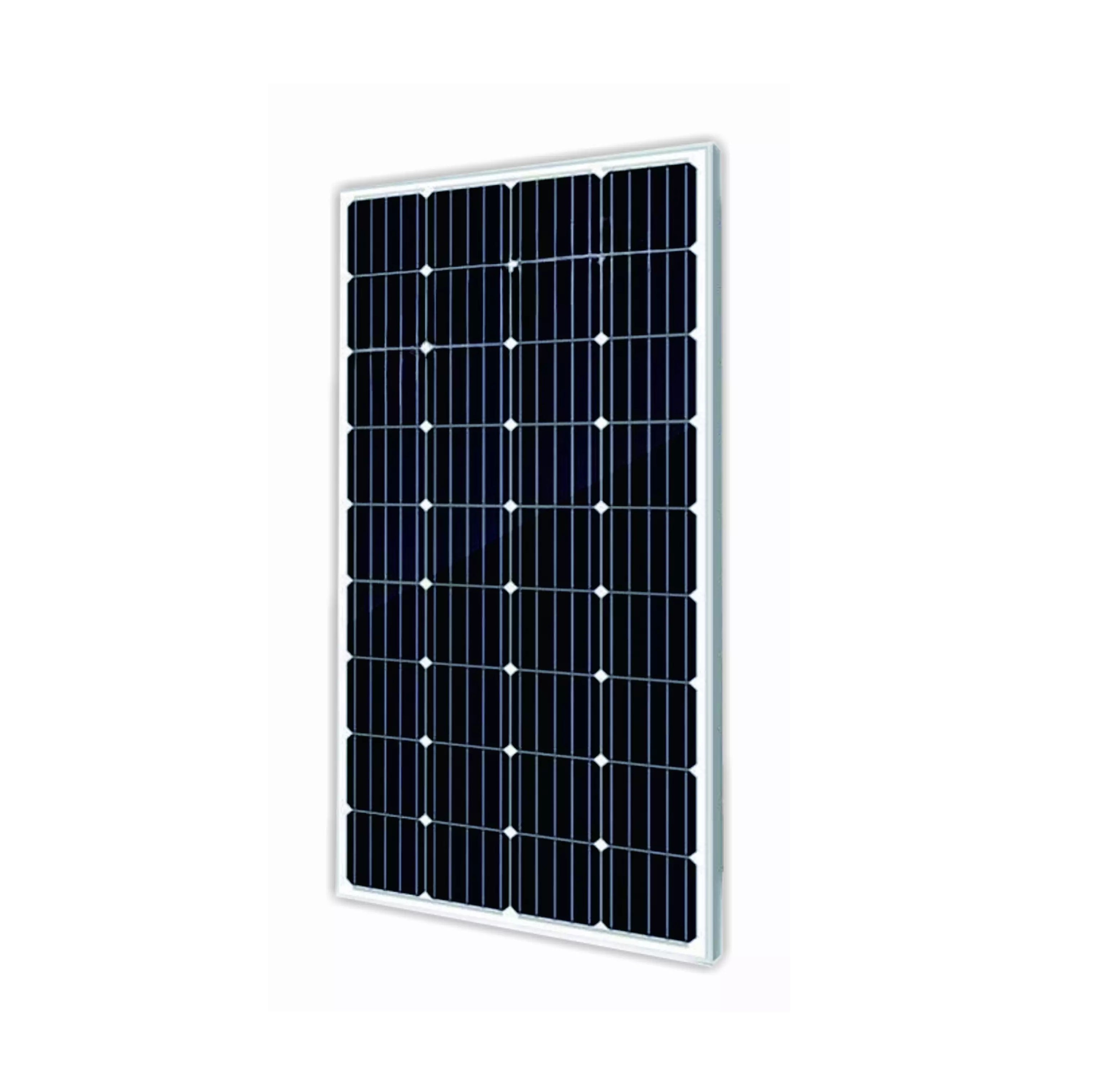

Pattern New Energy 185 185W Monocrystalline Solar Panel

Model No. 185 | Monocrystalline | 36 Cells | Mono | 1500V System Voltage

185 Wp
Max Power Output
18.14%
Module Efficiency
36
Mono Cells

Product Overview

The Pattern New Energy 185W Monocrystalline Solar Panel is built for reliable daily power generation. It uses monocrystalline cells for strong energy conversion and stable performance. The module delivers a maximum output of 185 Wp and a panel efficiency of 18.14 percent. Its positive power tolerance helps support dependable output in real installations. This panel suits compact off-grid systems, small home energy setups, and other space-conscious applications. The durable construction also supports long-term outdoor use. With a 1500V maximum system voltage, it fits modern solar designs. Its 36-cell layout helps balance voltage and current for practical system integration.

Key Benefits

Reliable Output: The module provides 185 Wp of maximum power for consistent energy production.

Efficient Design: Its 18.14 percent efficiency helps convert sunlight into usable electricity effectively.

Positive Tolerance: The 0 to +1.5 percent power tolerance supports dependable performance from the panel.

Durable Build: Tempered glass and an anodized aluminium frame improve protection in outdoor conditions.

Easy System Integration: MC4 connectors and a 900 mm cable length simplify installation and wiring.

How It Works

This monocrystalline solar panel converts sunlight into direct current electricity through photovoltaic cells. The 36-cell structure helps generate stable electrical output for compatible systems. The panel performs best when installed with proper sun exposure and secure mounting. Its electrical design supports balanced voltage and current delivery across the module. The tempered glass front protects the cells while allowing sunlight to pass through efficiently. The anodized aluminium frame adds structural strength during installation and long-term use. With MC4 connectors, the panel can be connected quickly to compatible solar equipment. The IP67 junction box protection helps support safer operation in demanding environments.

Photovoltaic Conversion: Sunlight strikes the monocrystalline cells and is converted into usable electricity. This process begins as soon as the module receives sufficient daylight.

Electrical Output Delivery: The module generates voltage and current at maximum power points for system use. These values help match the panel to charge controllers and inverters.

Protected Field Operation: Tempered glass, IP67 protection, and a strong frame support dependable outdoor performance. These components help the panel withstand regular environmental exposure.

Technical Specifications

Brand Pattern New Energy
Model Number No. 185
Technology Monocrystalline
Maximum Power 185 Wp
Power Tolerance 0 ~ +1.5 %
Voltage at Maximum Power 20.02 V
Current at Maximum Power 9.26 A
Open Circuit Voltage 23.9 V
Short Circuit Current 9.82 A
Panel Efficiency 18.14 %
Temperature 45±2 °C
Operating Temperature Range -45 to 85 °C
Temperature Coefficient of Pmax -0.396 %/°C
Temperature Coefficient of Voc -0.31 %/°C
Temperature Coefficient of Isc 0.06 %/°C
Maximum System Voltage 1500 V
Series Fuse Rating 15 A
Panel Dimension 1500 x 680 x 30 mm
Weight 10.9 kg
Cell Size 158.75 × 158.75 mm
Cell Number 36
Glass Type Tempered Glass
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium
Junction Box Protection Class IP 67
Connector Type MC4
Cable Length 900 mm
Power Range 180 ~ 200 Wp
Efficiency Range 17.65 ~ 19.61 %
Seller Name Guangdong Pattern New Energy Co., Ltd.
Country China

Certifications & Compliance

Certifications: Not provided in the input data.
Inverter Compatibility: Suitable for compatible solar charge controllers and inverters within system limits.
Environmental: Built with tempered glass, IP67 junction box protection, and an anodized aluminium frame.
Warranty: Not provided in the input data.

● Available | Contact us for lead time and pricing
