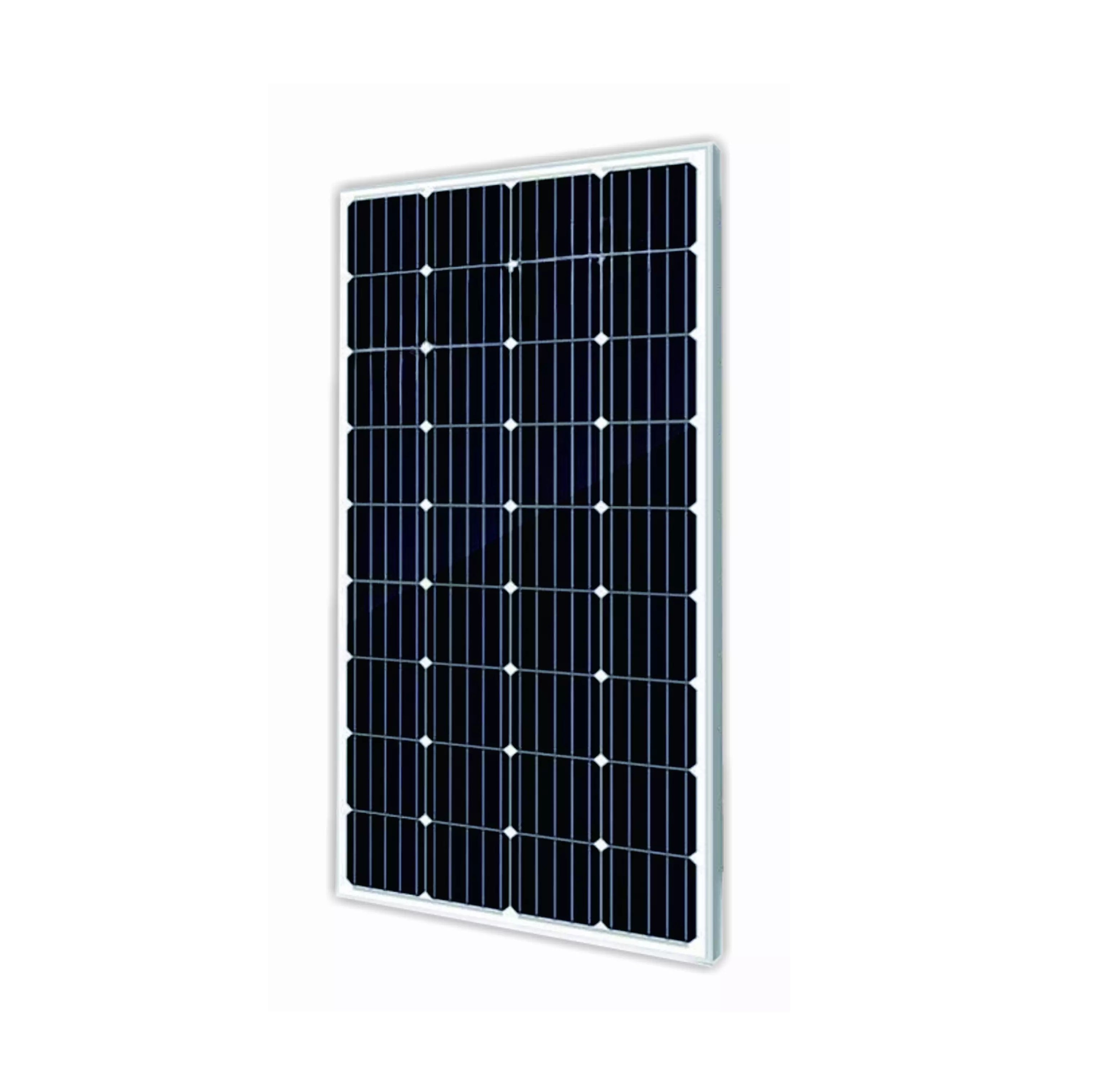

Pattern New Energy 190W Monocrystalline Solar Panel

Model 190 | Monocrystalline | 36 Cells | Monocrystalline | 1500V System Voltage

190 Wp
Max Power Output
18.63%
Module Efficiency
36
Monocrystalline Cells

Product Overview

The Pattern New Energy 190W Monocrystalline Solar Panel delivers reliable output in a compact format. It is built for efficient energy harvesting across many off-grid and mobile applications. The module uses monocrystalline cells for strong performance and dependable daily generation. Its 18.63% efficiency supports better space use on rooftops and compact installations. The positive power tolerance helps maintain stable output under real operating conditions. This panel suits users who need a durable, practical, and high-performing solar solution. The 36-cell layout supports balanced electrical characteristics. Its lightweight 10.9 kg design also simplifies handling and mounting.

Key Benefits

High Efficiency Output: The module reaches 18.63% efficiency for improved power generation in limited space.

Positive Power Tolerance: A tolerance of 0 to +1.5% supports dependable rated performance.

Durable Construction: Tempered glass, anodized aluminium, and IP67 protection improve long-term reliability.

Broad Application Range: The panel is suitable for varied solar setups that need compact, steady output.

Easy Handling: A 10.9 kg weight and 1500 x 680 x 30 mm size support easier installation.

How It Works

This monocrystalline solar panel converts sunlight into direct current electricity through its 36-cell module design. The cells capture solar energy and convert it into usable power for connected equipment. Its electrical values support stable charging and efficient energy transfer under standard test conditions. The panel operates across a wide temperature range, which supports consistent use in demanding environments. Tempered glass protects the cell surface from daily exposure. The anodized aluminium frame adds structural strength. IP67 junction box protection helps shield internal connections from dust and water ingress. Together, these features support dependable solar generation in practical installations.

Sunlight Conversion: Monocrystalline cells absorb sunlight and produce electrical current. This creates direct current power for solar systems.

Voltage and Current Balance: The module delivers defined Vmpp, Impp, Voc, and Isc values. These ratings help support stable operating performance.

Protected Power Delivery: The junction box, glass, and frame work together for durability. This helps maintain output during regular outdoor use.

Technical Specifications

Technology Monocrystalline
Model Number 190
Power Tolerance 0 ~ +1.5%
Maximum Power (Pmax) 190 Wp
Voltage at Maximum Power (Vmpp) 20.34 V
Current at Maximum Power (Impp) 9.35 A
Open Circuit Voltage (Voc) 24.08 V
Short Circuit Current (Isc) 9.82 A
Panel Efficiency 18.63%
Temperature 45±2 °C
Operating Temperature Range -45 to 85 °C
Temperature Coefficient of Pmax -0.396 %/°C
Temperature Coefficient of Voc -0.31 %/°C
Temperature Coefficient of Isc 0.06 %/°C
Maximum System Voltage 1500 V
Series Fuse Rating 15 A
Panel Dimensions 1500 x 680 x 30 mm
Weight 10.9 kg
Cell Size 158.75 × 158.75 mm
Cell Number 36
Glass Type Tempered Glass
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium
Junction Box Protection Class IP67
Connector Type MC4
Cable Length 900 mm
Power Range 180 ~ 200 Wp
Panel Efficiency Range 17.65 ~ 19.61%
Seller Name Guangdong Pattern New Energy Co., Ltd.
Country of Origin China

Certifications & Compliance

Certifications: Not specified in the provided product data.
Inverter Compatibility: Suitable for solar systems using MC4 connections and compatible charge controllers.
Environmental: IP67 junction box protection, tempered glass, and anodized aluminium frame support outdoor use.
Warranty: Warranty information was not provided in the source content.

● Available | Contact us for lead time and pricing
