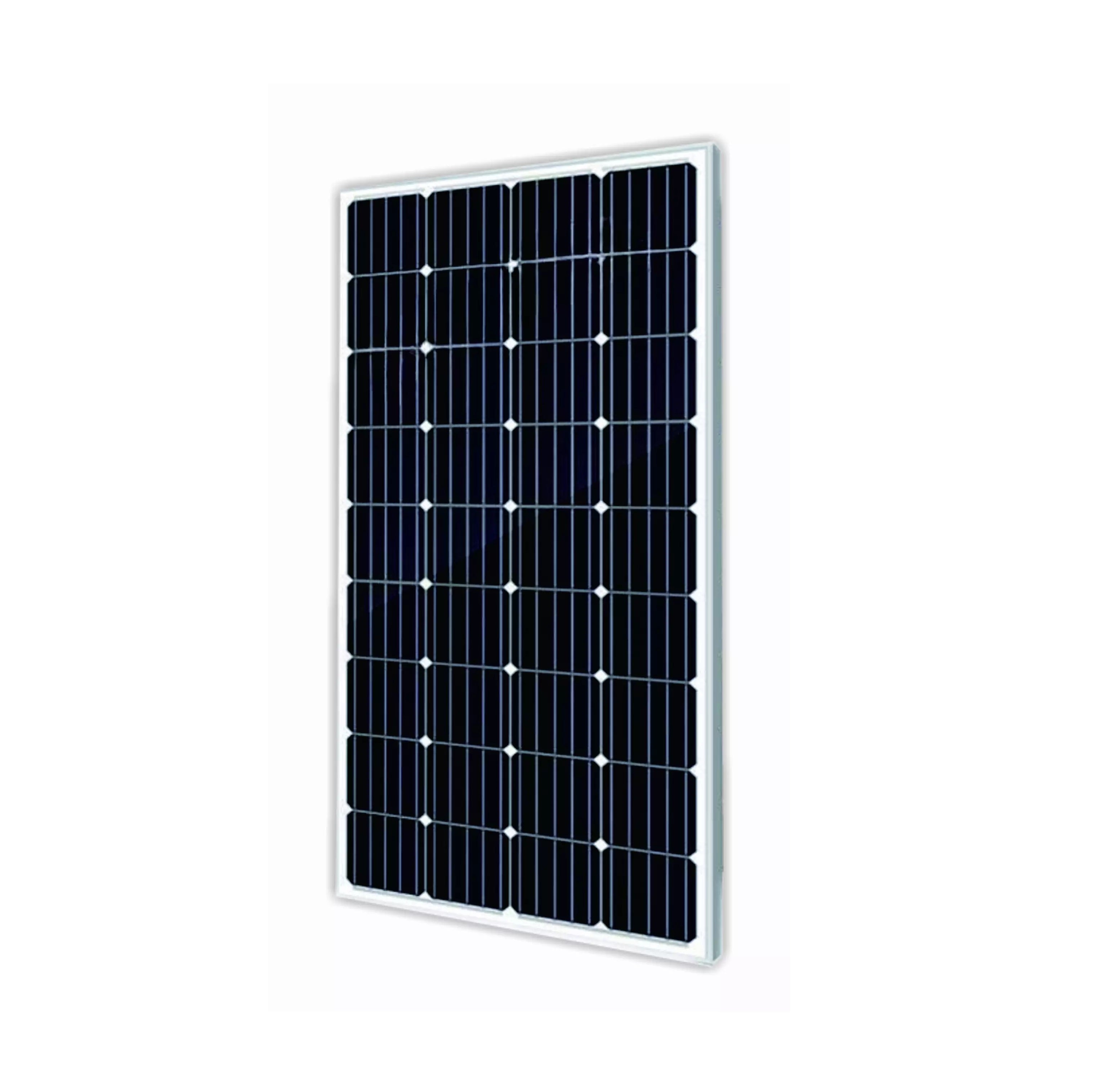

Pattern New Energy 195W Monocrystalline Solar Panel

Model 195 | Monocrystalline | 36 Cells | Mono | 1500V System Voltage

195 Wp
Max Power Output
19.12%
Module Efficiency
36
Monocrystalline Cells

Product Overview

The Pattern New Energy 195W monocrystalline solar panel is built for efficient power generation in compact installations. It combines a strong 36-cell layout with reliable module construction, making it suitable for many on-grid and off-grid projects. With a 195Wp maximum output and 19.12% panel efficiency, it delivers dependable performance in a practical size. The positive power tolerance supports stable results, while the anodized aluminium frame and tempered glass improve durability. This module is designed for buyers who need solid energy output, long service life, and easy system integration.

Key Benefits

High Energy Output: The module is rated at 195Wp for strong daily power production.

Efficient Monocrystalline Design: Monocrystalline cells help support higher efficiency and better space usage.

Positive Power Tolerance: A tolerance of 0 to +1.5% helps maintain dependable rated output.

Durable Construction: Tempered glass, anodized aluminium, and IP67 protection improve outdoor resilience.

Versatile System Fit: The 1500V maximum system voltage supports flexible solar system design.

How It Works

This solar panel converts sunlight into usable electrical power through monocrystalline silicon cells. The 36-cell arrangement produces a balanced electrical profile for compact solar systems. At maximum power, the module operates at 20.65V and 9.45A, which supports efficient energy delivery under standard test conditions. Its open-circuit voltage and short-circuit current help define safe system sizing and controller selection. The panel also performs across a wide temperature range, which supports steady operation in changing climates. The frame, glass, junction box, and connectors are designed to protect the electrical components and simplify installation.

Sunlight Conversion: Monocrystalline cells absorb sunlight and convert it into direct current electricity. This allows the panel to generate power for solar applications efficiently.

Electrical Output Delivery: The module delivers 195Wp at maximum power with a measured Vmpp of 20.65V and Impp of 9.45A. These values help match the panel to compatible inverters and charge controllers.

System Protection and Integration: The IP67 junction box and MC4 connector support safer field connections. The 900mm cable length also helps with straightforward installation and system layout.

Technical Specifications

Brand Pattern New Energy
Model Number 195
Technology Monocrystalline
Maximum Power 195 Wp
Power Tolerance 0 ~ +1.5%
Voltage at Maximum Power 20.65 V
Current at Maximum Power 9.45 A
Open Circuit Voltage 24.3 V
Short Circuit Current 9.93 A
Panel Efficiency 19.12%
Additional Power Rating 145.52 Wp
Additional Vmpp 19.31 V
Additional Impp 7.63 A
Additional Voc 22.65 V
Additional Isc 7.95 A
Operating Temperature Range -45 to 85 °C
Temperature at Measurement 45±2 °C
Temperature Coefficient of Pmax -0.396 %/°C
Temperature Coefficient of Voc -0.31 %/°C
Temperature Coefficient of Isc 0.06 %/°C
Maximum System Voltage 1500 V
Series Fuse Rating 15 A
Panel Dimension 1500 x 680 x 30 mm
Weight 10.9 kg
Cell Size 158.75 × 158.75 mm
Cell Number 36
Glass Type Tempered Glass
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium
Junction Box Protection IP67
Connector Type MC4
Cable Length 900 mm
Power Range 180 to 200 Wp
Efficiency Range 17.65 to 19.61%
Seller Name Guangdong Pattern New Energy Co., Ltd.
Country of Origin China

Certifications & Compliance

Certifications: Not provided in the supplied data.
Inverter Compatibility: Suitable for compatible solar systems with 1500V maximum system voltage.
Environmental: IP67 junction box protection and -45 to 85 °C operating temperature range.
Warranty: Warranty details were not provided in the supplied data.

● Available | Contact us for lead time and pricing
