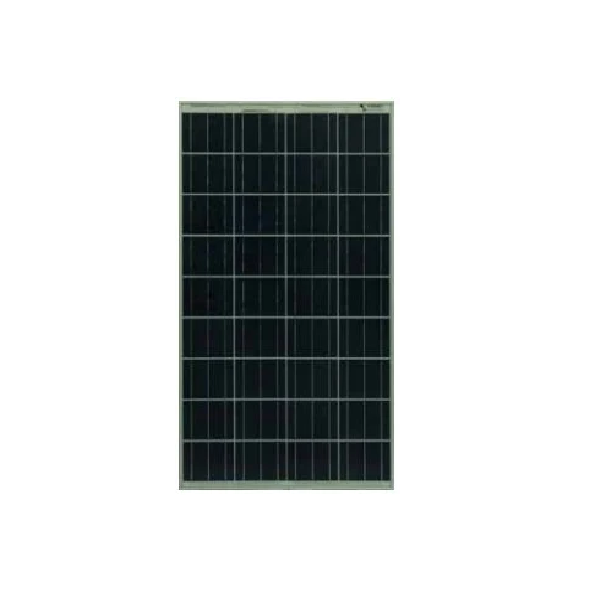

Photon Energy Systems PM0145
Photon Energy Systems PM0145
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Trusted by 1,000s of Contractors & Installers
In Stock
SKU  PES-SPS-SOL-14242

Photon Energy Systems PM0145

Photon Energy Systems PM0145

OEM Authorized Dealer BABA Compliant Full OEM Warranty 7-10 Business Day Delivery

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone (888) 876-0007
phone Instant Live Chat
phone Mon-Fri 10am-6pm EST
View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Photon Energy Systems PM0145 145W Polycrystalline 36-Cell Solar Panel

Model PM0145 | Polycrystalline | 36 Full-Cell 156 x 156 mm | Monofacial | 1000V System Voltage

145 W
Max Power Output
14.9%
Module Efficiency
36
Polycrystalline Cells

Product Overview

The Photon Energy Systems PM0145 polycrystalline solar panel delivers reliable 145W power output in a compact 36 cell format. This Photon Energy Systems PM0145 module is designed for off grid, hybrid and small rooftop installations where dependable energy production is essential. It uses proven multi crystalline cells with a panel efficiency of 14.9 percent, giving strong performance in varied Indian and global climates. With a robust anodized aluminium frame and 3.2 mm tempered glass, the panel withstands harsh weather and demanding field conditions. The module operates from minus 40 to plus 85 degrees Celsius and supports system voltages up to 1000 volts. A 10 year product warranty and long term power warranty help protect your investment over decades. This model sits within the 145 to 160 watt series, allowing easy system sizing for residential, commercial, rural and microgrid projects. Its 12 kilogram weight and slim 42 millimetre depth simplify handling, mounting and ongoing maintenance on most structures.

Key Benefits

Proven polycrystalline technology: Multi crystalline cells provide stable energy yield and dependable performance over many years of operation.

Compact 36 cell design: The 1490 x 655 mm footprint suits smaller rooftops, sheds, telecom towers and off grid systems.

Durable construction for harsh sites: An anodized aluminium frame, PET backsheet and toughened glass help resist corrosion, impact and long term weathering.

Strong electrical performance: Tight power tolerance of minus two to plus two percent supports accurate array design and predictable system output.

Versatile application range: Suitable for residential rooftops, commercial installations, rural microgrids and industrial battery charging systems in India and abroad.

Backed by an established manufacturer: Photon Energy Systems has decades of experience and has supplied megawatts of modules across large projects.

How It Works

The PM0145 module converts sunlight into clean direct current power through its 36 interconnected polycrystalline cells. Each 156 by 156 millimetre cell generates voltage when exposed to light, and the cells are wired to deliver a practical operating voltage near 18.47 volts at maximum power. The tempered low iron glass admits high levels of solar irradiance while protecting the cell matrix from impact and moisture. Encapsulant EVA securely bonds the cells to the PET backsheet and frame, maintaining alignment and insulation over time. Radox connectors and one metre DC cables allow simple series or parallel wiring into strings that feed a charge controller or inverter. By following correct design practices, the panel becomes part of a system that charges batteries or supplies AC power for homes and businesses. Protection features like bypass diodes in the junction box help reduce power loss when some cells experience shading or dirt. This design enables consistent daily energy harvest in diverse weather conditions.

Light capture and energy conversion: Sunlight passes through the 3.2 millimetre textured toughened glass and strikes the multi crystalline cells. The cells create an electric field that releases electrons, producing DC power with a rated maximum of 145 watts under STC.

Current flow and protection: Cells are interconnected to reach the specified voltage and current levels, including 7.87 amps at maximum power. Three bypass diodes inside the IP67 junction box limit power loss from partial shading and help protect the cells from hot spots.

System integration and use: The panel connects through Radox solar connectors and one metre leads to other modules, a charge controller or an inverter. Arrays can support off grid batteries, hybrid inverters or grid connected systems, delivering dependable power for many applications.

Technical Specifications

Brand Photon Energy Systems Limited
Model Number PM0145
Technology / Cell Type Polycrystalline (Multi Crystalline) silicon
Nominal Power (Pmax) 145 Wp at STC
Power Range Series 145 to 160 Wp (PM0145–0160–36 series)
Power Tolerance −2% to +2%
Module Efficiency 14.9% (series up to 15.9%)
Voltage at Maximum Power (Vmpp) 18.47 V
Current at Maximum Power (Impp) 7.87 A
Open Circuit Voltage (Voc) 22.01 V
Short Circuit Current (Isc) 8.46 A
Operating Temperature Range −40°C to +85°C
Maximum System Voltage 1000 V DC
Maximum Series Fuse Rating 15 A
Maximum Static Load (Wind / Snow) 5400 Pa (113 psf)
Total Degradation Rate 0.8% per year (typical series representation)
Power Warranty Levels 90% up to 10 years, 80% up to 25 years
Panel Dimensions (H x W x D) 1490 x 655 x 42 mm
Approximate Module Area 0.98 m²
Weight 12 kg
Cell Size and Count 36 cells, 156 x 156 mm each
Glass Type and Thickness 3.2 mm tempered low iron textured toughened glass
Frame Material Silver or white anodized aluminium channel
Encapsulant Material EVA (Ethylene Vinyl Acetate)
Backsheet Type PET backside sheet
Junction Box Solar Box RH3, IP67, with three bypass diodes
Connector Type and Cable Length Radox solar connectors with 1000 mm cables
Seller Name / Country Photon Energy Systems Ltd, India

Certifications & Compliance

Certifications: Manufactured in a certified facility with ISO 9001 and ISO 14001 quality and environmental systems, with module safety and performance approvals available on request.
Inverter Compatibility: Compatible with most 12V and 24V MPPT or PWM charge controllers and string inverters designed for 1000V DC PV arrays, when configured to manufacturer guidelines.
Environmental: Designed for outdoor use with IP67 junction box, 5400 Pa mechanical load rating and operating range from −40°C to +85°C for diverse climates.
Warranty: 10 year limited product warranty against manufacturing defects, plus linear power warranty targeting 90% of rated output at 10 years and 80% of rated output at 25 years, subject to Photon Energy Systems terms and conditions.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
