Model PM0150 | Polycrystalline Silicon | 36 Full Cells 156×156 mm | Monofacial | 1000V System Voltage

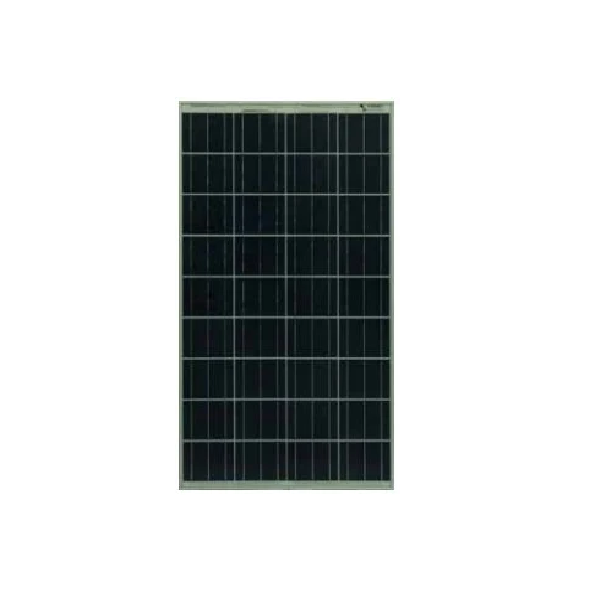

The Photon Energy Systems PM0150 150W polycrystalline solar panel is a reliable choice for small to medium off‑grid and grid‑support applications. This compact 36‑cell module delivers up to 150 watts of power with a module efficiency of 15.4 percent, making it suitable for rooftops, farms, telecom sites, and remote power systems. Designed and manufactured in India by Photon Energy Systems Limited, the panel combines robust mechanical construction with stable electrical performance. A toughened low‑iron glass front, EVA encapsulation, and a durable PET backsheet help protect the solar cells in demanding outdoor conditions. The anodized aluminium frame, IP67 junction box, and quality Radox connectors are used to support long service life and hassle‑free installation. With a 10‑year product warranty and a 25‑year power output guarantee, this polycrystalline module offers dependable energy generation and long‑term value.
Balanced power and size: With a rated output of 150 watts, this module fits smaller rooftops, telecom shelters, and off‑grid systems where space is limited but reliable generation is essential.
Proven polycrystalline technology: Multi‑crystalline cells provide consistent performance in a range of climates. The 36‑cell configuration supports standard 12V and 24V system designs through appropriate charge controllers.
Durable construction for harsh sites: Tempered 3.2 mm low‑iron glass, EVA encapsulation, and a PET backsheet protect the cells against weather, dust, and mechanical stress for long‑term outdoor use.
Easy installation and integration: The anodized aluminium frame, pre‑assembled junction box with three bypass diodes, and 1 m Radox cables simplify mounting and electrical connection on site.
Long‑term performance assurance: A 10‑year product warranty and a 25‑year power output warranty support dependable energy delivery. Degradation rates are controlled so output remains within expected levels over time.
The Photon Energy Systems PM0150 module converts sunlight into usable DC electricity through its 36 polycrystalline silicon cells. When solar radiation hits the toughened glass surface, light passes through to the silicon cells, where photons are absorbed and free electrons are generated. These electrons flow through the interconnected cell matrix, producing direct current at the panel’s rated voltage and current. Under standard test conditions, the panel delivers a maximum power of 150 watts at 18.62 volts and 8.07 amps. Bypass diodes in the IP67‑rated junction box help limit power loss under partial shading. The generated DC power is routed through the Radox connectors and cables to a charge controller, inverter, or DC loads, depending on the system design. The 1000V system voltage rating and robust mechanical load rating support use in a wide range of residential, commercial, rural, and industrial applications.
Photon capture and conversion: Sunlight first strikes the 3.2 mm tempered low‑iron glass, which allows high light transmission to the underlying cells. Polycrystalline silicon cells then absorb incoming photons and create an electric field, driving electrons to flow and generate DC power across the module terminals.
Power regulation and safety: The 36‑cell layout is matched to deliver a stable operating voltage around 18.62V at maximum power. Three integrated bypass diodes inside the junction box help protect cells from hot‑spot formation and reduce output losses when parts of the panel are shaded.
System integration and energy use: From the junction box, 1 m Radox solar cables route power to downstream equipment. A compatible charge controller and battery bank can be used for off‑grid systems, or an inverter can convert DC into AC power for on‑grid or hybrid installations.
| Brand | Photon Energy Systems Limited |
| Model Number | PM0150 (Series PM0145‑0160‑36) |
| Cell Technology | Polycrystalline (Multi‑Crystalline) silicon |
| Nominal Power (Pmax) | 150 Wp |
| Power Range for Series | 145 – 160 Wp |
| Power Tolerance | ± 2 % |
| Module Efficiency | 15.4 % (range 14.9 – 15.9 % for series) |
| Voltage at Maximum Power (Vmpp) | 18.62 V |
| Current at Maximum Power (Impp) | 8.07 A |
| Open Circuit Voltage (Voc) | 22.23 V |
| Short Circuit Current (Isc) | 8.58 A |
| Total Degradation Rate | Approximately 0.8 % per year (90 % at 10 years, 80 % at 25 years) |
| Operating Temperature Range | -40 °C to +85 °C |
| Maximum System Voltage | 1000 V DC |
| Series Fuse Rating | 15 A |
| Mechanical Load Rating | Up to 5400 Pa (wind and snow) |
| Panel Dimensions (H × W × D) | 1490 × 655 × 42 mm |
| Panel Area | Approximately 0.98 m² |
| Weight | 12 kg |
| Cell Size | 156 × 156 mm |
| Number of Cells | 36 full‑size cells |
| Glass Type and Thickness | 3.2 mm tempered low‑iron textured glass |
| Encapsulant Material | EVA (Ethylene Vinyl Acetate) |
| Back Cover Type | PET backside sheet |
| Frame Material | Silver anodized aluminium channel |
| Junction Box | Solar Box‑RH3, IP67, with 3 bypass diodes (Huber+Suhner) |
| Connector Type and Cable Length | Radox solar connectors with 1000 mm cable (Huber+Suhner) |
| Country of Manufacture / Seller | India, Photon Energy Systems Limited |
Certifications: Manufactured by Photon Energy Systems Limited, a company operating under ISO 9001 and ISO 14001 quality and environmental management systems. Detailed module certificates are available on request from the manufacturer or official partners.
Inverter Compatibility: Suitable for use with most modern PWM and MPPT charge controllers and solar inverters that support 36‑cell polycrystalline modules and a maximum system voltage up to 1000 V DC. Always check string design and inverter input limits during system design.
Environmental: Designed for outdoor installation with an IP67‑rated junction box, 5400 Pa mechanical load rating, and materials selected to withstand typical wind, snow, and temperature extremes in residential, commercial, and rural environments.
Warranty: 10‑year limited product warranty against defects in materials and workmanship, plus a linear power output warranty targeting 90 % of rated power at 10 years and 80 % of rated power at 25 years, when installed and maintained according to the manufacturer’s guidelines.
● Available | Contact us for lead time and pricing
