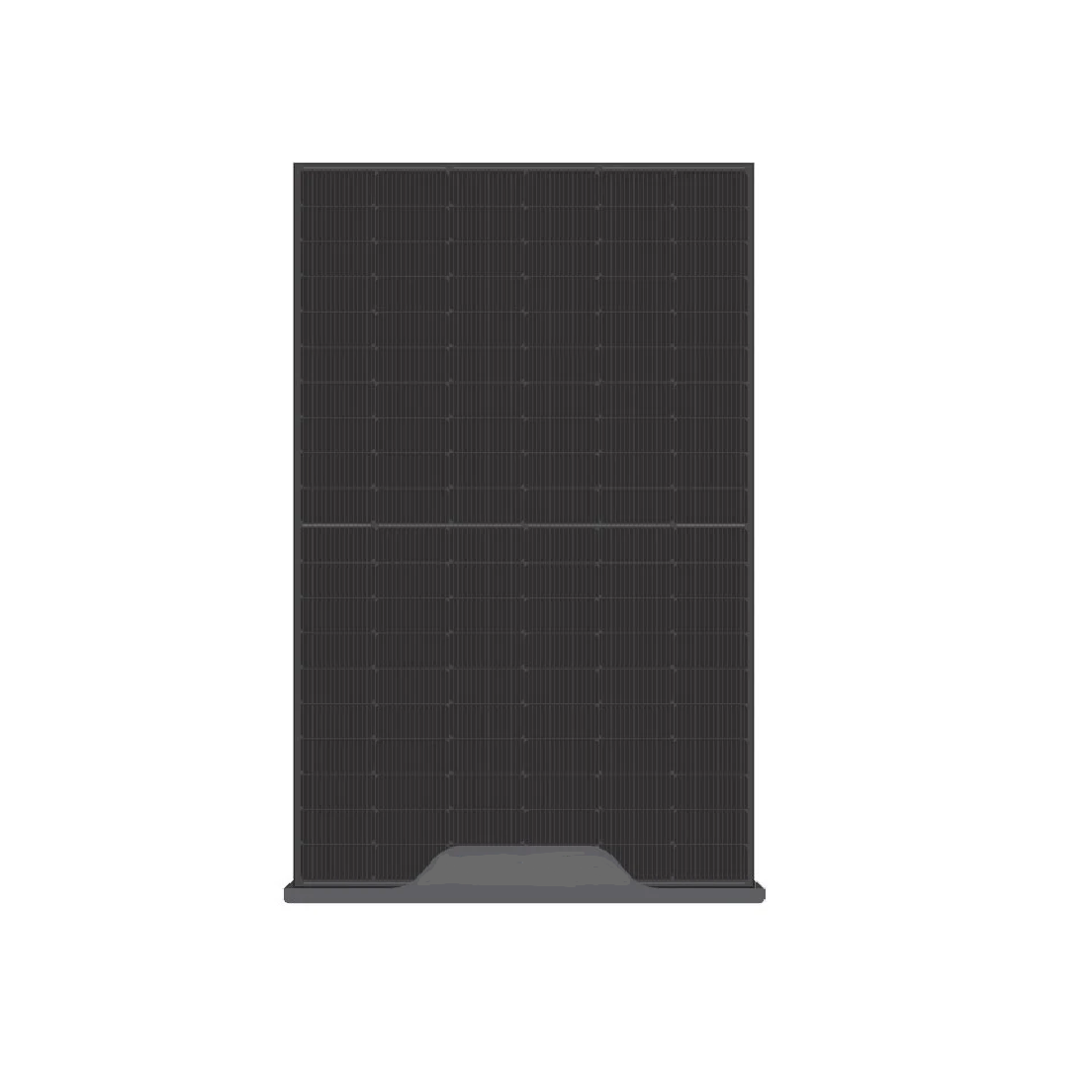

Smart Güneş Teknolojileri SS460M10GH-20/UH
Smart Güneş Teknolojileri SS460M10GH-20/UH
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Trusted by 1,000s of Contractors & Installers
In Stock
SKU  PES-SPS-SOL-17479

Smart Güneş Teknolojileri SS460M10GH-20/UH

Smart Güneş Teknolojileri SS460M10GH-20/UH

OEM Authorized Dealer BABA Compliant Full OEM Warranty 7-10 Business Day Delivery
$99.99 USD
$0.01 $99.99 USD
Sale Sold out

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone (888) 876-0007
phone Instant Live Chat
phone Mon-Fri 10am-6pm EST
View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Smart Güneş Teknolojileri SS460M10GH-20/UH 460–480W TOPCon Bifacial Solar Panel

Model SS460M10GH-20/UH | N-Type TOPCon | 120 Cells Half-Cut | Bifacial | 1500V System Voltage

480W
Max Power Output
22.24%
Module Efficiency
120
N-Type TOPCon

Product Overview

The Smart Güneş Teknolojileri SS460M10GH-20/UH is a high-performance full black bifacial solar panel built with advanced N-Type TOPCon technology. It is designed for strong energy yield, reliable long-term operation, and clean rooftop aesthetics. The module uses 120 half-cut cells and 16BB SMBB architecture for improved current collection and stronger power output. It is available in a 460W to 480W range, making it suitable for demanding residential and commercial solar projects. Its glass-glass construction supports durability, while the full black finish delivers a modern and premium appearance. With a maximum system voltage of 1500V and excellent environmental resistance, this module is engineered for stable performance in varied field conditions.

Key Benefits

Higher Power Output: SMBB technology improves current collection and helps raise module output.

Bifacial Energy Gain: The bifacial design can capture reflected light from the rear side for additional generation.

Strong Reliability: Optimized production control supports excellent anti-PID performance and stable long-term operation.

Mechanical Strength: Certified loading capacity supports 5400Pa front-side snow load and 2400Pa rear-side wind load.

Premium Appearance: The full black design offers a sleek finish that suits modern rooftops and architectural projects.

Wide Operating Range: The module is engineered to perform from -40 to +85°C in demanding climates.

How It Works

This module converts sunlight into electricity through N-Type TOPCon cells arranged in a 120-cell half-cut layout. The half-cut design reduces resistive losses and helps improve output under partial shading. SMBB technology supports better current flow across the module, which contributes to stronger power delivery and improved reliability. The bifacial structure can also generate power from light reaching the rear surface. This makes the panel suitable for installations where reflected light increases total yield. The glass-glass build supports mechanical durability and helps protect the cells from harsh outdoor conditions.

N-Type TOPCon Cell Conversion: Sunlight is converted efficiently by advanced N-Type cells. This improves low-light response and supports higher energy yield.

SMBB Current Collection: Multiple busbars help distribute current more effectively. This reduces energy loss and supports better module performance.

Bifacial Rear-Side Gain: The rear side can capture reflected light from the installation surface. This can increase total production in suitable environments.

Technical Specifications

Model SS460M10GH-20/UH
Power Range 460W to 480W
Cell Technology N-Type Bifacial Mono, TOPCon
Cell Count 120 cells, 12x10 layout
Cell Size 182x91mm
Front Glass 2.0mm AR coating tempered glass
Back Glass 2.0mm glazed glass
Frame Anodized aluminium alloy
Dimensions 1903 x 1134 x 30 mm
Weight 27.20 kg
Operating Temperature -40 to +85°C
Maximum System Voltage DC 1500V
Maximum Series Fuse Rating 30A
Front Side Maximum Static Loading 5400Pa
Rear Side Maximum Static Loading 2400Pa
Voltage Temperature Coefficient -0.250%/°C
Current Temperature Coefficient +0.046%/°C
Power Temperature Coefficient -0.300%/°C
NOCT 45±2°C

Certifications & Compliance

Certifications: PID resistance, enhanced mechanical load certification, IP68 junction box protection, Class II safety level
Inverter Compatibility: Suitable for 1500V solar systems and standard PV inverter setups
Environmental: Designed for wind load up to 2400Pa and snow load up to 5400Pa, with corrosion-resistant anodized aluminium frame
Warranty: 12-year product warranty and 30-year linear performance warranty

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
