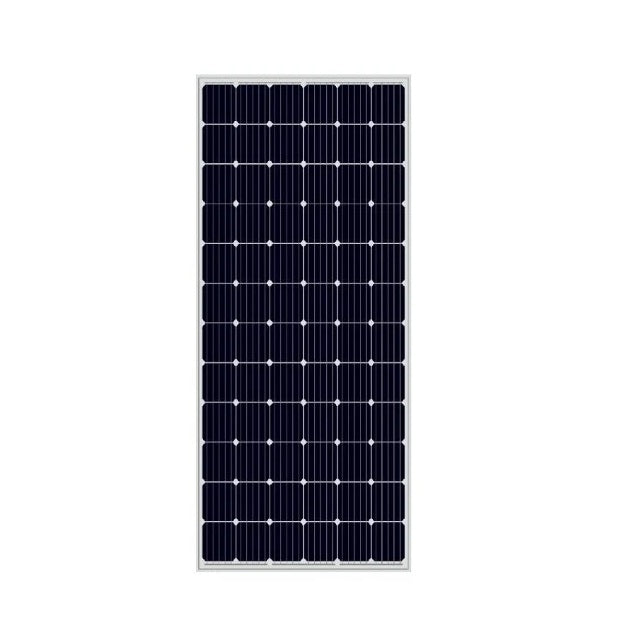

Solarvatio SV-360 MONO-5-72UL
Solarvatio SV-360 MONO-5-72UL
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Trusted by 1,000s of Contractors & Installers
In Stock
SKU  PES-SPS-SOL-18121

Solarvatio SV-360 MONO-5-72UL

Solarvatio SV-360 MONO-5-72UL

OEM Authorized Dealer BABA Compliant Full OEM Warranty 7-10 Business Day Delivery

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone (888) 876-0007
phone Instant Live Chat
phone Mon-Fri 10am-6pm EST
View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Solarvatio SV-360 MONO-5-72UL 360W PERC Monocrystalline Solar Panel

Model SV-360 MONO-5-72UL | PERC Monocrystalline | 72 Full-Cell Module | Monofacial | 1000V System Voltage

360 Wp
Max Power Output
High
Module Efficiency
72 Cells
Monocrystalline PERC

Product Overview

The Solarvatio SV-360 MONO-5-72UL 360W PERC monocrystalline solar panel is engineered for reliable power generation in demanding residential and commercial projects. This high performance module combines efficient monocrystalline cells with advanced PERC technology to deliver stable energy output in a compact 72 cell format. Designed and manufactured in Mexico, it offers a strong balance of power, durability and long term value for grid tied and off grid systems. Installers can deploy this panel with confidence thanks to its robust construction and generous warranty coverage. The module is ideal where dependable 360 watt power, solid low light behavior and proven quality are required.

Key Benefits

Reliable 360W output: The module delivers a maximum power of 360 Wp under standard test conditions, supporting efficient system sizing and predictable production.

Advanced PERC cell design: PERC monocrystalline cells capture more sunlight and convert it into energy more effectively, improving performance across a wide range of operating conditions.

Strong low light performance: The textured cell and tempered glass surface enhance light absorption, helping the panel maintain useful output on cloudy days and during early morning or late afternoon.

Robust mechanical design: A 4 mm tempered glass front, durable TPT backsheet and anodized aluminium frame protect the cells against impact, weather and long term outdoor exposure.

Long term peace of mind: A 10 year product warranty and performance guarantees of 90 percent at 10 years and 80 percent at 25 years provide confidence in lifetime energy yield.

Flexible system integration: With a maximum system voltage of 1000 V and positive power tolerance from 0 to +5 percent, the panel suits many string configurations and inverter options.

How It Works

The Solarvatio SV-360 MONO-5-72UL solar panel converts sunlight into usable direct current electricity through high efficiency monocrystalline PERC cells. Each of the 72 cells is wired in a series parallel layout inside the module to reach an optimal operating voltage and current for common 1000 volt systems. When sunlight hits the silicon cells, photons dislodge electrons and create an electric current that flows through the internal conductors and out through the junction box cables. The panel operates most efficiently around its rated voltage at maximum power of 37.5 V and current at maximum power of 9.36 A. In real installations, one or more panels are connected together and then paired with an inverter that converts the DC output into grid compatible AC power.

Monocrystalline PERC energy conversion: The panel uses monocrystalline cells built with passivated emitter and rear contact technology, known as PERC. This structure improves light trapping and reduces electron recombination, which helps raise real world efficiency. The result is more power from the same surface area, especially when sunlight is not perfectly perpendicular to the module.

Optimized electrical operating point: Under standard test conditions, the module reaches its 360 Wp rating at 37.5 V and 9.36 A, which defines its maximum power point. Modern inverters track this point continuously through MPPT algorithms to keep the panel operating as close as possible to its ideal voltage and current. This approach helps maintain high energy harvest, even with irradiance and temperature changing during the day.

Thermal and environmental resilience: The SV-360 MONO-5-72UL is designed to operate in temperatures from -40 to 90 degrees Celsius without compromising safety. Temperature coefficients for power, voltage and current describe how performance shifts as the module heats or cools in service. A low power temperature coefficient of -0.3938 percent per degree Celsius limits losses during hot conditions, so more of the available solar energy is converted into useful output over the life of the system.

Technical Specifications

Brand Solarvatio
Model Number SV-360 MONO-5-72UL
Cell Technology Monocrystalline PERC
Cell Size 156.8 mm x 156.8 mm
Number of Cells 72 cells
Module Type Monofacial standard solar panel
Maximum Power (Pmax) 360 Wp
Power Tolerance 0 to +5 % positive tolerance
Voltage at Maximum Power (Vmpp) 37.5 V
Current at Maximum Power (Impp) 9.36 A
Open Circuit Voltage (Voc) 45.91 V
Short Circuit Current (Isc) 9.70 A
Maximum System Voltage 1000 V DC (SC II)
Standard Test Conditions Irradiance 1000 W/m², cell temperature 25 °C, AM 1.5 spectrum
Operating Temperature Range -40 °C to +90 °C
Temperature Coefficient of Pmax -0.3938 % / °C
Temperature Coefficient of Voc -0.3095 % / °C
Temperature Coefficient of Isc +0.0398 % / °C
Module Dimensions (H x W x D) 1962 mm x 985 mm x 35 mm
Weight 24 kg
Front Glass 4 mm tempered glass
Backsheet Type White TPT back cover
Frame Material Anodized aluminium frame, 35 mm profile
Junction Box QC Solar junction box with 3 bypass diodes
Cable Specification TÜV certified solar cable, 4 mm² cross section
Maximum Mechanical Load 5400 Pa front side load rating
Impact Resistance Rated impact resistance up to 23 m/s (52 mph)
Fire Rating Type 1 fire classification
Country of Origin Mexico

Certifications & Compliance

Certifications: UL 1703 certified module, license E495865, Type 1 fire rating for rooftop applications.
Inverter Compatibility: Suitable for 1000 V DC string inverters and charge controllers that support 72 cell monocrystalline modules, when wired within manufacturer voltage and current limits.
Environmental: Designed for outdoor installation with tempered glass, corrosion resistant anodized aluminium frame, TPT backsheet and 5400 Pa mechanical load rating for wind and snow exposure.
Warranty: 10 year product warranty against material and manufacturing defects, plus performance warranty of 90 percent of rated power at 10 years and 80 percent at 25 years, with an annual degradation rate of approximately 0.8 percent under normal conditions.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
