Unirac NXT Horizon 168 (14) DARK RAIL - 168RLD1

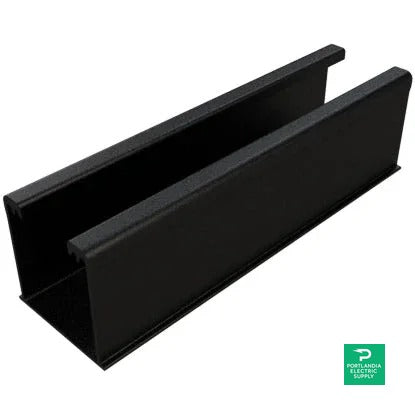

Unirac NXT Horizon 168 Rail System - Model 168RLD1

The Unirac NXT Horizon 168 Rail System, designated as model 168RLD1, is engineered to provide robust support for solar photovoltaic (PV) modules mounted on flat roofs. This innovative design not only facilitates a secure attachment to the roof structure but also ensures optimal performance and aesthetic appeal. With its reinforced aluminum construction and integrated features, it meets stringent industry standards while simplifying solar panel installation for professionals.

Product Features

Integrated Grounding System

The Unirac 168RLD1 features an integrated grounding and bonding system compliant with UL2703. This ensures that the solar installation maintains electrical safety while minimizing installation complexity for technicians.

Durable Structural Design

Built from high-quality extruded aluminum, the rail system ensures durability and reliability under various weather conditions. The structural integrity of the NXT Horizon series gives users peace of mind when securing their solar modules.

Versatile Module Orientation

This model allows for both landscape and portrait module orientations, making it adaptable to various roof designs. The rail system can be installed parallel or perpendicular to the roof slope, accommodating diverse installation preferences.

Compatibility with Framed Modules

The Unirac 168RLD1 is designed to work seamlessly with most framed solar modules, supporting thicknesses ranging from 30mm to 40mm. This broad compatibility allows installers to utilize the rail system with a wide array of solar products.

Advanced Wire Management Options

The rail system includes in-rail wire management solutions, helping to keep electrical wiring organized and out of sight. This enhances the aesthetic appearance of the installation and reduces the risk of wear and tear on wires.

How It Works

The NXT Horizon 168 Rail System uses a combination of structural components and installation techniques to provide a secure framework for solar modules. The components are designed to work together, facilitating easier assembly while ensuring compliance with building codes and engineering standards.

Extruded Aluminum Rails

The primary components of the system are the extruded aluminum rails, which provide both strength and lightweight performance. These rails are engineered to handle significant weight loads from solar modules and withstand environmental forces such as wind and snow.

Clamping Mechanisms

Specialized combination clamps ensure a secure fit for solar modules while integrating grounding features. These clamps simplify the installation process and provide robust connections between the modules and the rail system.

Connection Strengthened by Bonding

The system's bonding protocol bolsters connection fidelity and electrical safety, ensuring that all electrical components are securely grounded. This is critical for maintaining compliance with industry standards and ensuring user safety.

Specifications
