What is the Victron Energy VBB125060020 busbar used for?

The Victron Energy VBB125060020 busbar is used to distribute power efficiently by connecting multiple DC electrical circuits to a single common point. It is ideal for marine, RV, solar, and off-grid power systems.

How much current can the Victron 250A busbar handle?

This busbar supports a maximum continuous current of 250 amps, making it suitable for high-power DC applications without overheating or performance loss.

Does the Victron 250A busbar come with a protective cover?

Yes, it includes a durable ABS protective cover that helps prevent accidental contact, reduces debris exposure, and improves overall installation safety.

What voltage rating is supported by the Victron busbar?

The Victron VBB125060020 busbar is rated for a maximum voltage of 70 VDC, making it compatible with most low-voltage DC power systems.

Is the Victron busbar safe for enclosed electrical installations?

Yes, the base material is made from UL 94 V-0 rated ABS, offering high fire resistance and making it safe for use in electrical panels and enclosures.

Home
Victron Energy Solar Kits — Performance Picks

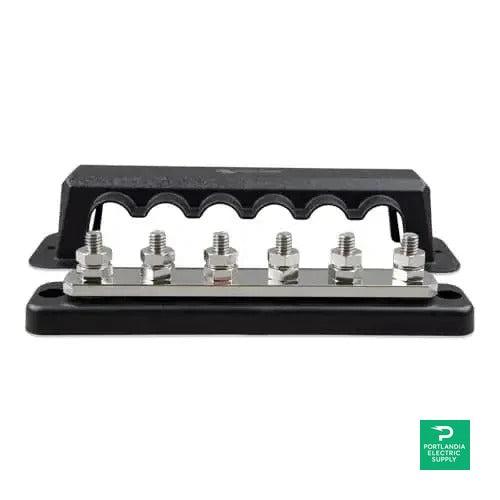

Victron Busbar 250A 6P + cover - VBB125060020

Victron Busbar 250A 6P + cover - VBB125060020

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Victron Busbar 250A 6P + cover - VBB125060020

Trusted by 1,000s of Contractors & Installers

Available to Order

SKU PES-PA-ELC-0646

OEM Authorized Dealer Full OEM Warranty

$69.00 USD

$ $69.00 USD

Sold out

Quantity

Datasheet

Multi-unit or project order?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.

SKU: PES-PA-ELC-0646
MPN: VBB125060020
Min purchase: 10 pcs

Complete the job

Compatible gear contractors pair with this item

Solar panels Runergy Hyperion 400W Mono PERC Bifacial Dual Glass HY-DH108P8B-400 Solar Panel

$140.99

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Victron Busbar 250A 6P + cover - VBB125060020 $69.00

Specifications

Datasheet

Amperage 250A

Certifications<

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

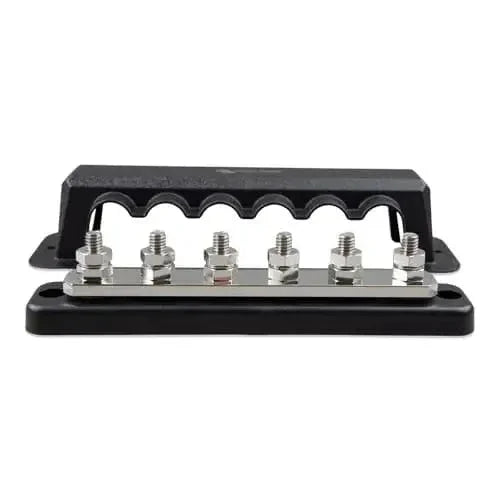

Victron Energy VBB125060020

The Victron Busbar 250A is designed to facilitate efficient electrical connections within your setup. This high-quality busbar is capable of handling a maximum current rating of 250 A, ensuring robust performance for any application. With its durable construction and user-friendly design, it delivers reliable service while maintaining safety standards. Whether you're looking for effective power distribution or a durable solution for your electrical needs, this product stands out with key benefits that enhance usability and functionality.

Product Features

High Current Rating

This busbar features a maximum current rating of 250 A, which makes it an excellent choice for high-power applications, ensuring that your system operates without overheating or losses. The strength and reliability of the Victron busbar means you can count on it to handle demanding electrical loads efficiently.

Quality Material Construction

Constructed from stainless steel, the terminal components provide long-lasting durability and corrosion resistance. With materials that withstand the rigors of different environments, this busbar helps ensure dependable connections and minimizes maintenance needs.

Versatile Terminal Specifications

The terminal diameter of 5/16 inch (8 mm) and height of 0.67 inch (17 mm) cater to a variety of wiring configurations. This versatility adds to the usability of the Victron busbar, allowing easy integration into various electrical setups.

Included Protective Cover

The Victron Energy Busbar is equipped with a protective cover, safeguarding connections from debris and accidental contact. This added feature enhances safety and contributes to a cleaner-looking installation. Protect your electrical system while promoting a tidy workspace.

Easy Installation with Recommended Torque

Installation is simplified by following the recommended torque setting of 110 lbfÃ‚·inch (13 NÃ‚·m), ensuring proper attachment without the risk of damage. This easy-to-follow guideline allows both professionals and DIY enthusiasts to set up the busbar effortlessly.

How It Works

The Victron Busbar functions by allowing multiple electrical terminals to connect to a single point, streamlining the distribution of power throughout your setup. Each terminal connects securely to electrical components, enhancing efficiency and reducing clutter from a multitude of cables. Its thoughtful design augments both safety and performance.

Robust Terminal Connections

The terminals utilize tin-plated copper for the hex nuts, which promotes excellent conductivity while preventing corrosion. This ensures that connections remain reliable and efficient over time, even in challenging conditions.

Durable Base Material

The busbar's base is constructed with ABS material which is UL 94 V-0 rated, providing high resistance to fire while maintaining structural integrity. This is particularly important for ensuring safety in electrical installations.

Precise Dimensional Design

The overall dimensions of the busbar (1.9 x 9.4 x 2.8 inches) ensure it fits well within typical installation spaces, allowing for flexibility whether in a panel or an enclosure while providing a neat and organized appearance.

Specifications

Max. Current Rating	250 A
Max. Voltage Rating	70 VDC
Terminal Diameter	5/16 inch / 8 mm
Terminal Height	0.67 inch / 17 mm
Terminal Material	Stainless Steel
Hex Nut Material	Tin-Plated Copper
Recommended Torque	110 lbfÃ‚·inch / 13 NÃ‚·m
Busbar Strip Material	Tin-Plated Copper (5 x 24 mm)
Base Material	ABS, Black, UL 94 V-0
Cover Material	ABS, Black, UL 94 V-2
Weight (4 Terminals)	1.0 lb / 0.45 kg
Dimensions (HxWxD)	1.9 x 9.4 x 2.8 inch (48 x 237 x 70 mm)

Specifications & Documents: Full specifications & datasheet for Victron Busbar 250A 6P + cover - VBB125060020
