What is the Victron Energy VBB160040010 busbar used for?

The Victron Energy VBB160040010 busbar is used to safely distribute electrical power across multiple connections in high-current DC systems. It is commonly used in marine, RV, off-grid, and industrial electrical setups.

How much current can the Victron 600A busbar handle?

This busbar is rated to handle a maximum continuous current of 600 amps, making it suitable for demanding electrical environments that require reliable high-current distribution.

What voltage rating does the Victron Energy busbar support?

The Victron Energy VBB160040010 supports a maximum voltage of 70 VDC, ensuring safe operation in low-voltage DC power systems.

What materials are used in the Victron 600A busbar?

The busbar is made from tin-plated copper for excellent conductivity, while the terminals and flange nuts are constructed from stainless steel for durability and corrosion resistance.

How many terminals does the Victron 600A busbar have?

It includes 4 high-current terminals and 8 low-current screw terminals, allowing flexible connections for multiple electrical components.

Home
Victron Energy Solar Kits — Performance Picks

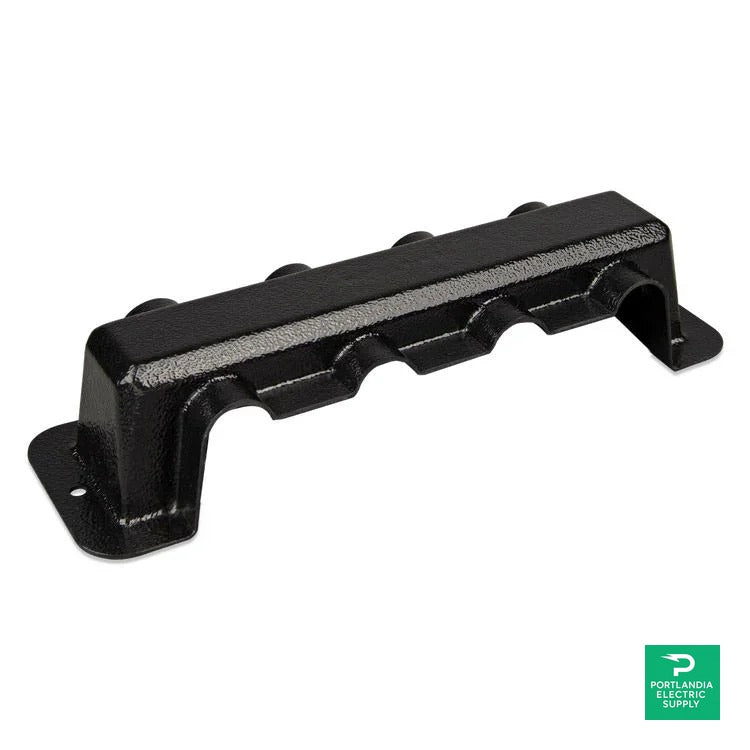

Victron Busbar 600A 4P + cover - VBB160040010

Victron Busbar 600A 4P + cover - VBB160040010

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Victron Busbar 600A 4P + cover - VBB160040010

Trusted by 1,000s of Contractors & Installers

Available to Order

SKU PES-PA-ELC-0645

OEM Authorized Dealer Full OEM Warranty

$146.00 USD

$ $146.00 USD

Sold out

Quantity

Datasheet

Multi-unit or project order?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.

SKU: PES-PA-ELC-0645
MPN: VBB160040010
Min purchase: 10 pcs

Complete the job

Compatible gear contractors pair with this item

Solar panels Runergy Hyperion 400W Mono PERC Bifacial Dual Glass HY-DH108P8B-400 Solar Panel

$140.99

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Victron Busbar 600A 4P + cover - VBB160040010 $146.00

Specifications

Datasheet

Amperage 600A

Certifications<

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

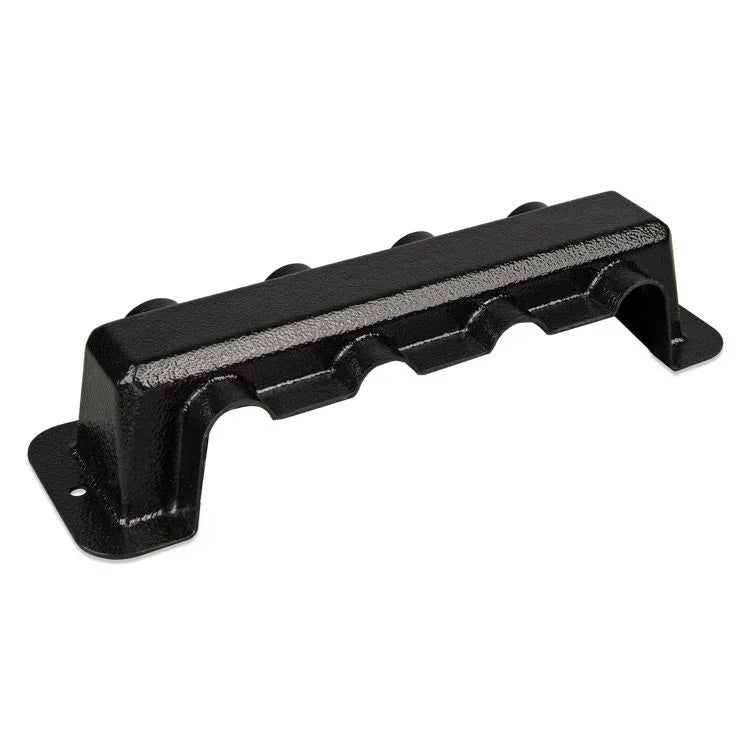

Victron Busbar 600A with Cover

The Victron Energy VBB160040010 is an innovative busbar designed to handle a maximum current of 600 A, making it perfect for a variety of electrical applications. Its exceptional voltage rating up to 70 VDC ensures reliability and safety, while the durable materials used in its construction enhance longevity and performance, bringing notable advantages to users seeking a dependable electrical solution.

Product Features

High Current Capacity

With the ability to manage a considerable load of 600 A, the Victron Energy VBB160040010 is ideal for demanding electrical systems, providing users with the confidence they need in high-powered environments.

Durable Material Composition

This busbar is crafted from high-quality tin-plated copper, which not only ensures excellent conductivity but also enhances the product's overall durability and reliability, critical for any electrical setup.

Versatile Terminal Options

Featuring 4 high current terminals and 8 low current screw terminals, this busbar caters to a wide range of connection needs, making it adaptable for various electrical configurations.

Robust Construction

Equipped with a sturdy cover made from ABS plastic, the Victron Energy busbar offers additional protection against environmental factors, contributing significantly to its versatility and user satisfaction.

Recommended Torque Specifications

The precise recommended torque values of 180 lbf·inch for high current terminals and 17 lbf·inch for low current terminals make installation straightforward, ensuring optimal performance and safety throughout its use.

How It Works

The Victron Energy VBB160040010 operates by effectively distributing electrical power across various components, maximizing efficiency while minimizing potential risks associated with electrical overload. The design facilitates easy connections, catering to a wide range of applications.

Terminal Design

The terminals of this busbar are strategically designed to support both high and low current applications, allowing for a flexible installation that meets user demands without compromising on safety or performance.

Effective Heat Dissipation

The materials used in the Victron busbar are selected not just for their conductivity but also for their ability to dissipate heat efficiently, reducing the chances of overheating and ensuring a longer lifespan for the product.

Ease of Installation

Designed with user-friendliness in mind, this busbar comes with clear guidelines and specifications for installation, making it accessible even for users with limited technical knowledge.

Specifications

Maximum Current	600 A
Maximum Voltage	70 VDC
Terminal Diameter	3/8 inch / 9.53 mm
Terminal Height	0.76 inch / 19 mm
Terminal Material	Stainless Steel
Flange Nut Material	Stainless Steel
Recommended Torque (High Current)	180 lbf·inch / 20 N·m
Recommended Torque (Low Current)	17 lbf·inch / 2 N·m
Busbar Material	Tin-Plated Copper (19 x 24 mm)
Base Material	ABS, black, UL 94 V-0
Cover Material	ABS, black, UL 94 V-2
Weight (4 Terminals)	1.7 lb / 0.75 kg
Dimensions (4 Terminals)	2.6 x 8.5 x 3.4 inch / 65 x 216 x 86 mm
Weight (8 Terminals)	2.9 lb / 1.3 kg
Dimensions (8 Terminals)	2.6 x 12.9 x 3.4 inch / 65 x 327 x 86 mm

What is your return policy?

What’s covered by your return policy?

How long will it take to receive my order?

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Victron Busbar 600A with Cover

Product Features

High Current Capacity

Durable Material Composition

Versatile Terminal Options

Featuring 4 high current terminals and 8 low current screw terminals, this busbar caters to a wide range of connection needs, making it adaptable for various electrical configurations.

Robust Construction

Recommended Torque Specifications

How It Works

Terminal Design

Effective Heat Dissipation

Ease of Installation

Designed with user-friendliness in mind, this busbar comes with clear guidelines and specifications for installation, making it accessible even for users with limited technical knowledge.

Specifications

Maximum Current	600 A
Maximum Voltage	70 VDC
Terminal Diameter	3/8 inch / 9.53 mm
Terminal Height	0.76 inch / 19 mm
Terminal Material	Stainless Steel
Flange Nut Material	Stainless Steel
Recommended Torque (High Current)	180 lbf·inch / 20 N·m
Recommended Torque (Low Current)	17 lbf·inch / 2 N·m
Busbar Material	Tin-Plated Copper (19 x 24 mm)
Base Material	ABS, black, UL 94 V-0
Cover Material	ABS, black, UL 94 V-2
Weight (4 Terminals)	1.7 lb / 0.75 kg
Dimensions (4 Terminals)	2.6 x 8.5 x 3.4 inch / 65 x 216 x 86 mm
Weight (8 Terminals)	2.9 lb / 1.3 kg
Dimensions (8 Terminals)	2.6 x 12.9 x 3.4 inch / 65 x 327 x 86 mm
