What is the Victron Cyrix-CT 12/24V Combiner used for?

The Victron Cyrix-CT 12/24V Combiner is designed to manage multiple batteries efficiently, ensuring the starter battery stays charged while other batteries are charged simultaneously.

How does the Cyrix-CT combiner work?

It monitors battery voltage trends and automatically connects or disconnects batteries based on precise voltage thresholds, preventing damage from short, high-amperage loads.

Can the Cyrix-CT be used with both 12V and 24V systems?

Yes, the Cyrix-CT 12/24V is fully compatible with both 12V and 24V battery systems.

Does the Victron Cyrix-CT offer overheating protection?

Yes, it automatically disengages if temperatures rise due to overloads and reconnects once it cools down, ensuring safe operation.

Is installation of the Cyrix-CT complicated?

No, it is easy to install with long bolts for multiple power cable connections and includes LED indicators for simple monitoring.

Home
Victron Energy Solar Kits — Value Picks
Victron Cyrix-ct 12/24V-120A intelligent combiner - CYR010120011 (R)

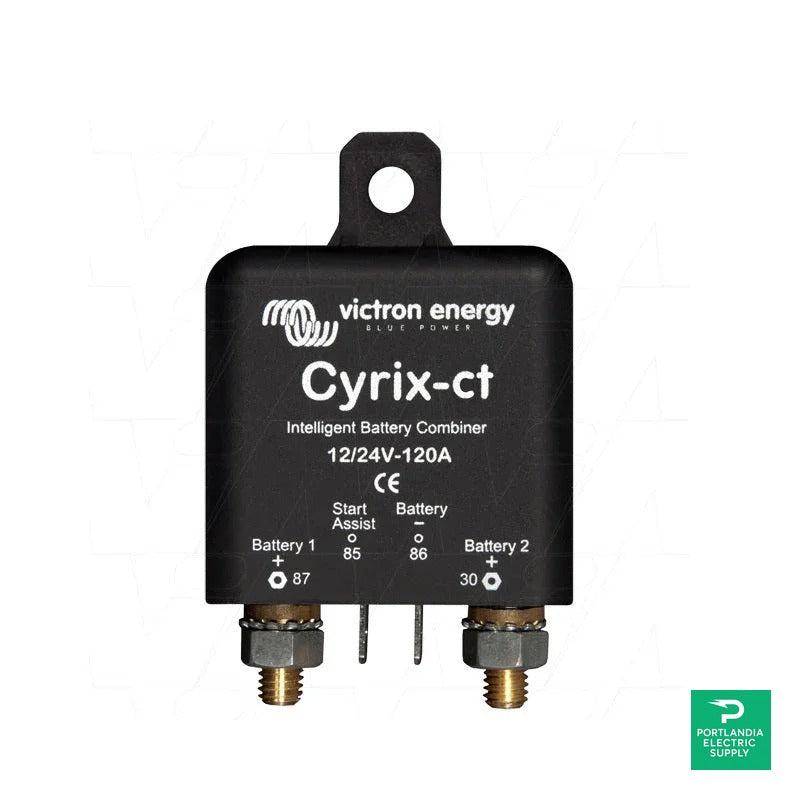

Victron Cyrix-ct 12/24V-120A intelligent combiner - CYR010120011 (R) — front view

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Victron Cyrix-ct 12/24V-120A intelligent combiner - CYR010120011 (R)

Trusted by 1,000s of Contractors & Installers

Available to Order

SKU PES-PA-ELC-0539

OEM Authorized Dealer Full OEM Warranty

$55.00 USD

$ $55.00 USD

Sold out

LOWEST PRICE Save $15.00 vs the lowest of 1 tracked competitor

Quantity

Datasheet

Multi-unit or project order?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.

SKU: PES-PA-ELC-0539
MPN: CYR010120011 (R)
Min purchase: 10 pcs

Complete the job

Compatible gear contractors pair with this item

Hybrid inverter Sol-Ark 18kW Inverter SA-18K-2P 48VDC 120/240V | Outdoor Grid-tied and Off-grid

$6,106.00

Battery rack EG4 3-Slot Battery Rack â€“ Heavy-Duty Indoor Cabinet with 300A Busbars

$439.99

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Victron Cyrix-ct 12/24V-120A intelligent combiner - CYR010120011 (R) $55.00

Specifications

Datasheet

Voltage 24V

Amperage 120A

Certifications<

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Victron Energy CYR010120011 (R)

The Victron Cyrix-CT 12/24V-120A is an advanced intelligent battery combiner designed to efficiently manage power distribution among multiple batteries. It ensures that your starter battery maintains its charge while simultaneously allowing other batteries to be charged effectively. With no voltage loss and intelligent trend detection, this product is essential for any energy management system.

Product Features

Intelligent Voltage Monitoring

This intelligent battery combiner constantly monitors battery voltage levels, ensuring the effective connection and disconnection of batteries based on precise voltage thresholds. This feature helps to preserve battery health and optimize charging efficiency.

Fast Response Time

The Cyrix-ct 12/24V-120A provides immediate response time with minimal delay in connection or disconnection, making it ideal for situations where rapid power management is crucial. This capability supports seamless operation without interruptions.

Overheating Protection

In the event of excessive temperatures due to long duration overloads, the Victron battery combiner will automatically disengage. Once temperatures normalize, it will reconnect, thus ensuring safety and reliability during operation.

Easy Installation

Designed for user convenience, the Cyrix-ct 12/24V-120A features long bolts that space out connection points, allowing multiple power cables to be easily attached. This simplifies the installation process for end users.

LED Status Indicators

The product includes LED status indicators that provide visual feedback on the device's operation. With clear lights indicating engaged or disengaged status, users can easily monitor the function and health of the system.

How It Works

The Victron Cyrix-ct 12/24V-120A functions based on a sophisticated algorithm that evaluates battery voltage trends. It helps to control the connection and disconnection of batteries to avoid damage caused by short but high amperage loads or unforeseen discharges.

Voltage Trend Detection

This component analyzes the overall trend in battery voltage, allowing for smarter action based on past behavior, rather than fixed timers alone. This innovation enhances the reliability of battery management.

Dual Power Supply

The dual power supply enabled in the Cyrix combiner allows it to engage even if one battery is low in voltage, ensuring operational continuity and preventing sudden shut-offs.

Start Assist Functionality

A unique start assist feature allows users to manually connect batteries together in emergency situations. This feature can be activated via a push button, aiding in quick recovery when the starter battery is depleted.

Specifications

Continuous Current	120 A
Cranking Rating (5 seconds)	180 A
Connect Voltage	From 13 V to 13.8 V
Disconnect Voltage	From 11 V to 12.8 V
Current Consumption When Open	< 4 mA
Current Consumption When Closed (12V)	220 mA
Weight	0.11 kg (0.24 lbs)
Dimensions (h x w x d)	46 x 46 x 80 mm
Protection Category	IP54
Control Cable Included	No
