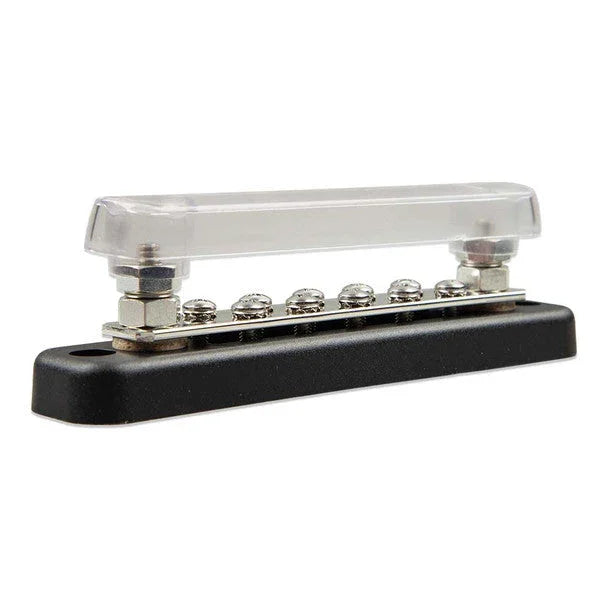

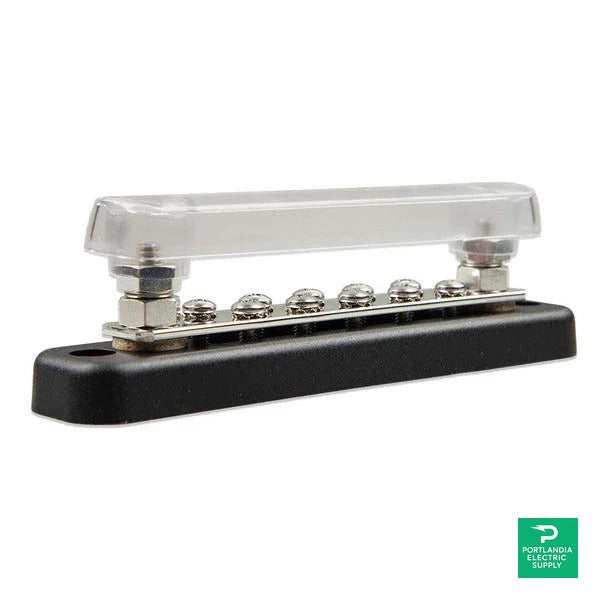

Victron Busbar 150A 2P with 10 Screws and Cover

The Victron Energy VBB115021020 is a robust busbar designed to handle a maximum current of 150 A and a maximum voltage of 70 VDC. This product showcases superior construction and reliable performance, making it an ideal choice for various electrical applications. Offering either 10 or 20 screw options, it allows for flexible installation while ensuring optimal connectivity. Its durable materials and thoughtful design ensure long-lasting performance, making it a valuable addition to your electrical system.

Product Features

Ample Current Capacity

The Victron Energy VBB115021020 supports a substantial current of up to 150 A, providing reliable performance for demanding electrical applications. This feature ensures that your systems can operate safely and efficiently, minimizing risk of overload.

Multiple Screw Options

With configurations available for either 10 or 20 screws, this busbar enhances versatility in setups. This flexibility allows the user to tailor their installation based on specific project requirements, facilitating optimal electrical distribution.

Durable Material Construction

Constructed with stainless steel terminals and tin-plated copper for the busbar strip material, the Victron Energy VBB115021020 offers excellent corrosion resistance. This durability ensures the product maintains performance and longevity, even in challenging environments.

Clear Cover for Enhanced Safety

The busbar features a clear polycarbonate cover that provides an additional layer of safety. This component allows users to visually inspect connections while protecting against accidental contact, enhancing overall user safety.

Compact Design

The Victron Energy VBB115021020 has a compact footprint, measuring just 1.8 x 6.0 x 1.25 inches (with cover) for the 10-screw version. This small size is ideal for installations with space constraints, allowing users to maximize their available real estate without sacrificing performance.

How It Works

This busbar facilitates the distribution of electrical power from a source to various loads. The incorporation of multiple screws allows for robust and secure connections, minimizing resistance and heat generation. It is designed for ease of use, ensuring that both technical and non-technical users can install and operate it with confidence.

Terminal Connection System

The robust terminal connection system, featuring stainless steel and tin-plated copper, ensures a reliable physical and electrical connection. This setup minimizes wear and extends the lifespan of the connections, promoting overall system reliability.

Cover Mechanism

The clear cover serves to protect and insulate the busbar, enhancing safety during use. It securely fits over the busbar, preventing accidental contact while allowing for easy inspection of the connections and screws.

Lightweight Design

Despite its sturdy construction, the Victron Energy VBB115021020 is lightweight, weighing only 0.7 lb (0.3 kg) for the 10-screw configuration. This feature simplifies installation and handling, making it practical for various applications.

Specifications

Max Current	150 A
Max Voltage	70 VDC
Terminal Diameter	¼ inch / 6.35 mm
Terminal Height	0.67 inch / 17 mm
Terminal Material	Stainless Steel
Hex Nut Material	Tin-Plated Copper
Recommended Torque	60 lbf·inch / 7 N·m
Terminal Screws	8-32 / 4.2 mm
Base Material	ABS, Black, UL 94 V-0
Cover Material	Clear Polycarbonate, UL 94 HB
Weight (10 screws)	0.7 lb / 0.3 kg
Weight (20 screws)	2.2 lb / 1 kg
Dimensions (10 screws)	1.8 x 6.0 x 1.25 inch (45 x 152.4 x 32 mm)
Dimensions (20 screws)	1.8 x 9.1 x 1.25 inch (45 x 232 x 32 mm)
