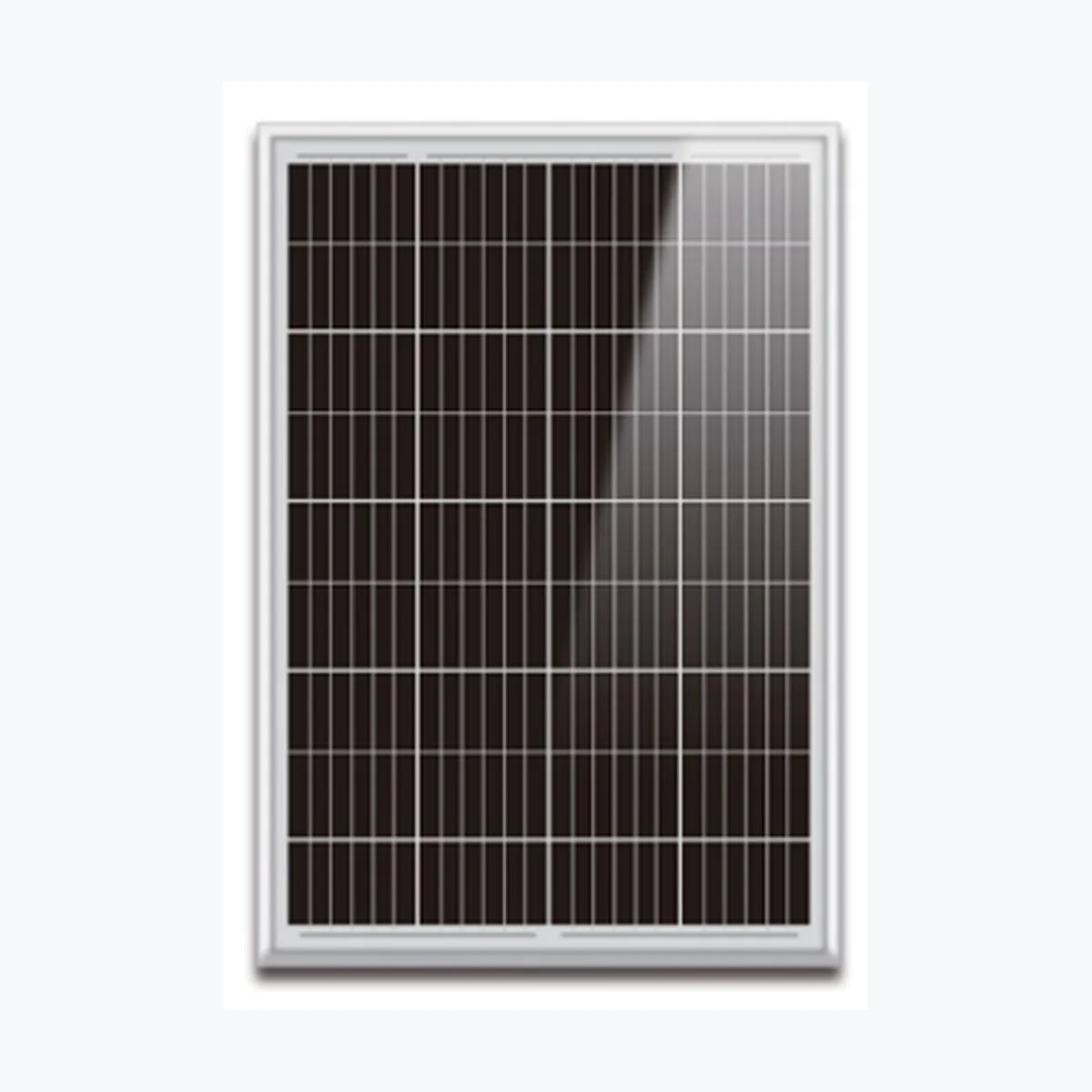

    AIMS Power PV120MONO

    AIMS Power PV120MONO

    $24.00 USD
    $24.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0639
    • Container price: $12,960.00 USD
    • Container qty: 720
    • Odoo id: 26,619
    • Pallet price: $612.00 USD
    • Pallet qty: 30
    • Unit price: $24.00 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. PV120MONO Power Tolerance 0 ~ +2.5 % Maximum Power (Pmax) 120 Wp Voltage at Maximum Power (Vmpp) 18.5 V Current at Maximum Power (Impp) 6.49 A Open Circuit Voltage (Voc) 22.2 V Short Circuit Current (Isc) 7.14 A Panel Efficiency 17.3 % Temperature 45±2 °C Operating Temperature Range -40 - 80 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Series Fuse Rating 15 A Panel Dimension (H/W/D) 1019.81x679.45x34.798 mm Weight 7.71107 kg Cell Size 158.75×158.75 mm Cell Number 36 Glass Type Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPT Frame Type Anodized Aluminium Junction Box Protection Class IP 65 Cable Crossection 4 mm2 Cable Length 900 mm Download Manufacturer's PDF Datasheet

      Power Range: 120 Wp
      Panel Efficiency: 17.30%
      Weight: 7.71107 kg
      Seller Name: AIMS Power, Inc.
      Country: United States
