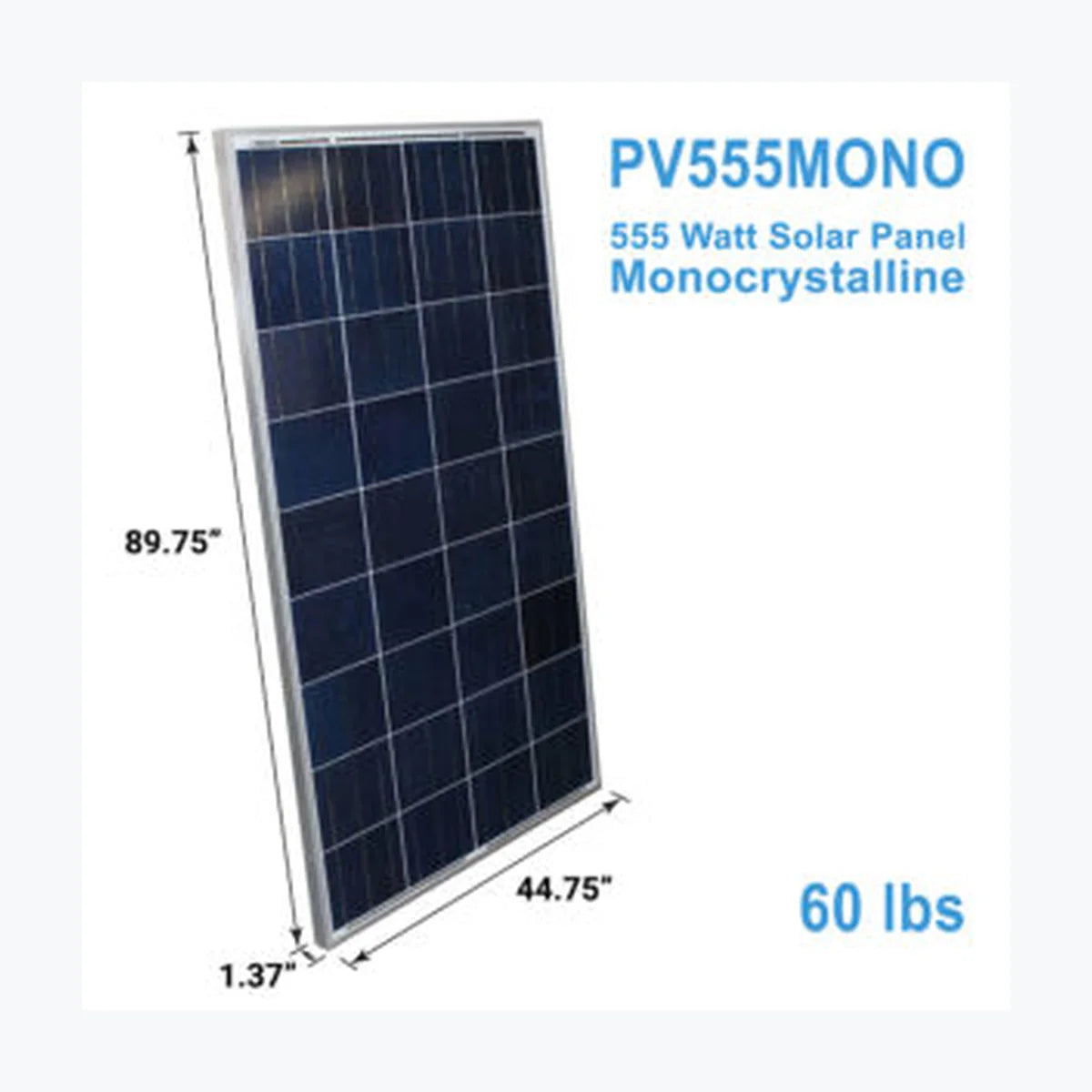

    AIMS Power PV555MONO

    AIMS Power PV555MONO

    $111.00 USD
    $111.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-PA-ELC-24947
    • Container price: $59,940.00 USD
    • Container qty: 720
    • Odoo id: 27,809
    • Pallet price: $2,830.50 USD
    • Pallet qty: 30
    • Unit price: $111.00 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. PV555MONO Product Warranty 10 Years Power Warranty 10 Years of 90 %, 25 Years of 80 % Total Degradation Rate ⏳ 0.8 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 555 Wp Voltage at Maximum Power (Vmpp) 42.11 V Current at Maximum Power (Impp) 13.18 A Open Circuit Voltage (Voc) 50.02 V Short Circuit Current (Isc) 14.07 A Panel Efficiency 21.5 % Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.38 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2279.65x1136.65x34.80 mm Weight 27.22 kg Cell Size 182×182 mm Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Junction Box Diodes 3 Junction Box Protection Class IP 67 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet

      Technology: PERC
      Power Range: 555 Wp
      Panel Efficiency: 21.50%
      Weight: 27.22 kg
      Seller Name: AIMS Power, Inc.
      Country: United States
