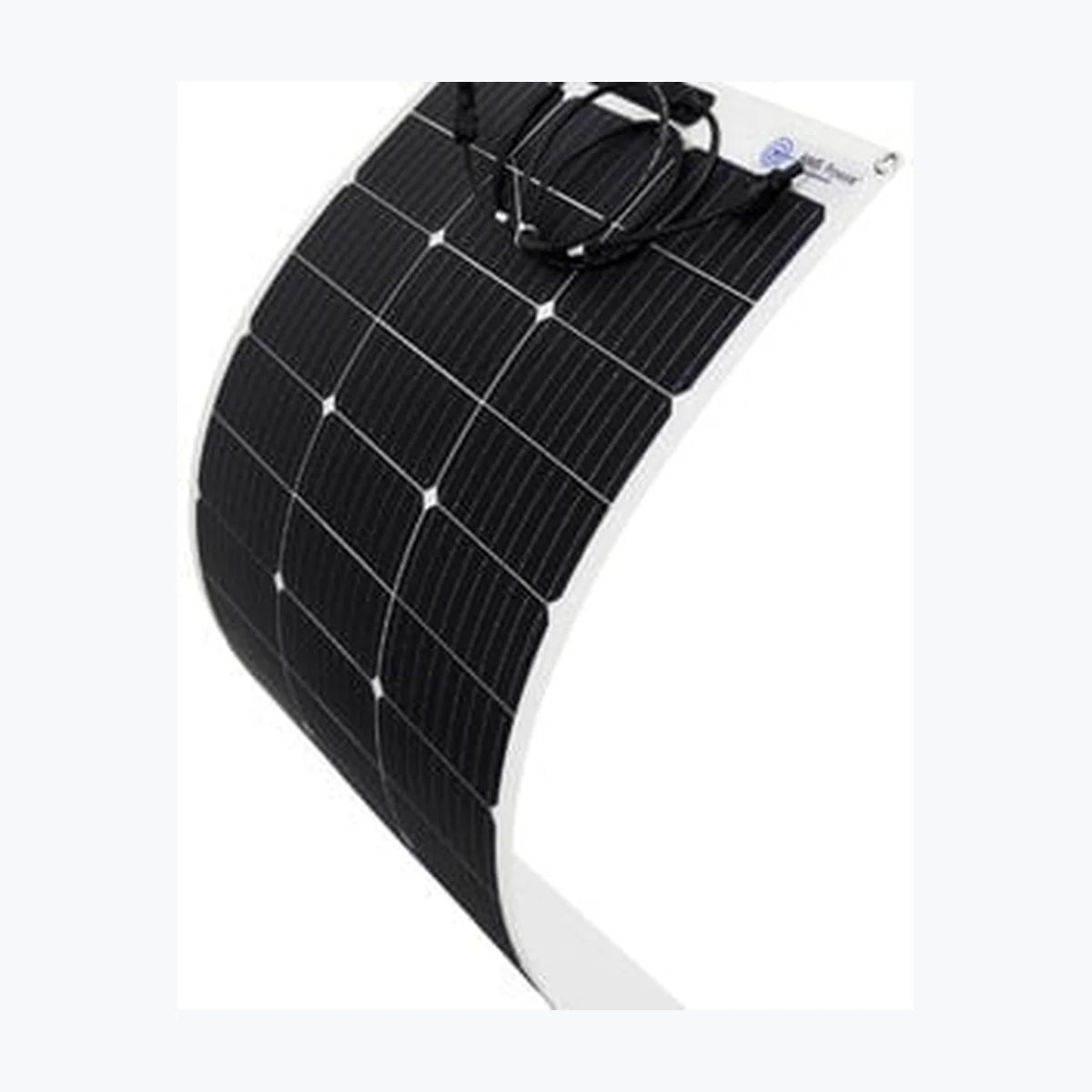

    AIMS Power PV230SLIM

    AIMS Power PV230SLIM

    $46.00 USD
    $46.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-PA-ELC-24263
    • Container price: $24,840.00 USD
    • Container qty: 720
    • Odoo id: 27,125
    • Pallet price: $1,173.00 USD
    • Pallet qty: 30
    • Unit price: $46.00 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. PV230SLIM Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 230 Wp Voltage at Maximum Power (Vmpp) 17.4 V Current at Maximum Power (Impp) 13.22 A Open Circuit Voltage (Voc) 20.8 V Short Circuit Current (Isc) 13.99 A Panel Efficiency 20.1 % Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.38 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1000 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1473.2x774.7x3.05 mm Weight 3.76 kg Encapsulant Type EVA Back Cover Type PET Junction Box Protection Class IP 65 Connector Type MC4 Download Manufacturer's PDF Datasheet

      Power Range: 230 Wp
      Panel Efficiency: 20.10%
      Weight: 3.76 kg
      Seller Name: AIMS Power, Inc.
      Country: United States
