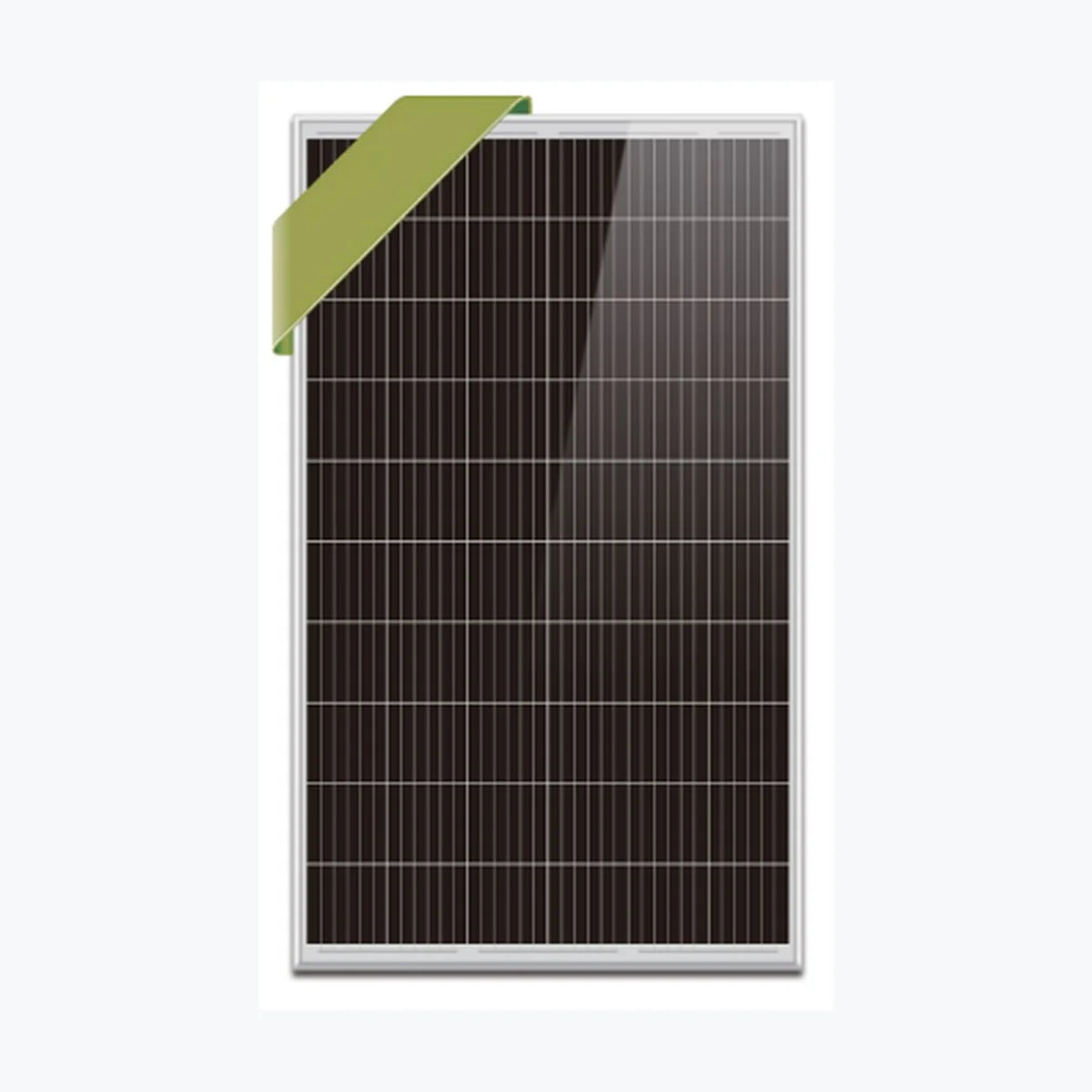

    AIMS Power PV330MONO

    AIMS Power PV330MONO

    $66.00 USD
    $66.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-PA-ELC-24442
    • Container price: $35,640.00 USD
    • Container qty: 720
    • Odoo id: 27,304
    • Pallet price: $1,683.00 USD
    • Pallet qty: 30
    • Unit price: $66.00 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. PV330MONO Product Warranty 12 Years Power Warranty 10 Years of 90 %, 25 Years of 80 % Total Degradation Rate ⏳ 0.8 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 330 Wp Voltage at Maximum Power (Vmpp) 33.9 V Current at Maximum Power (Impp) 9.73 A Open Circuit Voltage (Voc) 41.5 V Short Circuit Current (Isc) 10.22 A Panel Efficiency 19.78 % Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.38 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Panel Dimension (H/W/D) 1651x996.95x34.798 mm Weight 18.00762 kg Cell Size 158.75×158.75 mm Cell Number 60 Glass Type Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPT Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 900 mm Download Manufacturer's PDF Datasheet

      Power Range: 330 Wp
      Panel Efficiency: 19.78%
      Weight: 18.00762 kg
      Seller Name: AIMS Power, Inc.
      Country: United States
