• Solis 1P7.6K-4G-US-SPRT
1 1

In Stock

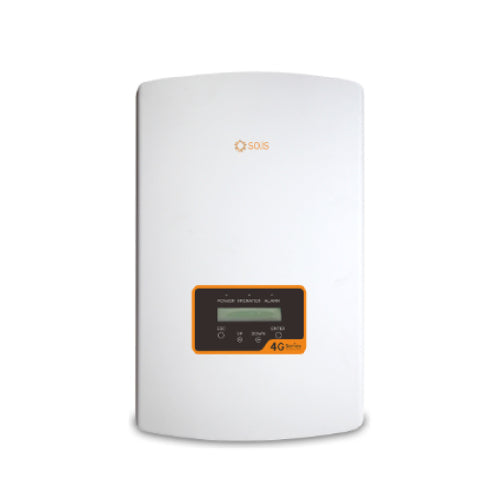

Solis 7.6KW 1-Phase 3-MPPT Inverter - 1P7.6K-4G-US-SPRT

Solis 7.6KW 1-Phase 3-MPPT Inverter - 1P7.6K-4G-US-SPRT

$1,513.63 USD
$1,513.63 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SIV-0529
  • Brands: Solis
  • Compliance special features:
    • UL 1741 SA
    • Rule 21
    • Rapid Shutdown Ready
  • Documents:

    Datasheet
  • Height: 24.9
  • Length: 73.2
  • Phase:
    • Single Phase
View full details

Product Description

  • Solis 7.6 kW 1-Phase 3-MPPT Inverter - 1P7.6K-4G-US-SPRT

    The Solis 1P7.6K-4G-US-SPRT is a highly efficient single-phase inverter designed for solar power systems. It offers a powerful and reliable solution for energy conversion, ensuring optimal performance with a maximum efficiency rating of 97.8%. Equipped with modern features, this inverter supports flexible implementation for residential solar installations, adhering to strict industry standards.

    Product Features

    High Efficiency and Certification

    With a top efficiency of 97.8% and CEC efficiency at 97.5%, the Solis 1P7.6K-4G-US-SPRT provides substantial energy conversion, maximizing solar output. It's CA Rule 21 compliant and UL 1741 SA certified, ensuring reliability and safety.

    Advanced MPPT Design

    The inverter supports advanced 3 MPPT designs, enhancing power tracking accuracy and stability, crucial for maximizing energy harvest even in fluctuating solar conditions.

    Integrated AFCI Protection

    Safety is paramount with its integrated Arc Fault Circuit Interruption (AFCI) feature, preventing electrical fires by quickly identifying and interrupting arc faults within the system.

    Rapid Shutdown Capability

    The built-in SunSpec certified module for rapid shutdown ensures compliance with NEC requirements, providing a secure and efficient solution for system and firefighter safety.

    Extended Warranty Options

    Offering a standard 10-year warranty with options for extensions, the Solis 1P7.6K-4G-US-SPRT delivers peace of mind alongside its advanced technological capabilities.

    How It Works

    This phase inverter efficiently converts DC power from solar panels into usable AC power for home use. With its multiple MPPTs, it optimizes power conversion even under varying sunlight conditions.

    DC Input System

    The inverter handles robust DC input gracefully with a maximum voltage of 600 V and a versatile MPPT voltage range of 100 - 500 V, making it compatible with a wide range of panel configurations.

    AC Output Performance

    It delivers a rated output power of 7.6 kW and works seamlessly with standard grid setups, supporting both 240 V and 208 V configurations for flexible installation.

    Communication and Connectivity

    Featuring RS485 communication and optional cellular and Wi-Fi options, the system ensures robust connectivity for monitoring and control.

    Specifications

    Model Name 1P7.6K-4G-US-SPRT
    Recommended Max. PV Power 9.1 kW
    Max. Input Voltage 600 V
    Rated Output Power 7.6 kW
    Efficiency Max. 97.8%, CEC 97.5%
    Dimensions (W*H*D) 13.1*28.8*9.8 in (333*732*249 mm)
    Weight 45.6 lbs (20.7 kg)
    Cooling Concept Natural Convection
    Operating Temperature -13°F to 140°F (-25°C to 60°C)
    Compliance UL 1741, IEEE 1547, and more
