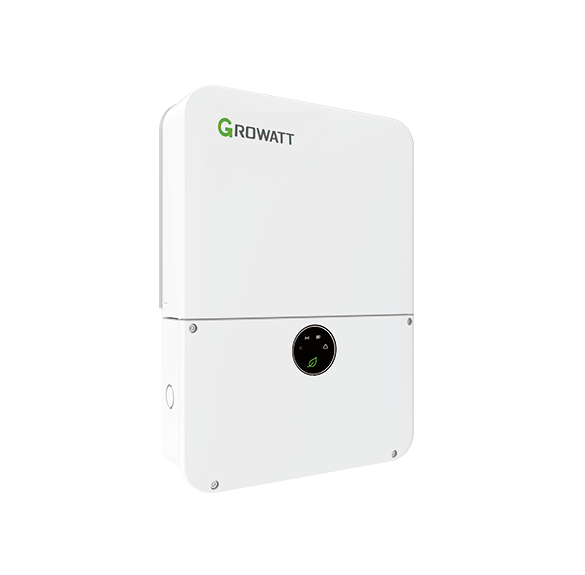

The Growatt MIN 6000TL-XH-US (WG5) is a 6.0kW battery-ready hybrid inverter with integrated revenue-grade meter and a WiFi/4G communication module including 5-year data plan — partial-home-backup capable.
Key Features
- Integrated revenue-grade meter (RGM)
- WiFi/4G module with 4G SIM + 5-year (10MB/month) data plan & cloud
- Integrated Tigo RSD transmitter for Tigo TS4-F MLPEs
- V2 hardware — Partial Home Backup with Growatt ATS 11400T-US
- Battery-ready: Growatt ARO/APX & LG Prime/Enblock HV batteries
Compatibility: Growatt ARO/APX & LG Prime/Enblock HV batteries; Tigo TS4-F MLPEs
Specifications
| Model | MIN 6000TL-XH-US (V2, WG5, RGM) |
| Part Number | DV01.DD82020 (WG5 config) |
| Rated AC Output | 6,000 W |
| Communication | WiFi/4G + 5-year data plan (WG5) |
| Metering | Integrated revenue-grade meter (RGM) |
| Rapid Shutdown | Integrated Tigo RSD transmitter (TRS-T) |
| Backup | Partial Home Backup (V2) — requires Growatt ATS |
| Dimensions (W×H×D) | 15.8 × 25.2 × 7.4 in (400 × 638 × 187 mm) |
| Weight | 33 lb (15 kg) |
| Enclosure | IP65/NEMA 4X |
| Certifications | UL1741SA/SB, IEEE1547, CA Rule 21, HECO, CEC listed |
Authorized Growatt distribution — full manufacturer warranty. Ships as single units via ground from Growatt USA (Eastvale, CA) or Louisville, KY.
| SKU | DV01.DD82020-WG5 |
|---|---|
| Manufacturer | Growatt |
