- SKU
- PES-SPS-SOL-10860
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.

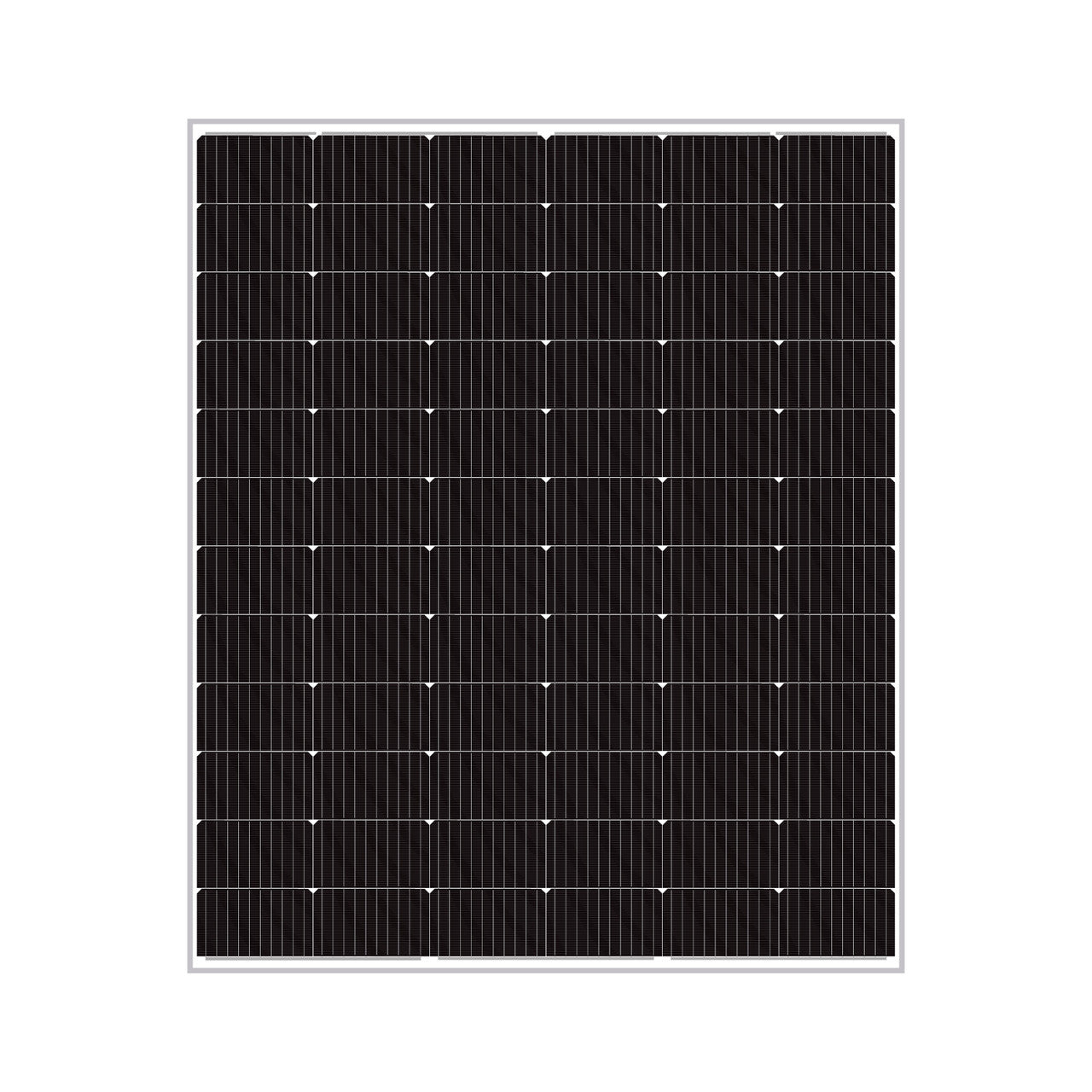

Type Monocrystalline Model No. JST-EBMH-545W-D Product Warranty 15 Years Power Warranty 10 Years of 90 %, 25 Years of 80 % Total Degradation Rate ⏳ 0.8 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 545 Wp Voltage at Maximum Power (Vmpp) 41.4 V Current at Maximum Power (Impp) 13.17 A Open Circuit Voltage (Voc) 49.6 V Short Circuit Current (Isc) 13.93 A Panel Efficiency 21.3 % Maximum Power (Pmax) 406 Wp Voltage at Maximum Power (Vmpp) 38.6 V Current at Maximum Power (Impp) 10.54 A Open Circuit Voltage (Voc) 46.4 V Short Circuit Current (Isc) 11.23 A Temperature 41±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2279x1134x35 mm Weight 29 kg Cell Size 182×182 mm Cell Number 144 Frame Type Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length
Technology: PERC
Power Range: 540 ~ 560 Wp
Panel Efficiency: 21.1 ~ 21.9 %
Weight: 29 kg
Seller Name: Just Solar Group Limited
Country: China
| SKU | PES-SPS-SOL-10860 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Wattage |
No documents available for this product. Contact us to request documentation.
