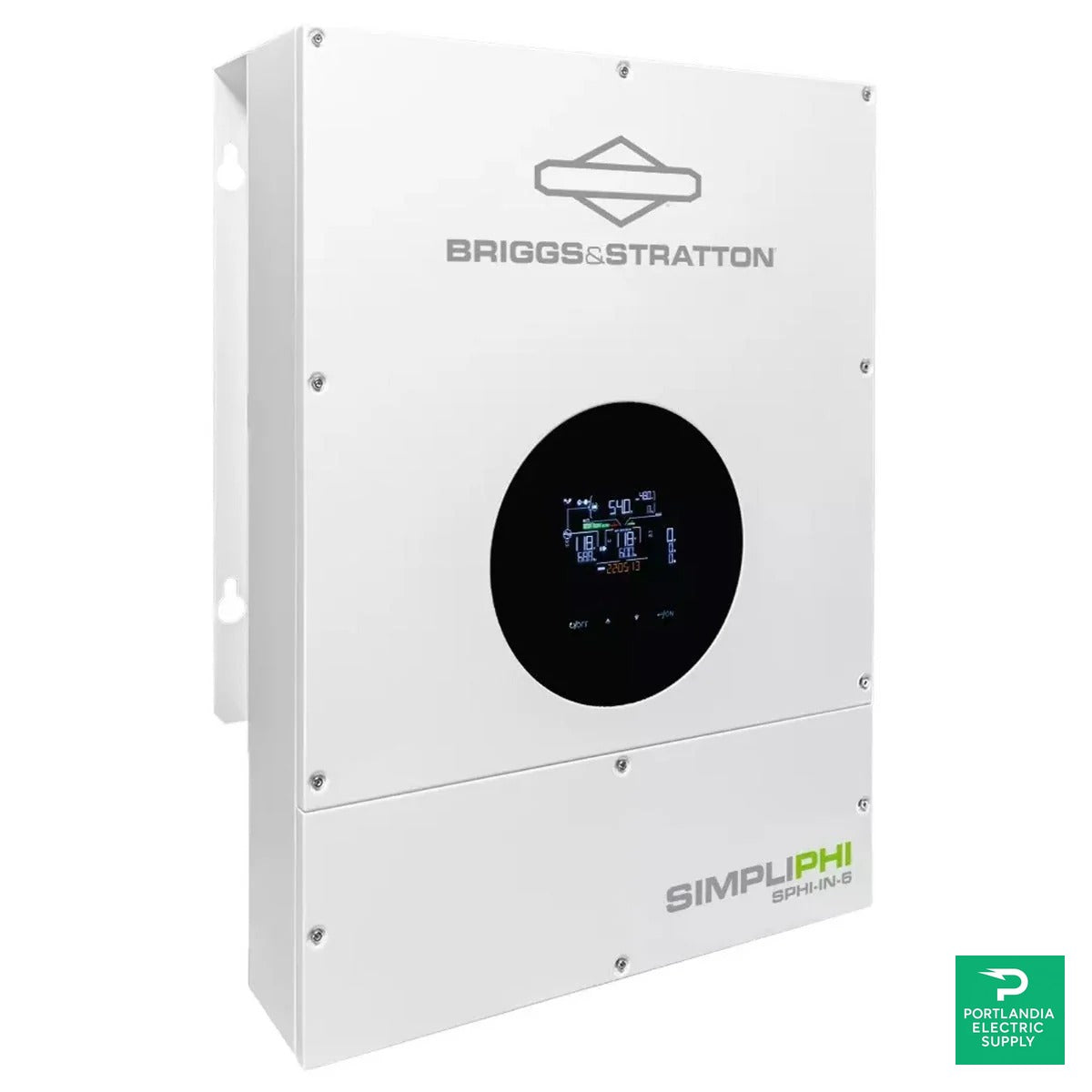

Simpliphi AccESS 11.4kWh Energy Storage System – 12kW Inverter with Integrated Charge Controllers - A-3PHI-SA-12

Simpliphi AccESS 11.4kWh Energy Storage System – 12kW Inverter with Integrated Charge Controllers - A-3PHI-SA-12

In Stock

Get yours today!

9+ sold

In the last 7 days

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Trusted by 1,000s of Contractors & Installers

In Stock

SKU PES-ESS-AIO-0027

Simpliphi AccESS 11.4kWh Energy Storage System – 12kW Inverter with Integrated Charge Controllers - A-3PHI-SA-12

OEM Authorized Dealer BABA Compliant Full OEM Warranty 7-10 Business Day Delivery

$22,884.01 USD

$ $22,884.01 USD

Sale Sold out

Quantity

Secure Payment Methods

In Stock

Get yours today!

9+ sold

In the last 7 days

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Specifications

Capacity 11.4kWh

Product Category Inverter

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

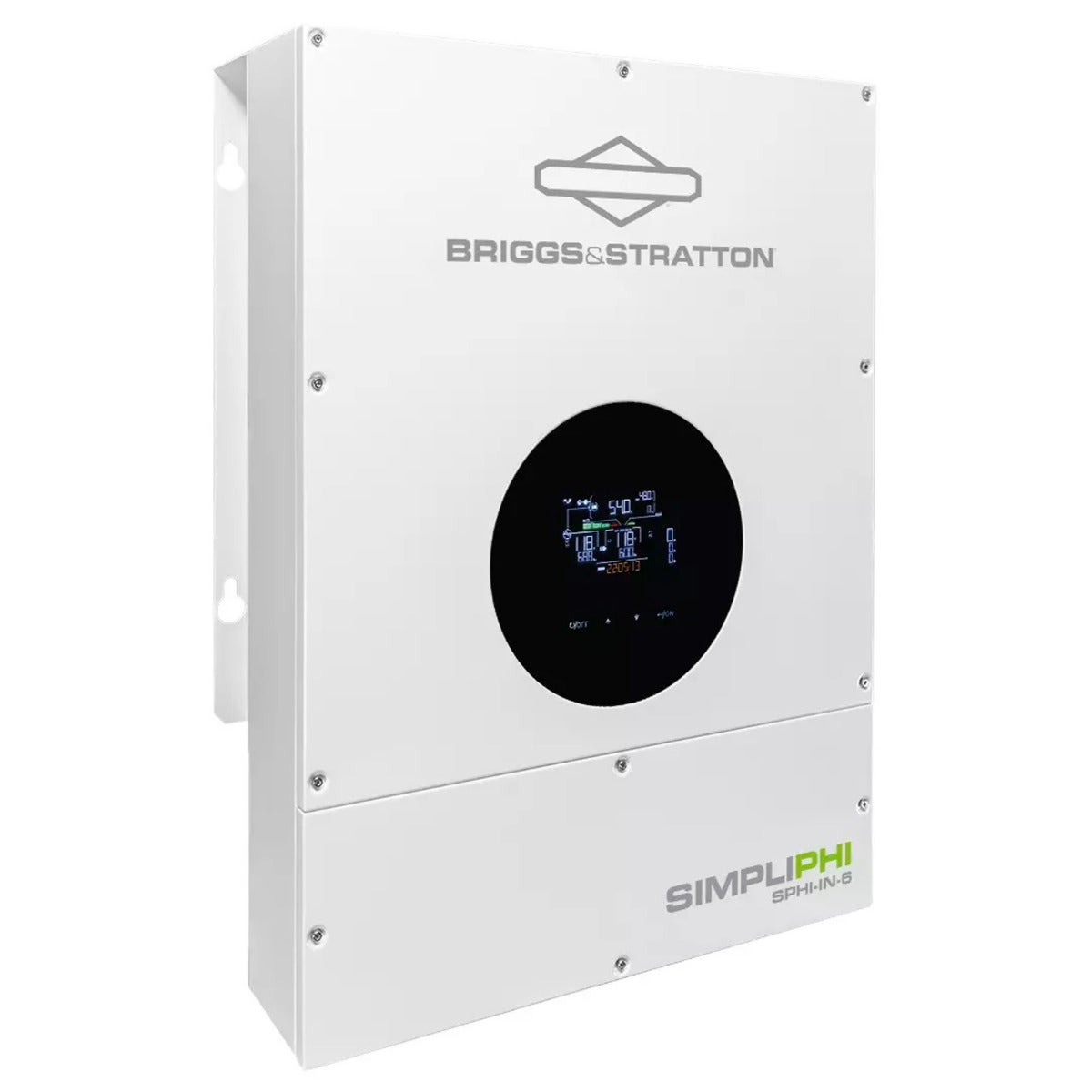

SimpliPhi AccESS™ 11.4 kWh (3× PHI 3.8) with Sol-Ark 12K

Model: A-3PHI-SA-12 • Chemistry: LFP (LiFePO₄) • Inverter: Sol-Ark 12K hybrid (AC/DC-coupled) • Enclosure: NEMA 3R outdoor rated

What it is

AccESS is a fully integrated, pre-programmed energy storage cabinet combining three PHI 3.8 kWh (48 V) batteries with a Sol-Ark 12K inverter/charger and dual MPPT charge controllers for fast installs, closed-loop comms, and UL-9540 system certification.

Key Specs

Total Energy	11.4 kWh rated (usable ~9.1 kWh @ 80% DoD)
Inverter	Sol-Ark 12K; 12 kW PV input; ~9 kW AC continuous; AC/DC-coupled; generator port; smart-loads
Enclosure	NEMA 3R (outdoor); 29.5″ W × 76″ H × 20″ D; ~858 lb installed (cabinet + batteries)
Battery Modules	PHI-3.8 48 V LFP (≈86 lb each), 75 Ah; 10,000+ cycles @ 80% DoD
PV (DC-coupled)	Dual MPPT (1–6 strings; 500 Vdc max Voc); 12 kW max simultaneous
Certifications	UL 9540 (system), UL 1973 (batteries), UL 1741 SA; Rapid Shutdown compliant
Warranty	Cabinet 2 yr; Batteries 10 yr

What’s Included

(3) PHI-3.8 48 V LFP batteries with integrated BMS
Sol-Ark 12K inverter/charger with dual MPPTs (AC/DC-coupled)
Pre-wired breakers, combiner, cabling, and communications
Energy management & monitoring

Documents

What is your return policy?

What’s covered by your return policy?

How long will it take to receive my order?

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

SimpliPhi AccESS™ 11.4 kWh (3× PHI 3.8) with Sol-Ark 12K

Model: A-3PHI-SA-12 • Chemistry: LFP (LiFePO₄) • Inverter: Sol-Ark 12K hybrid (AC/DC-coupled) • Enclosure: NEMA 3R outdoor rated

What it is

Key Specs

Total Energy	11.4 kWh rated (usable ~9.1 kWh @ 80% DoD)
Inverter	Sol-Ark 12K; 12 kW PV input; ~9 kW AC continuous; AC/DC-coupled; generator port; smart-loads
Enclosure	NEMA 3R (outdoor); 29.5″ W × 76″ H × 20″ D; ~858 lb installed (cabinet + batteries)
Battery Modules	PHI-3.8 48 V LFP (≈86 lb each), 75 Ah; 10,000+ cycles @ 80% DoD
PV (DC-coupled)	Dual MPPT (1–6 strings; 500 Vdc max Voc); 12 kW max simultaneous
Certifications	UL 9540 (system), UL 1973 (batteries), UL 1741 SA; Rapid Shutdown compliant
Warranty	Cabinet 2 yr; Batteries 10 yr

What’s Included

(3) PHI-3.8 48 V LFP batteries with integrated BMS
Sol-Ark 12K inverter/charger with dual MPPTs (AC/DC-coupled)
Pre-wired breakers, combiner, cabling, and communications
Energy management & monitoring

Documents
