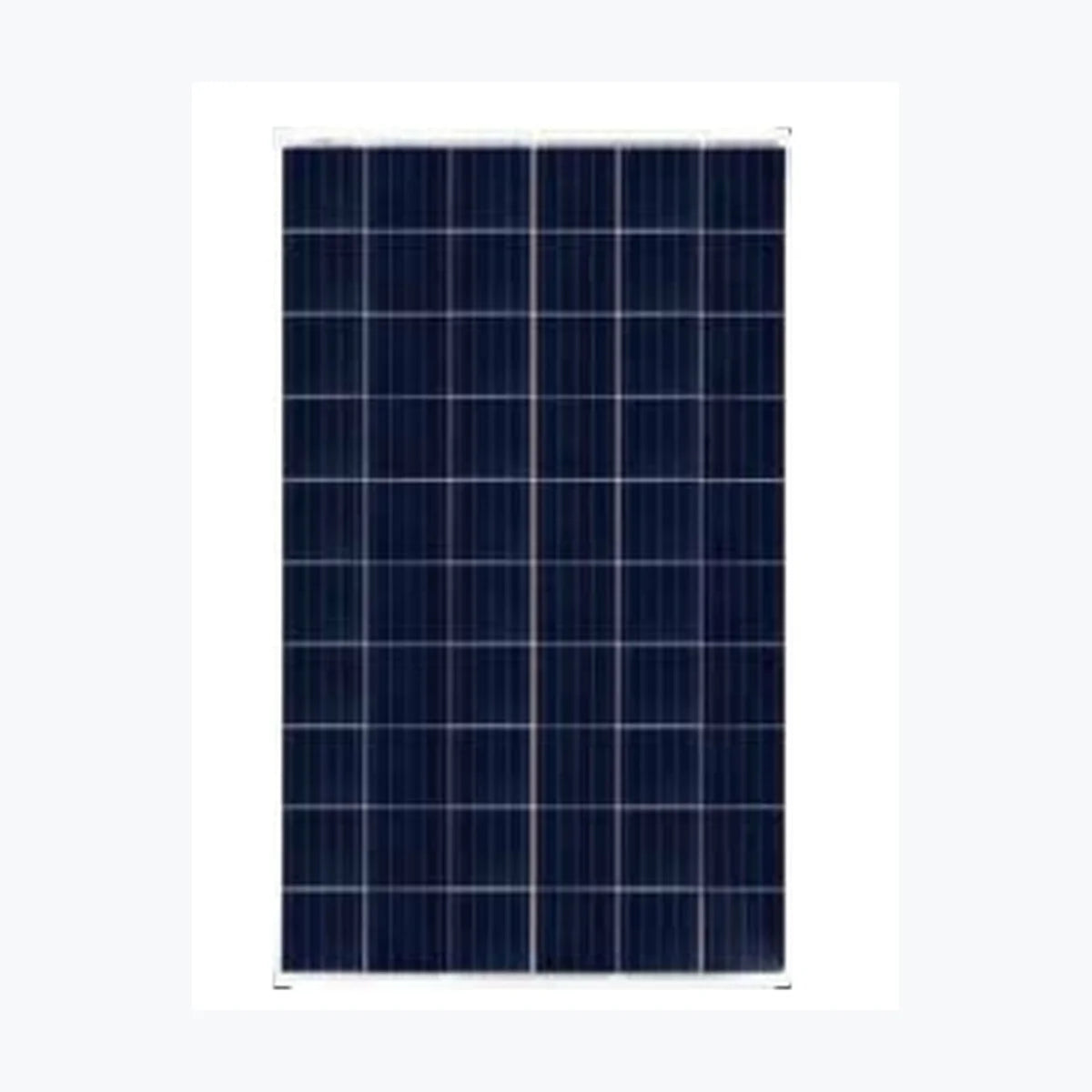

    5Star Solar WXS-P60-275A

    5Star Solar WXS-P60-275A

    $55.00 USD
    $55.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0124
    • Container price: $29,700.00 USD
    • Container qty: 720
    • Pallet price: $1,402.50 USD
    • Pallet qty: 30
    • Unit price: $55.00 USD
    View full details

    Product Description

    • Type Polycrystalline Model No. WXS-P60-275A Product Warranty 10 Years Power Warranty 25 Years of 80 % Total Degradation Rate ⏳ 0.8 % Maximum Power (Pmax) 275 Wp Voltage at Maximum Power (Vmpp) 31.4 V Current at Maximum Power (Impp) 8.76 A Open Circuit Voltage (Voc) 38.5 V Short Circuit Current (Isc) 9.38 A Maximum System Voltage 1500 V Panel Dimension (H/W/D) 1658x992x6 mm Weight 23 kg Cell Size 156.75×156.75 mm Cell Number 60 Glass Type Tempered Glass Thickness 2.5 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet

      Power Range: 23 kg
      Panel Efficiency: 270 ~ 285 Wp
      Seller Name: Guangdong Fivestar Solar Energy Co., Ltd.
      Country: China
