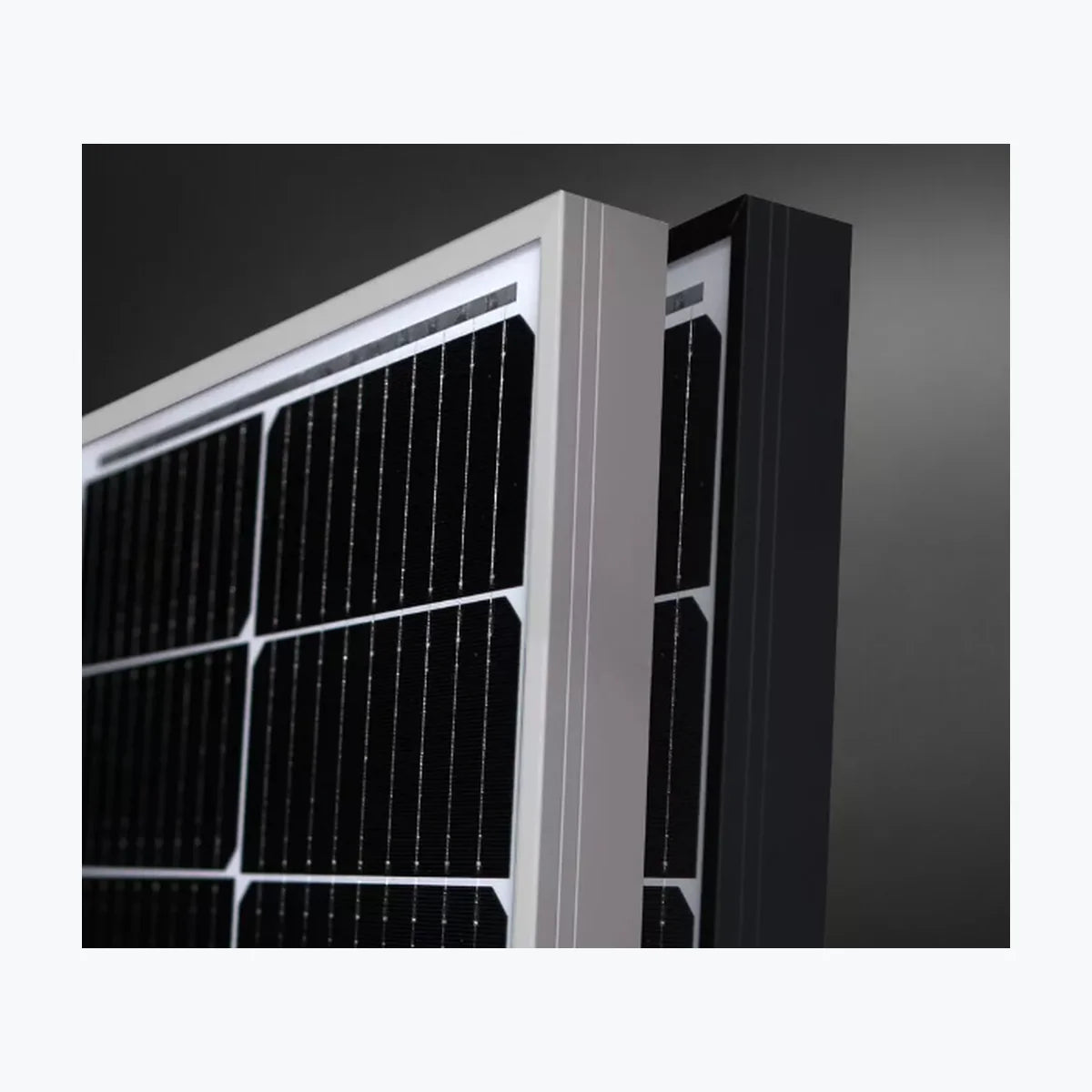

AEG Solar AS-M120X-H(M10) / AS-M120XZ-H(M10) 455
PayPal Pay in 4 interest-free payments of $22.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-0294
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. AS-M120X-H(M10) / AS-M120XZ-H(M10) 455 Product Warranty 15 Years Power Warranty 1 Years of 98 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 455 Wp Voltage at Maximum Power (Vmpp) 34.06 V Current at Maximum Power (Impp) 13.36 A Open Circuit Voltage (Voc) 41.33 V Short Circuit Current (Isc) 13.93 A Panel Efficiency 21.08 % Maximum Power (Pmax) 339 Wp Voltage at Maximum Power (Vmpp) 31.91 V Current at Maximum Power (Impp) 10.61 A Open Circuit Voltage (Voc) 39.01 V Short Circuit Current (Isc) 11.25 A Temperature 41±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1903x1134x35 mm Weight 24.2 kg Cell Number 120 Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Diodes 3 Junc
Power Range: 450 ~ 460 Wp
Panel Efficiency: 20.85 ~ 21.32 %
Weight: 24.2 kg
Seller Name: AEG / Solar Solutions AG
Country: Switzerland
| SKU | PES-SPS-SOL-0294 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
