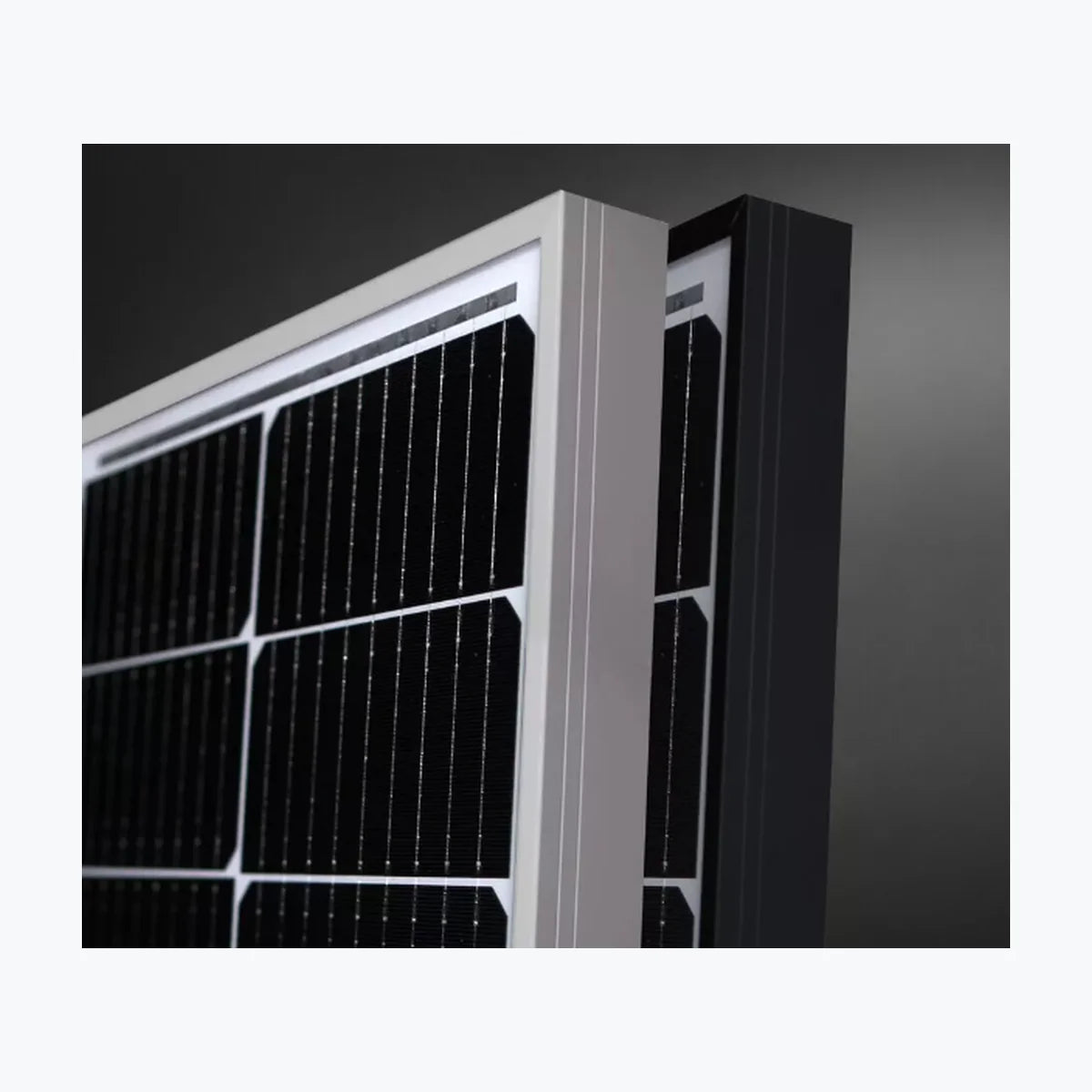

    AEG Solar AS-M120X-H(M10) / AS-M120XZ-H(M10) 460

    AEG Solar AS-M120X-H(M10) / AS-M120XZ-H(M10) 460

    $92.00 USD
    $92.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0295
    • Container price: $49,680.00 USD
    • Container qty: 720
    • Pallet price: $2,346.00 USD
    • Pallet qty: 30
    • Unit price: $92.00 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AS-M120X-H(M10) / AS-M120XZ-H(M10) 460 Product Warranty 15 Years Power Warranty 1 Years of 98 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 460 Wp Voltage at Maximum Power (Vmpp) 34.2 V Current at Maximum Power (Impp) 13.45 A Open Circuit Voltage (Voc) 41.48 V Short Circuit Current (Isc) 14.01 A Panel Efficiency 21.32 % Maximum Power (Pmax) 342 Wp Voltage at Maximum Power (Vmpp) 32.07 V Current at Maximum Power (Impp) 10.67 A Open Circuit Voltage (Voc) 39.15 V Short Circuit Current (Isc) 11.32 A Temperature 41±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1903x1134x35 mm Weight 24.2 kg Cell Number 120 Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Diodes 3 Junct

      Power Range: 450 ~ 460 Wp
      Panel Efficiency: 20.85 ~ 21.32 %
      Weight: 24.2 kg
      Seller Name: AEG / Solar Solutions AG
      Country: Switzerland
