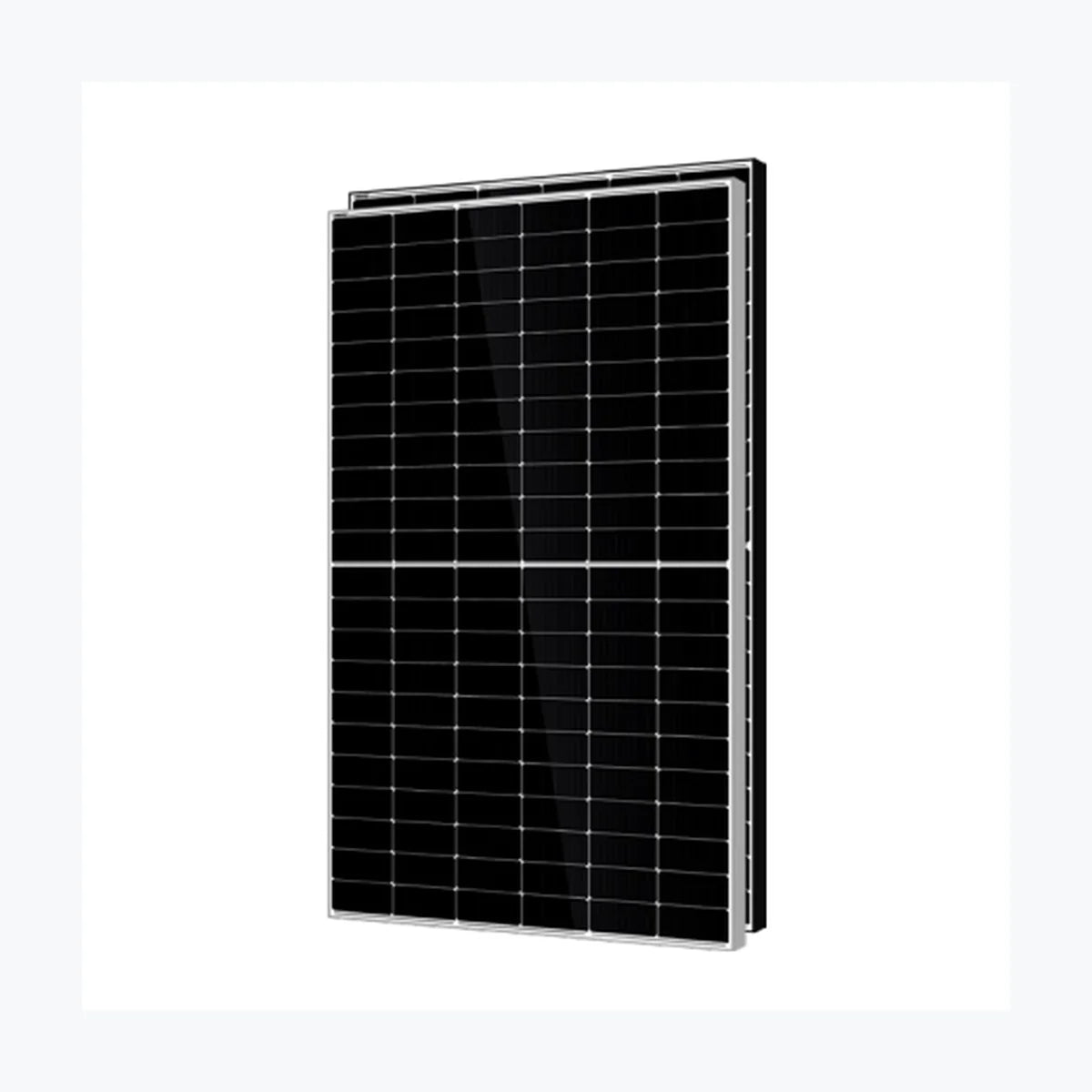

    AEG Solar AS-M1322-H(M10)-505

    AEG Solar AS-M1322-H(M10)-505

    $101.00 USD
    $101.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0298
    • Container price: $54,540.00 USD
    • Container qty: 720
    • Pallet price: $2,575.50 USD
    • Pallet qty: 30
    • Unit price: $101.00 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AS-M1322-H(M10)-505 Product Warranty 15 Years Power Warranty 1 Years of 98 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 505 Wp Voltage at Maximum Power (Vmpp) 38.01 V Current at Maximum Power (Impp) 13.29 A Open Circuit Voltage (Voc) 45.73 V Short Circuit Current (Isc) 14.14 A Panel Efficiency 21.27 % Maximum Power (Pmax) 383 Wp Voltage at Maximum Power (Vmpp) 36.34 V Current at Maximum Power (Impp) 10.54 A Open Circuit Voltage (Voc) 43.44 V Short Circuit Current (Isc) 11.34 A Temperature 42±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.330 %/°C Temperature Coefficient of Voc -0.246 %/°C Temperature Coefficient of Isc 0.0448 %/°C Maximum System Voltage 1000 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2094x1134x35 mm Weight 26 kg Cell Size 182×91 mm Cell Number 132 Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Diodes 3 Ju

      Power Range: 495 ~ 505 Wp
      Panel Efficiency: 20.85 ~ 21.27 %
      Weight: 26 kg
      Seller Name: AEG / Solar Solutions AG
      Country: Switzerland
