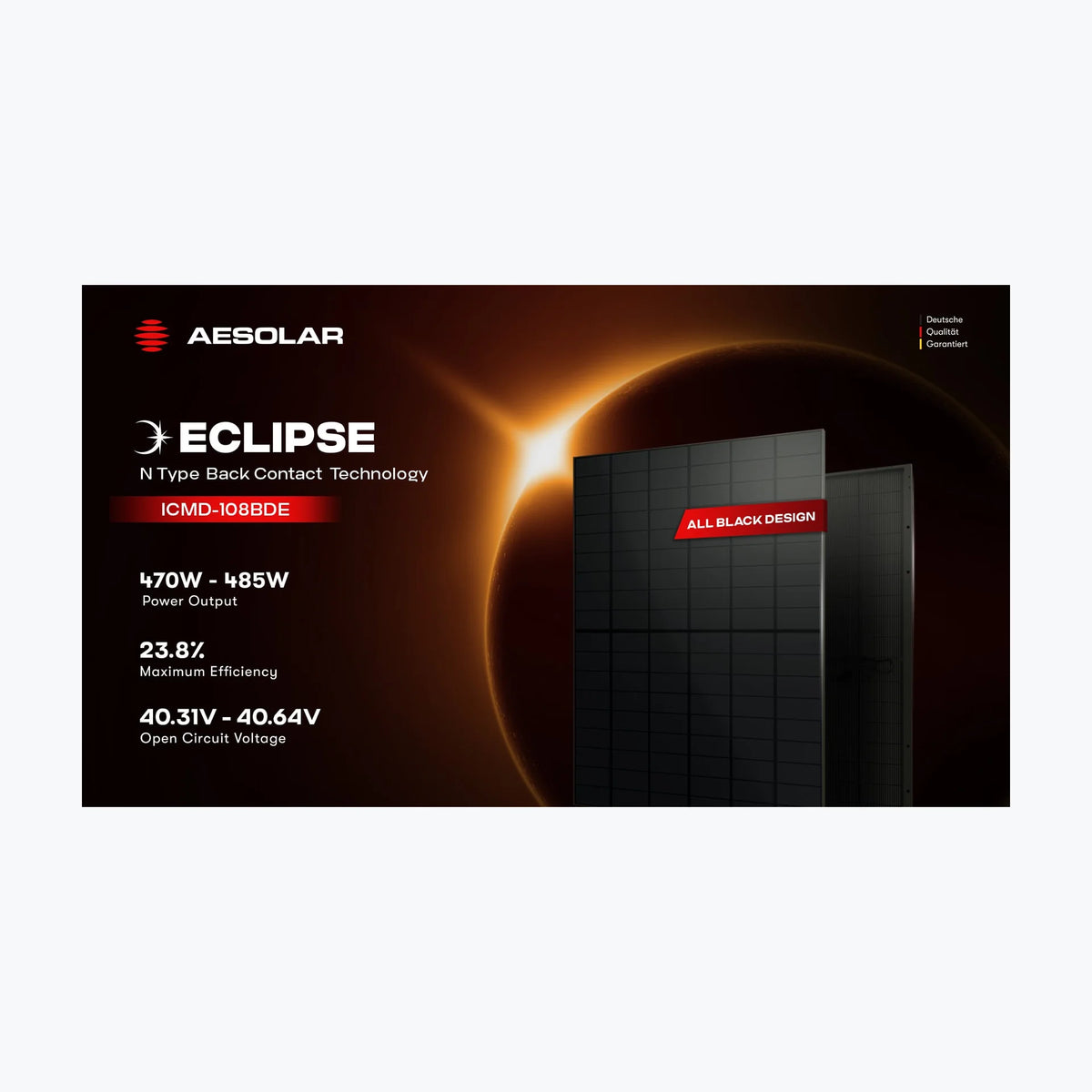

Aesolar AE475ICMD-108BDE
PayPal Pay in 4 interest-free payments of $23.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-0445
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. AE475ICMD-108BDE Product Warranty 30 Years Power Warranty 30 Years of 88.85 % Total Degradation Rate ⏳ 0.37 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 475 Wp Voltage at Maximum Power (Vmpp) 33.4 V Current at Maximum Power (Impp) 14.23 A Open Circuit Voltage (Voc) 40.42 V Short Circuit Current (Isc) 14.88 A Panel Efficiency 23.3 % Maximum Power (Pmax) 361 Wp Voltage at Maximum Power (Vmpp) 31.72 V Current at Maximum Power (Impp) 11.39 A Open Circuit Voltage (Voc) 38.39 V Short Circuit Current (Isc) 11.93 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.26 %/°C Temperature Coefficient of Voc -0.20 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1800x1134x30 mm Weight 23.5 kg Cell Size 210×210 mm Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Encapsulant Type POE Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 400 mm Download Manufacturer's PDF Datasheet
Technology: Back Contact
Power Range: 470 ~ 485 Wp
Panel Efficiency: 23 ~ 23.8 %
Weight: 23.5 kg
Seller: AE Alternative Energy GmbH
Country: Germany
| SKU | PES-SPS-SOL-0445 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
