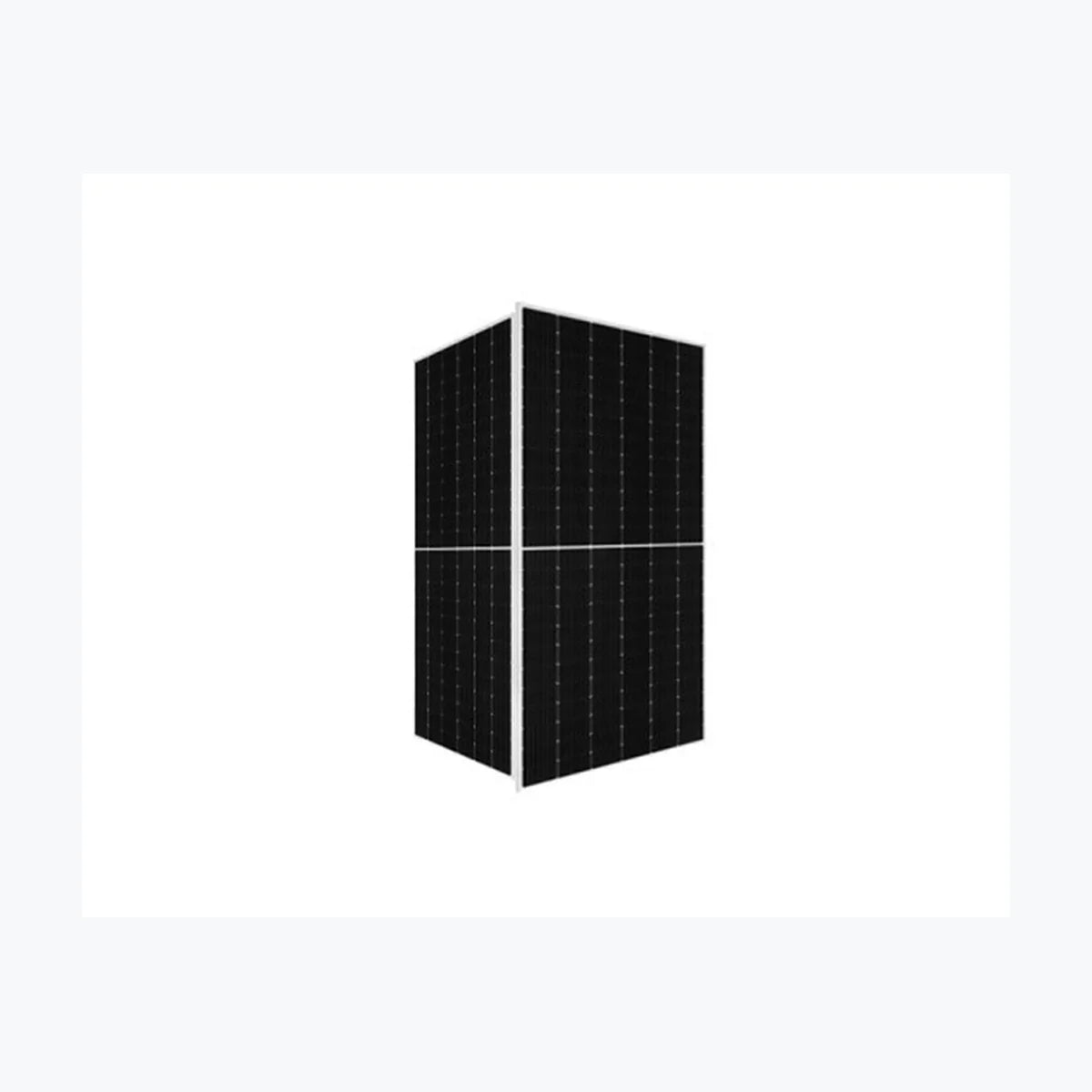

Aidu Energy VE-570
PayPal Pay in 4 interest-free payments of $28.50 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-0845
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. VE-570 Product Warranty 12 Years Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 570 Wp Voltage at Maximum Power (Vmpp) 42.7 V Current at Maximum Power (Impp) 13.35 A Open Circuit Voltage (Voc) 51.8 V Short Circuit Current (Isc) 13.81 A Panel Efficiency 22.1 % Maximum Power (Pmax) 431 Wp Voltage at Maximum Power (Vmpp) 40.4 V Current at Maximum Power (Impp) 10.68 A Open Circuit Voltage (Voc) 49 V Short Circuit Current (Isc) 11.14 A Temperature 41±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 27.6 kg Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer'
Technology: TOPCon, N-type
Power Range: 570 ~ 595 Wp
Panel Efficiency: 22.1 ~ 23 %
Weight: 27.6 kg
Seller Name: Aidu Energy Co., Ltd
Country: China
| SKU | PES-SPS-SOL-0845 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
