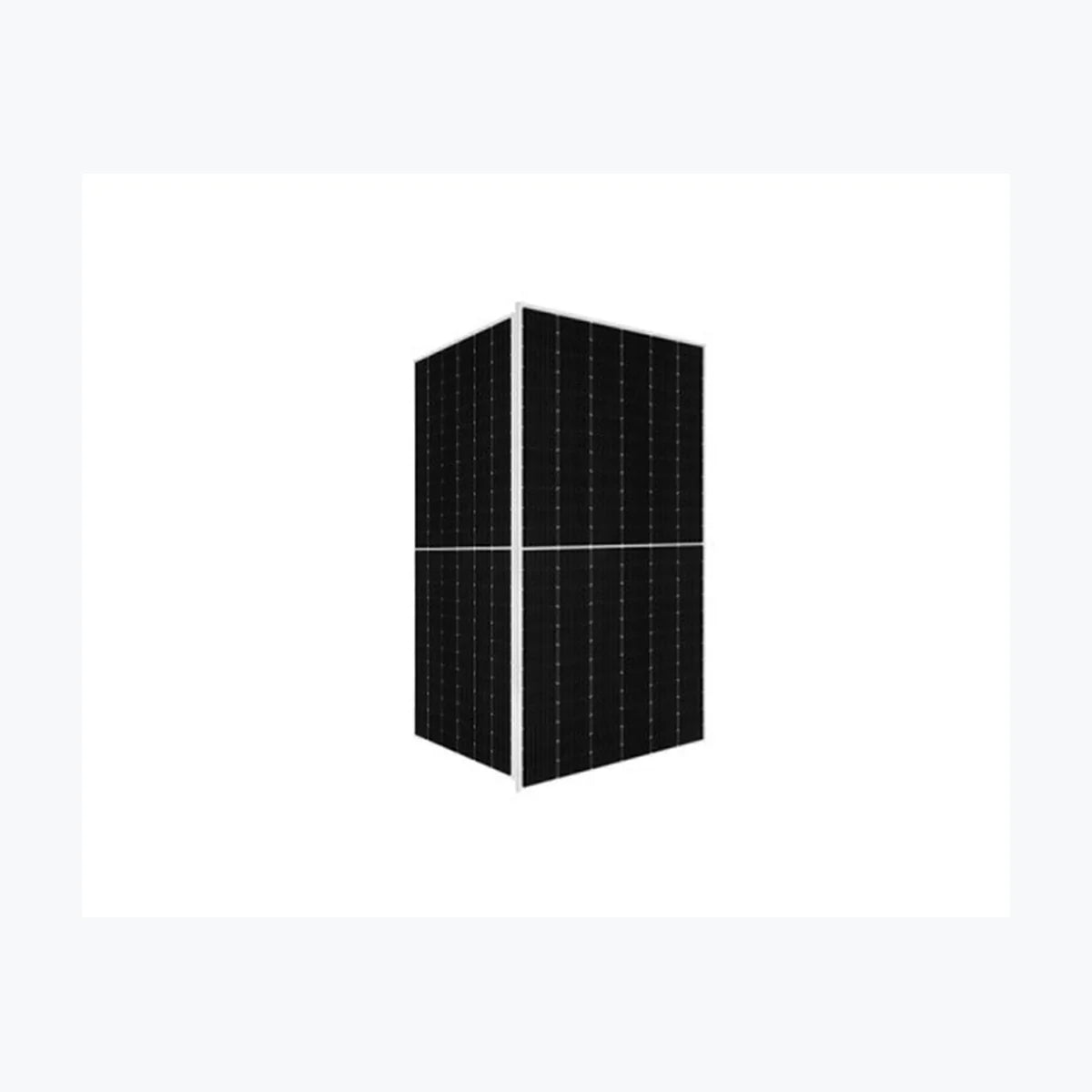

Aidu Energy VE-580
Aidu Energy VE-580
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-0847
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. VE-580 Product Warranty 12 Years Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 580 Wp Voltage at Maximum Power (Vmpp) 43.1 V Current at Maximum Power (Impp) 13.46 A Open Circuit Voltage (Voc) 52.2 V Short Circuit Current (Isc) 13.93 A Panel Efficiency 22.5 % Maximum Power (Pmax) 439 Wp Voltage at Maximum Power (Vmpp) 40.7 V Current at Maximum Power (Impp) 10.77 A Open Circuit Voltage (Voc) 49.4 V Short Circuit Current (Isc) 11.23 A Temperature 41±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 27.6 kg Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacture
Technology: TOPCon, N-type
Power Range: 570 ~ 595 Wp
Panel Efficiency: 22.1 ~ 23 %
Weight: 27.6 kg
Seller Name: Aidu Energy Co., Ltd
Country: China -
