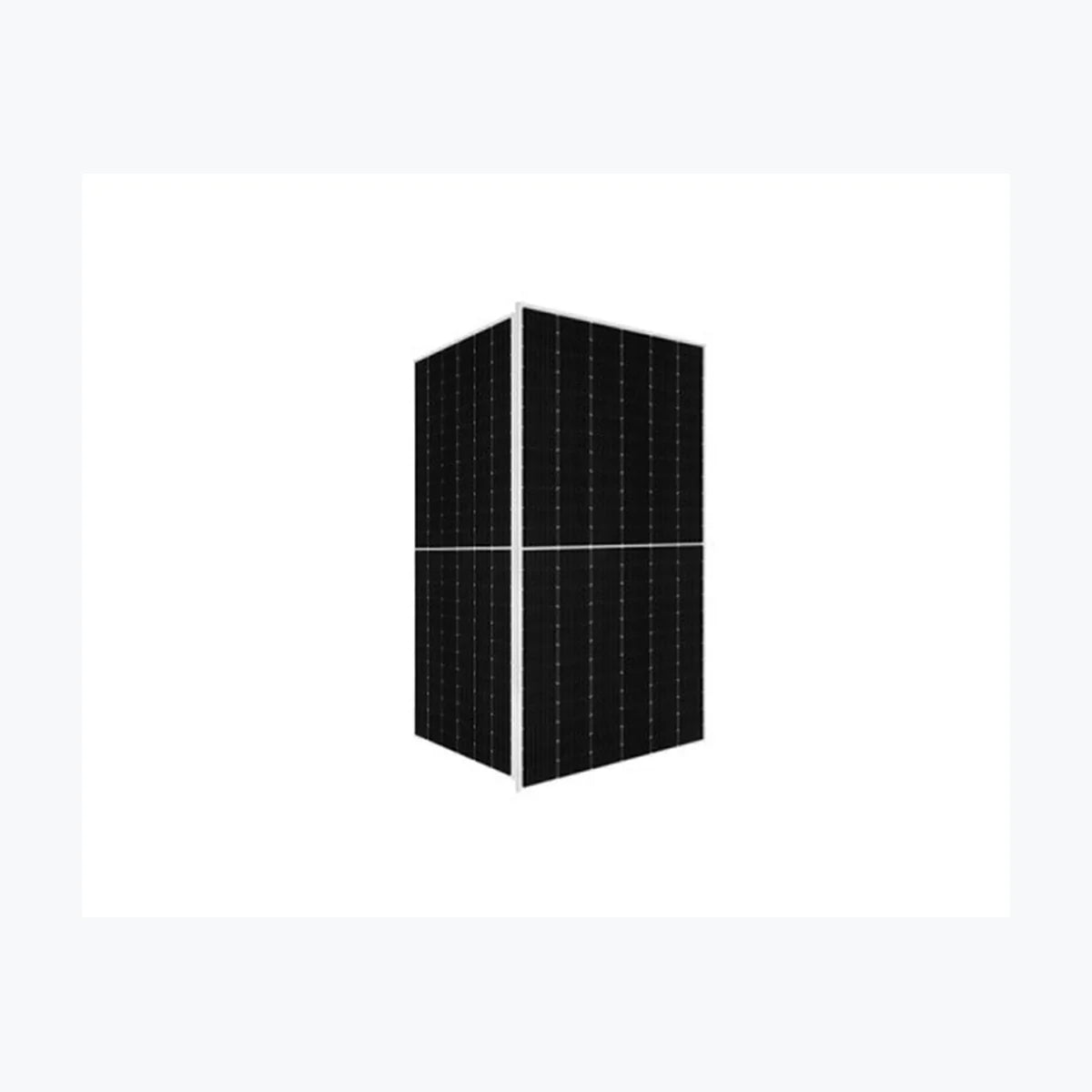

    Aidu Energy VE-585

    Aidu Energy VE-585

    $117.00 USD
    $117.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0848
    • Container price: $63,180.00 USD
    • Container qty: 720
    • Pallet price: $2,983.50 USD
    • Pallet qty: 30
    • Unit price: $117.00 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. VE-585 Product Warranty 12 Years Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 585 Wp Voltage at Maximum Power (Vmpp) 43.3 V Current at Maximum Power (Impp) 13.52 A Open Circuit Voltage (Voc) 52.4 V Short Circuit Current (Isc) 14 A Panel Efficiency 22.6 % Maximum Power (Pmax) 443 Wp Voltage at Maximum Power (Vmpp) 40.9 V Current at Maximum Power (Impp) 10.81 A Open Circuit Voltage (Voc) 49.6 V Short Circuit Current (Isc) 11.29 A Temperature 41±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 27.6 kg Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer's

      Technology: TOPCon, N-type
      Power Range: 570 ~ 595 Wp
      Panel Efficiency: 22.1 ~ 23 %
      Weight: 27.6 kg
      Seller Name: Aidu Energy Co., Ltd
      Country: China
