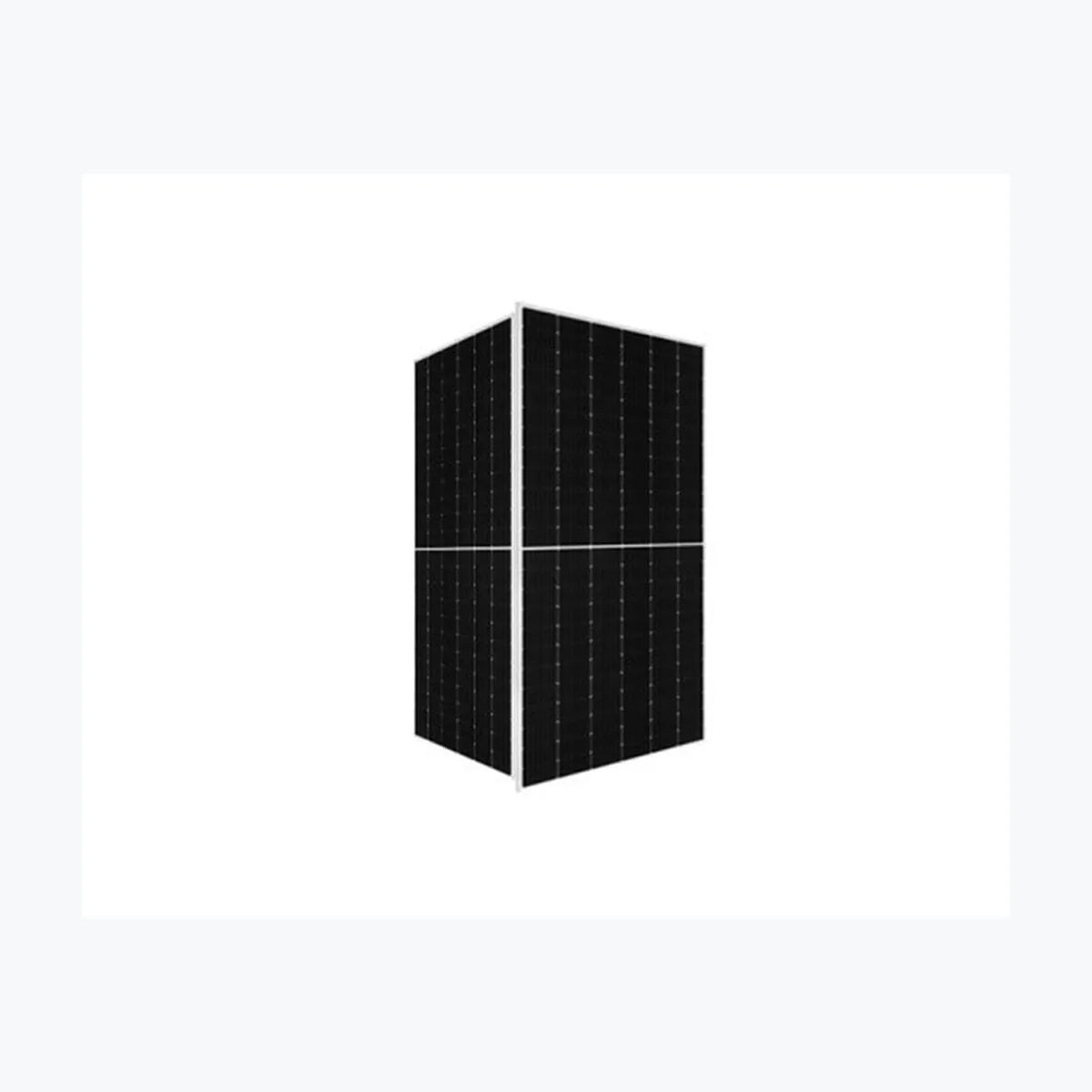

    Aidu Energy VE-640

    Aidu Energy VE-640

    $128.00 USD
    $128.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0859
    • Container price: $69,120.00 USD
    • Container qty: 720
    • Pallet price: $3,264.00 USD
    • Pallet qty: 30
    • Unit price: $128.00 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. VE-640 Product Warranty 12 Years Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 640 Wp Voltage at Maximum Power (Vmpp) 36.5 V Current at Maximum Power (Impp) 17.54 A Open Circuit Voltage (Voc) 43.7 V Short Circuit Current (Isc) 18.51 A Panel Efficiency 22.6 % Maximum Power (Pmax) 484 Wp Voltage at Maximum Power (Vmpp) 34.5 V Current at Maximum Power (Impp) 14.03 A Open Circuit Voltage (Voc) 41.4 V Short Circuit Current (Isc) 14.93 A Temperature 41±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 2172x1303x33 mm Weight 34.5 kg Cell Number 120 Glass Type Anti-reflection Coating Glass Thickness 2.0 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer's PDF Data

      Technology: Bifacial, TOPCon, N-type
      Power Range: 620 ~ 650 Wp
      Panel Efficiency: 21.9 ~ 23 %
      Weight: 34.5 kg
      Seller Name: Aidu Energy Co., Ltd
      Country: China
