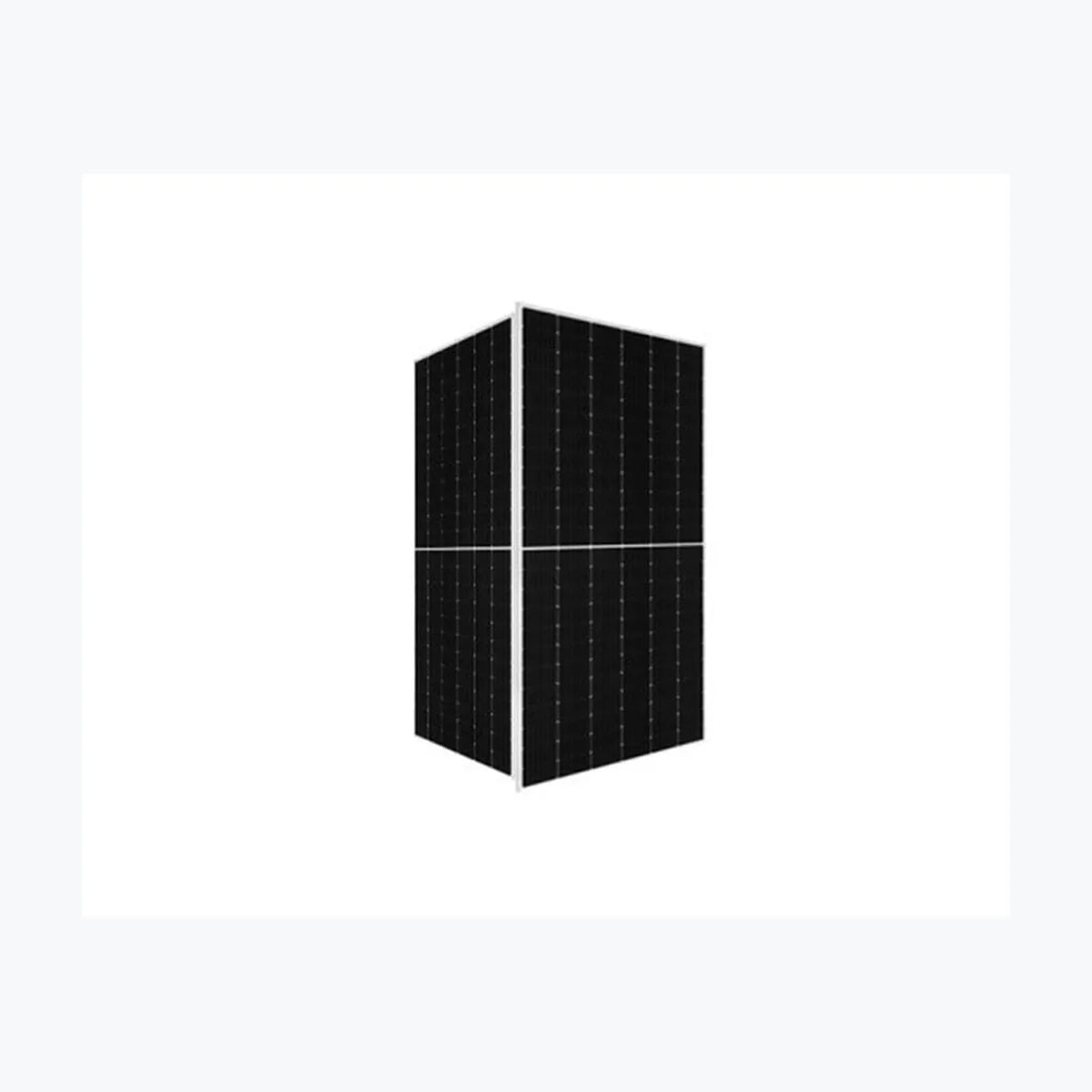

    Aidu Energy VE-650

    Aidu Energy VE-650

    $130.00 USD
    $130.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0861
    • Container price: $70,200.00 USD
    • Container qty: 720
    • Pallet price: $3,315.00 USD
    • Pallet qty: 30
    • Unit price: $130.00 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. VE-650 Product Warranty 12 Years Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 650 Wp Voltage at Maximum Power (Vmpp) 36.9 V Current at Maximum Power (Impp) 17.62 A Open Circuit Voltage (Voc) 44.1 V Short Circuit Current (Isc) 18.61 A Panel Efficiency 23 % Maximum Power (Pmax) 492 Wp Voltage at Maximum Power (Vmpp) 34.9 V Current at Maximum Power (Impp) 14.09 A Open Circuit Voltage (Voc) 41.8 V Short Circuit Current (Isc) 15.01 A Temperature 41±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 2172x1303x33 mm Weight 34.5 kg Cell Number 120 Glass Type Anti-reflection Coating Glass Thickness 2.0 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer's PDF Datash

      Technology: Bifacial, TOPCon, N-type
      Power Range: 620 ~ 650 Wp
      Panel Efficiency: 21.9 ~ 23 %
      Weight: 34.5 kg
      Seller Name: Aidu Energy Co., Ltd
      Country: China
