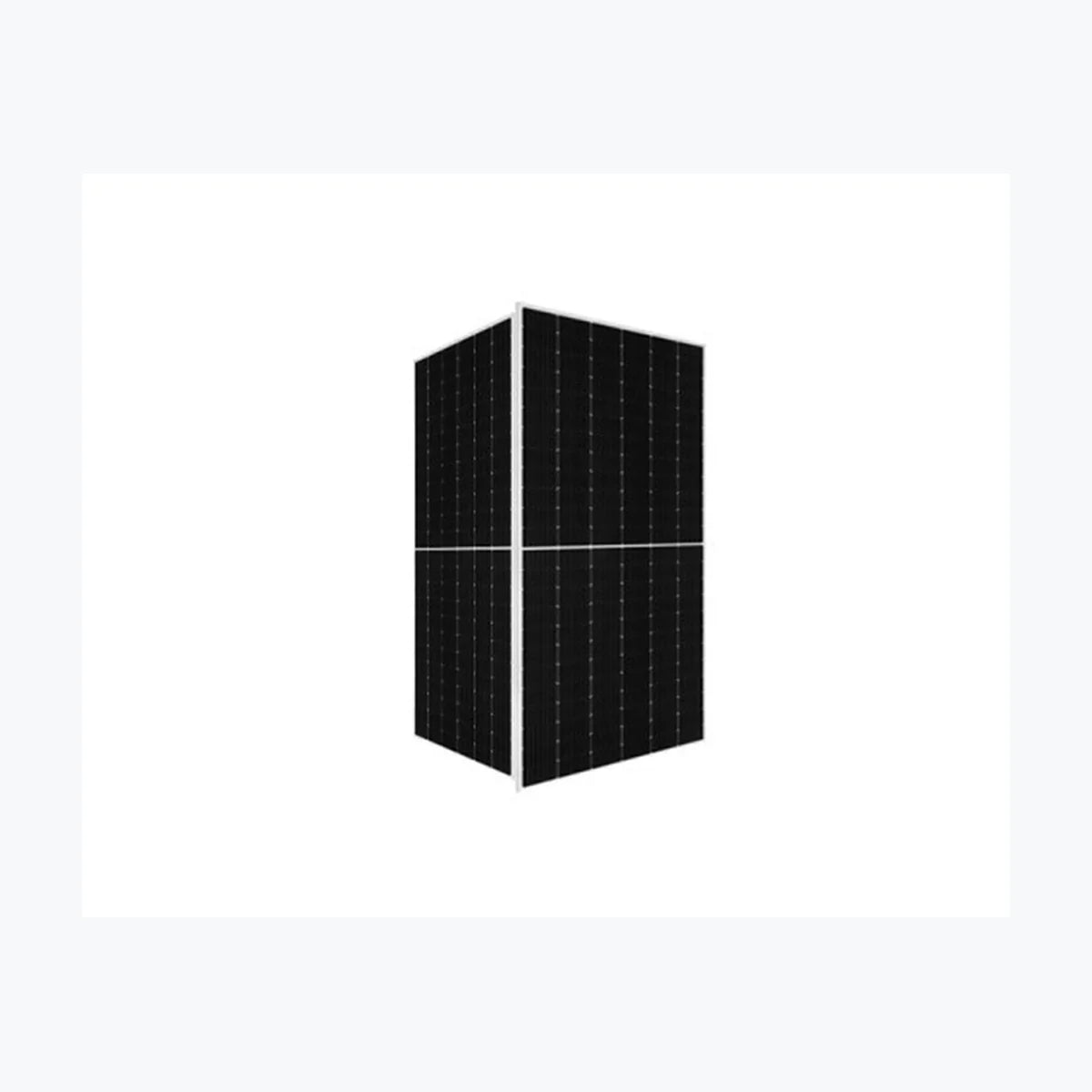

    Aidu Energy VE-685

    Aidu Energy VE-685

    $137.00 USD
    $137.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0864
    • Container price: $73,980.00 USD
    • Container qty: 720
    • Pallet price: $3,493.50 USD
    • Pallet qty: 30
    • Unit price: $137.00 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. VE-685 Product Warranty 12 Years Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 685 Wp Voltage at Maximum Power (Vmpp) 39.4 V Current at Maximum Power (Impp) 17.39 A Open Circuit Voltage (Voc) 47.3 V Short Circuit Current (Isc) 18.34 A Panel Efficiency 22.1 % Maximum Power (Pmax) 518 Wp Voltage at Maximum Power (Vmpp) 37.2 V Current at Maximum Power (Impp) 13.91 A Open Circuit Voltage (Voc) 44.8 V Short Circuit Current (Isc) 14.79 A Temperature 41±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 2384x1303x33 mm Weight 37.8 kg Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 2.0 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer's PDF Data

      Technology: Bifacial, TOPCon, N-type
      Power Range: 675 ~ 705 Wp
      Panel Efficiency: 21.7 ~ 22.7 %
      Weight: 37.8 kg
      Seller Name: Aidu Energy Co., Ltd
      Country: China
