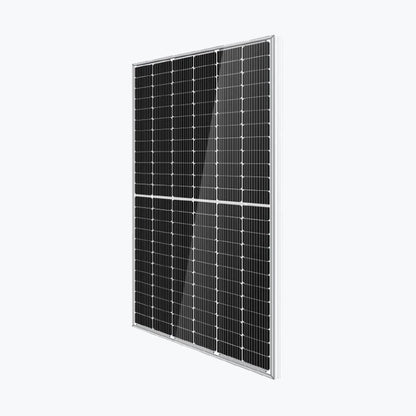

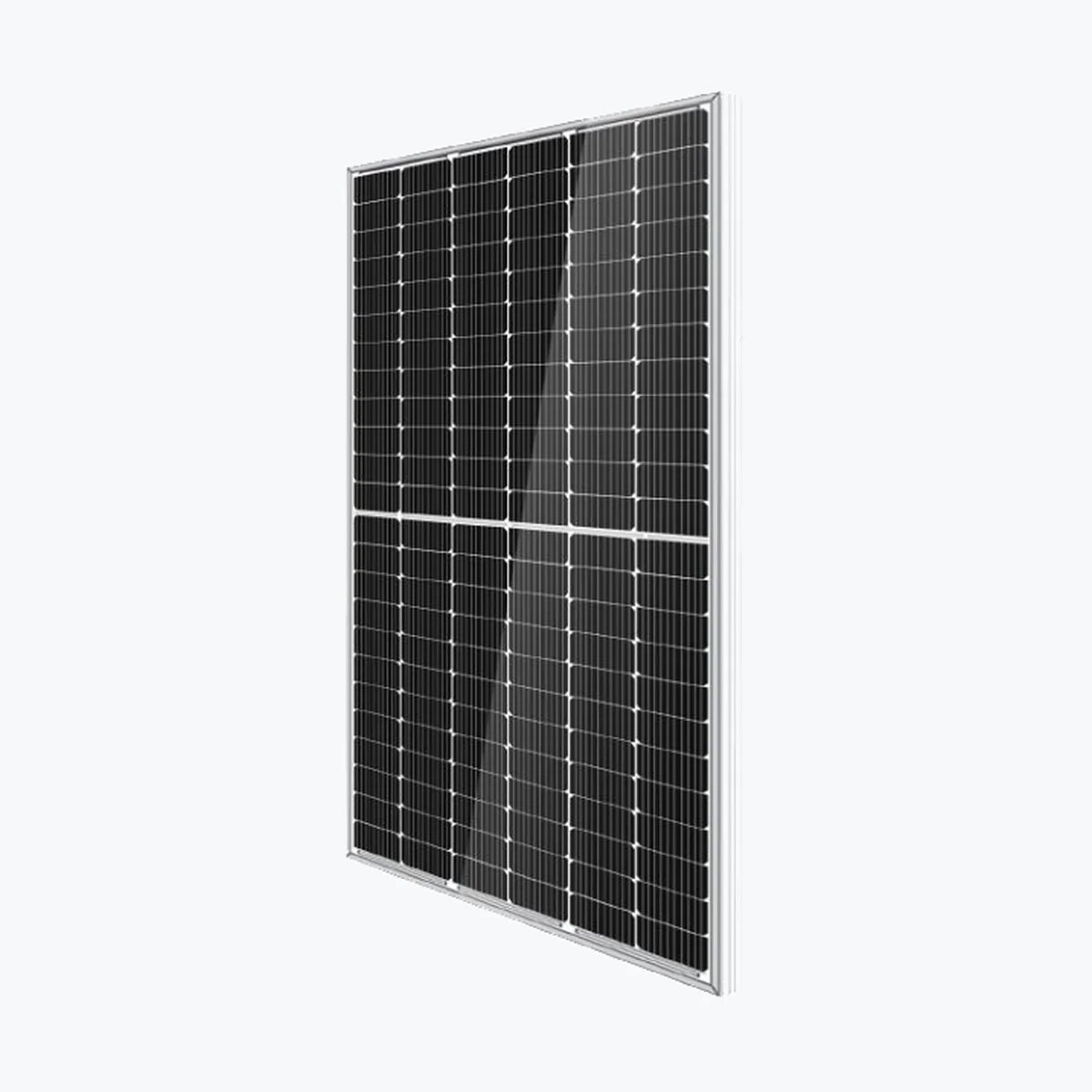

    Allesun AP144M10H 550

    Allesun AP144M10H 550

    $110.00 USD
    $110.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0911
    • Container price: $59,400.00 USD
    • Container qty: 720
    • Pallet price: $2,805.00 USD
    • Pallet qty: 30
    • Unit price: $110.00 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AP144M10H 550 Product Warranty 25 Years Power Warranty 10 Years of 90 %, 25 Years of 80 % Total Degradation Rate ⏳ 0.8 % Maximum Power (Pmax) 550 Wp Voltage at Maximum Power (Vmpp) 41.6 V Current at Maximum Power (Impp) 13.23 A Open Circuit Voltage (Voc) 49.8 V Short Circuit Current (Isc) 13.99 A Panel Efficiency 21.28 % Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.05 %/°C Panel Dimension (H/W/D) 2279x1134x35 mm Weight 29 kg Cell Size 182×182 mm Cell Number 144 Glass Type Anti-reflection Coating Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPT Frame Type Aluminium Download Manufacturer's PDF Datasheet

      Power Range: 530 ~ 550 Wp
      Panel Efficiency: 20.51 ~ 21.28 %
      Weight: 29 kg
      Seller Name: Allesun
      Country: United States
