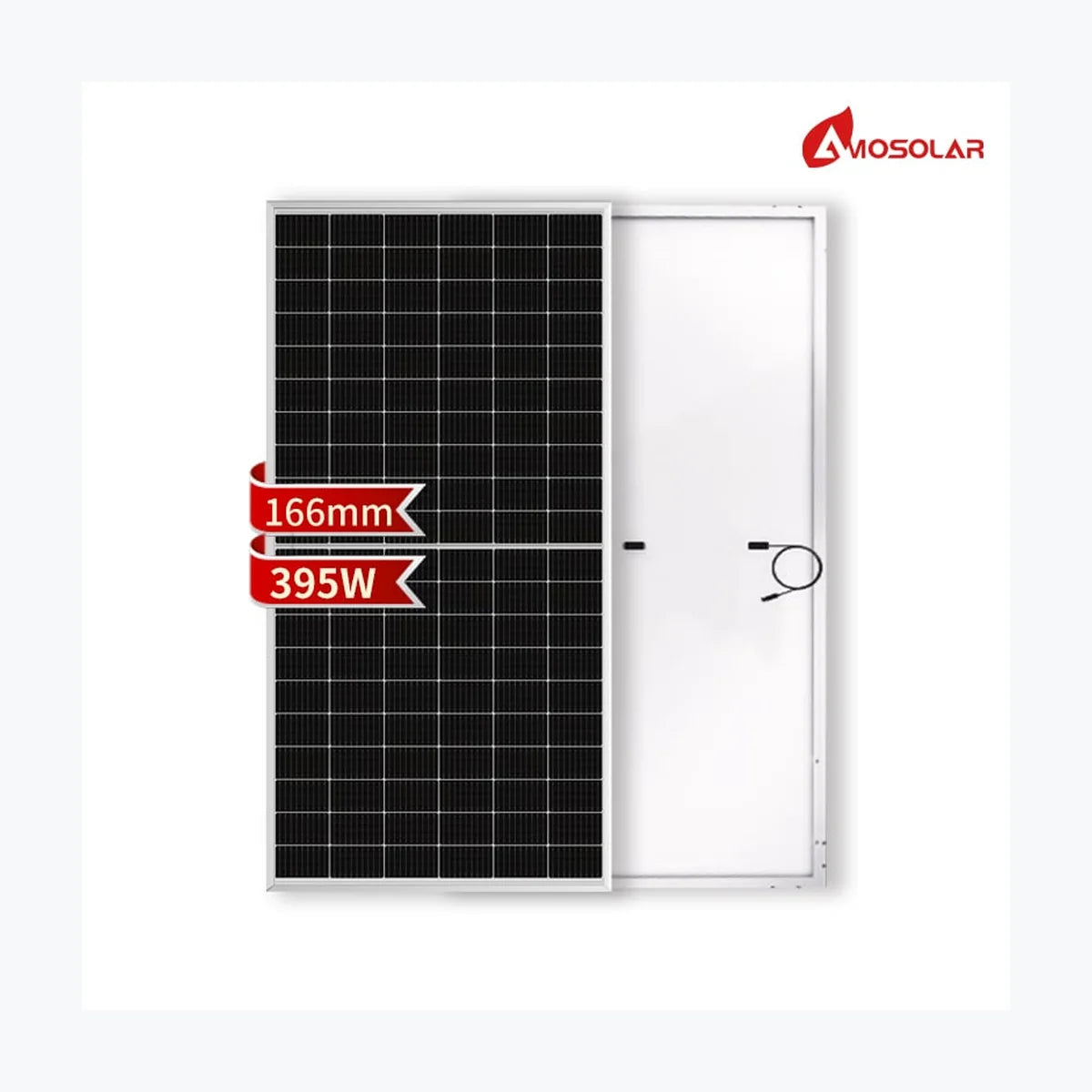

    AmoSolar AS380M6-120

    AmoSolar AS380M6-120

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-1152
    • Container price: $43.20 USD
    • Container qty: 720
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AS380M6-120 Product Warranty 12 Years Power Warranty 10 Years of 93.05 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Maximum Power (Pmax) 380 Wp Voltage at Maximum Power (Vmpp) 35.2 V Current at Maximum Power (Impp) 10.8 A Open Circuit Voltage (Voc) 40.9 V Short Circuit Current (Isc) 11.39 A Panel Efficiency 20.85 % Maximum Power (Pmax) 287 Wp Voltage at Maximum Power (Vmpp) 32.72 V Current at Maximum Power (Impp) 8.78 A Open Circuit Voltage (Voc) 39.14 V Short Circuit Current (Isc) 9.3 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.272 %/°C Temperature Coefficient of Isc 0.044 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1756x1038x35 mm Weight 20.5 kg Cell Number 120 Junction Box Diodes 3 Junction Box Protection Class IP 67 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Data

      Technology: PERC
      Power Range: 370 ~ 395 Wp
      Panel Efficiency: 20.3 ~ 21.67 %
      Weight: 20.5 kg
      Seller Name: AmoSolar Co., Ltd.
      Country: China
