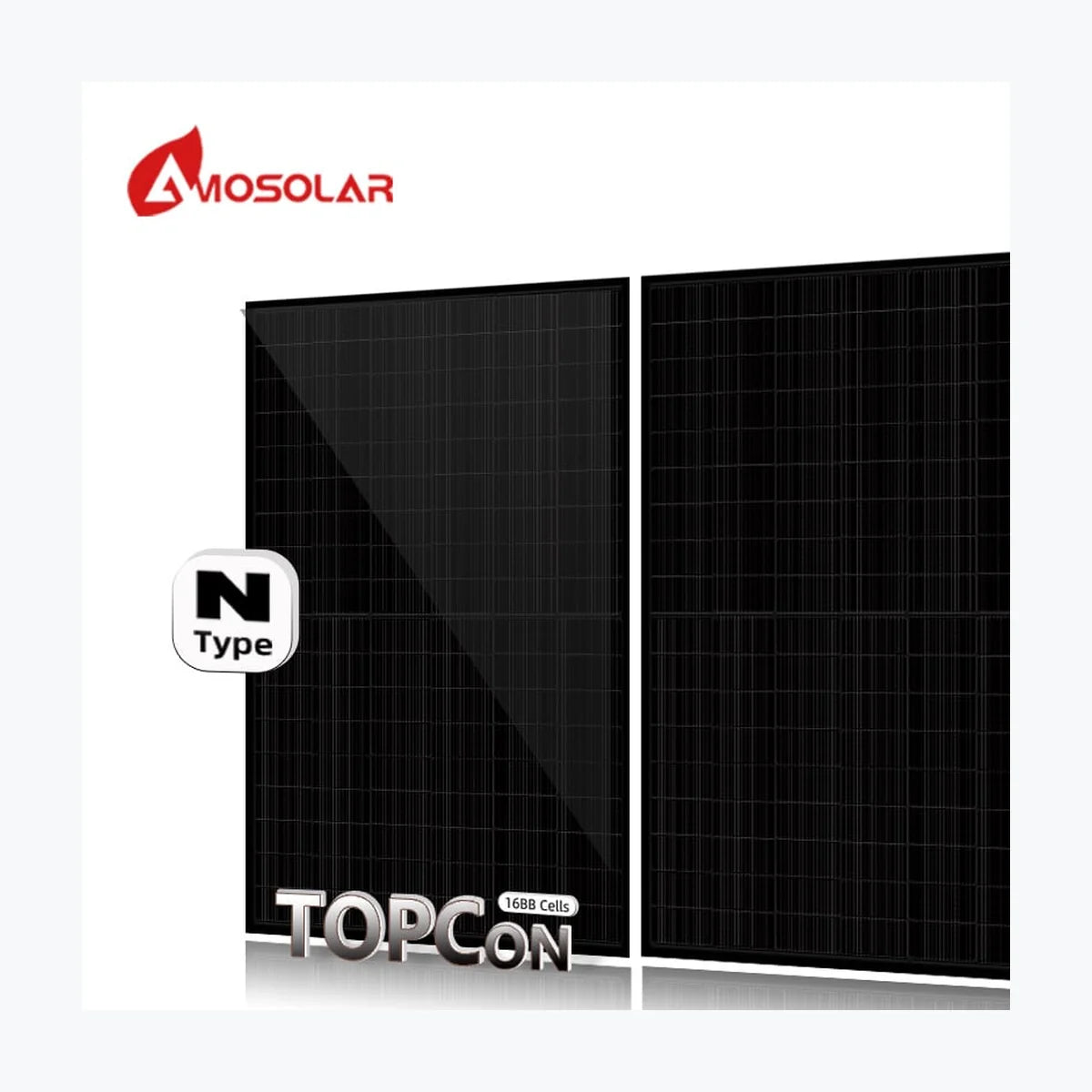

    AmoSolar AS425M10-108BM

    AmoSolar AS425M10-108BM

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-1173
    • Container price: $43.20 USD
    • Container qty: 720
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AS425M10-108BM Product Warranty 15 Years Power Warranty 15 Years of 93.4 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Maximum Power (Pmax) 425 Wp Voltage at Maximum Power (Vmpp) 31.84 V Current at Maximum Power (Impp) 13.35 A Open Circuit Voltage (Voc) 38.73 V Short Circuit Current (Isc) 14.06 A Panel Efficiency 21.76 % Maximum Power (Pmax) 325 Wp Voltage at Maximum Power (Vmpp) 30 V Current at Maximum Power (Impp) 10.82 A Open Circuit Voltage (Voc) 36.6 V Short Circuit Current (Isc) 11.42 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 23.5 kg Cell Size 182×182 mm Cell Number 108 Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download

      Technology: Bifacial, TOPCon
      Power Range: 410 ~ 430 Wp
      Panel Efficiency: 21 ~ 22.02 %
      Weight: 23.5 kg
      Seller Name: AmoSolar Co., Ltd.
      Country: China
