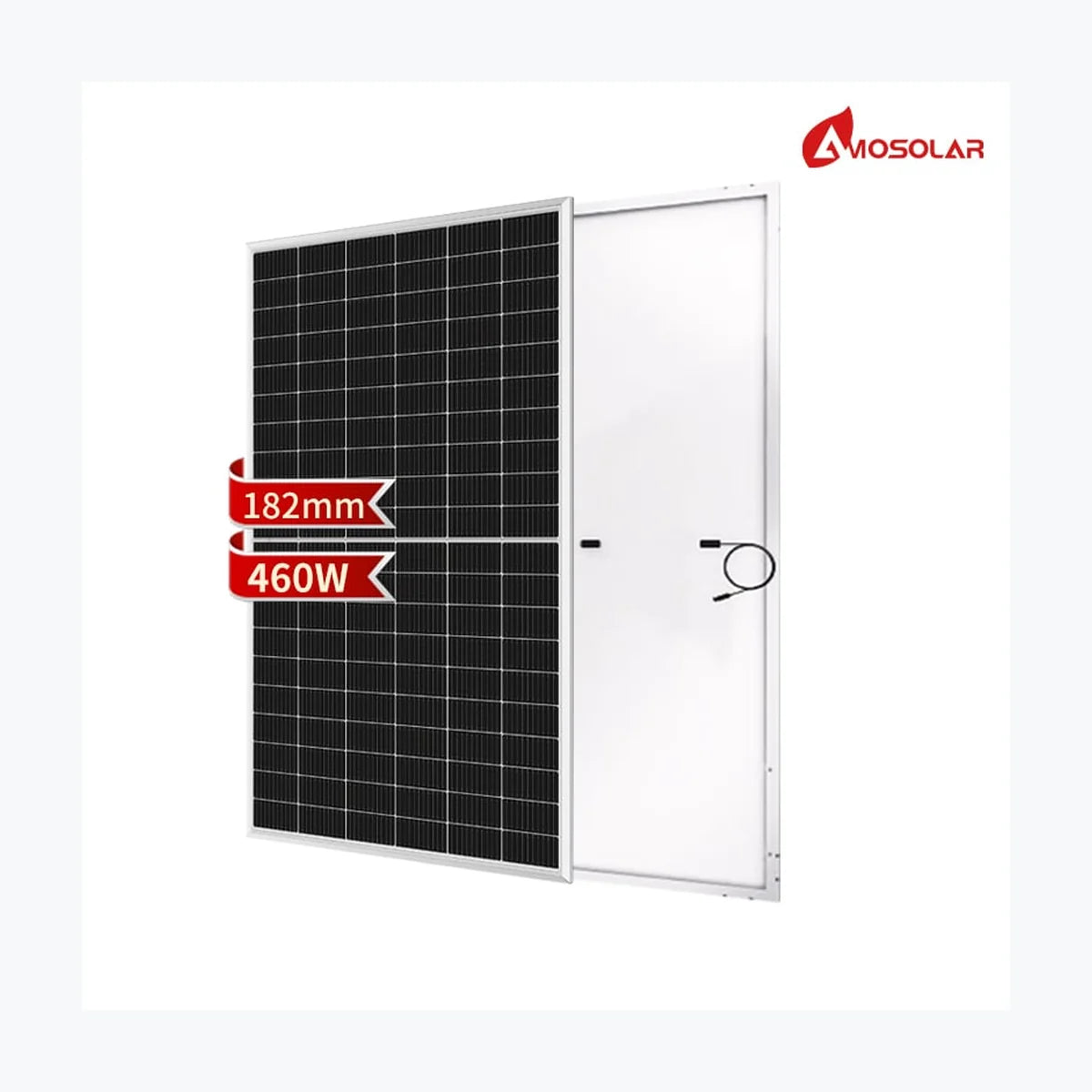

    AmoSolar AS450M10-120

    AmoSolar AS450M10-120

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-1179
    • Container price: $43.20 USD
    • Container qty: 720
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AS450M10-120 Product Warranty 12 Years Power Warranty 10 Years of 93.05 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Maximum Power (Pmax) 450 Wp Voltage at Maximum Power (Vmpp) 35.1 V Current at Maximum Power (Impp) 12.83 A Open Circuit Voltage (Voc) 43.48 V Short Circuit Current (Isc) 13.62 A Panel Efficiency 20.78 % Maximum Power (Pmax) 339 Wp Voltage at Maximum Power (Vmpp) 32.53 V Current at Maximum Power (Impp) 10.42 A Open Circuit Voltage (Voc) 38.59 V Short Circuit Current (Isc) 10.99 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.350 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1910x1134x30 mm Weight 23 kg Cell Size 182×182 mm Cell Number 120 Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Downlo

      Power Range: 440 ~ 465 Wp
      Panel Efficiency: 20.01 ~ 21.47 %
      Weight: 23 kg
      Seller Name: AmoSolar Co., Ltd.
      Country: China
