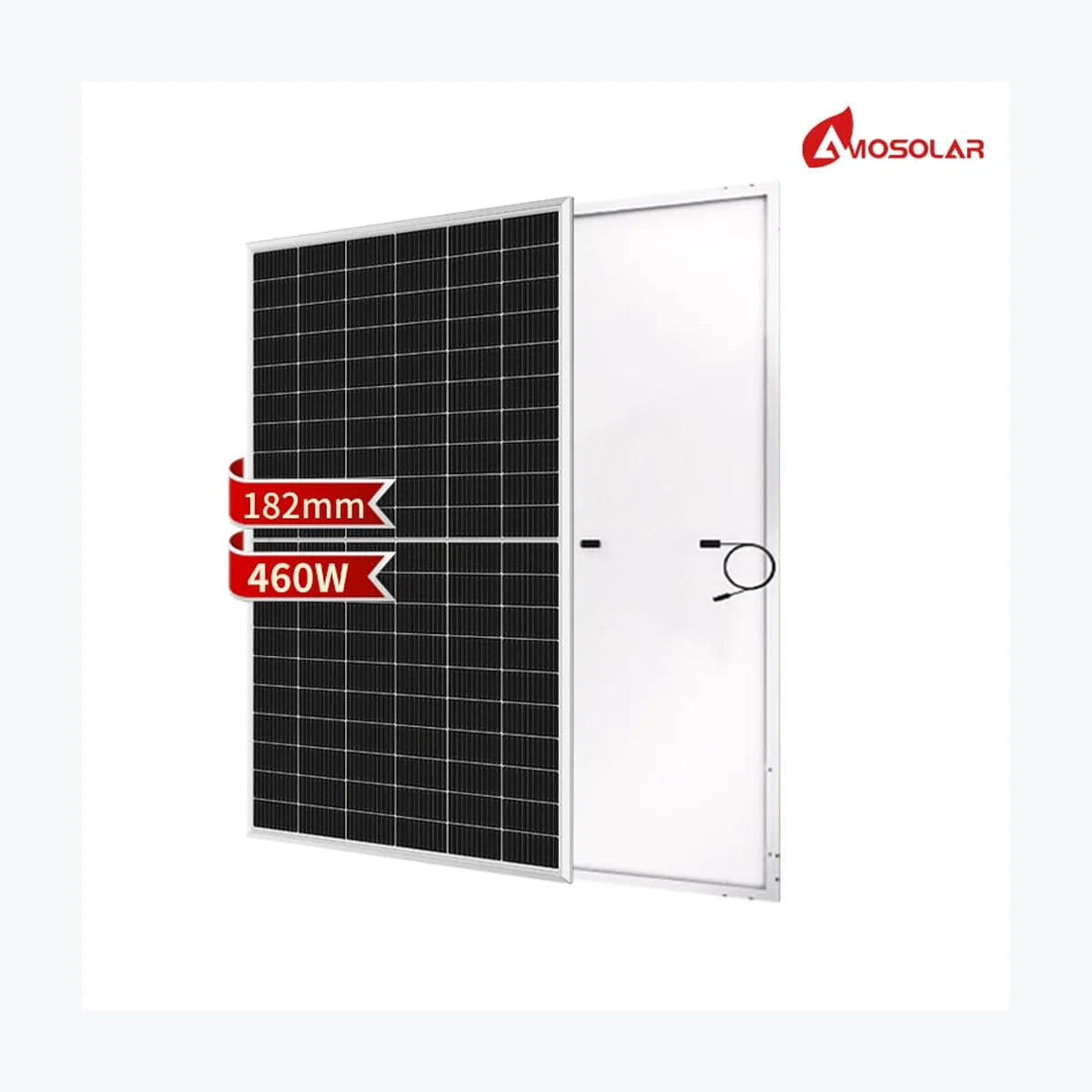

    AmoSolar AS460M10-120

    AmoSolar AS460M10-120

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-1183
    • Container price: $43.20 USD
    • Container qty: 720
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AS460M10-120 Product Warranty 12 Years Power Warranty 10 Years of 93.05 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Maximum Power (Pmax) 460 Wp Voltage at Maximum Power (Vmpp) 35.5 V Current at Maximum Power (Impp) 12.97 A Open Circuit Voltage (Voc) 43.72 V Short Circuit Current (Isc) 13.42 A Panel Efficiency 21.24 % Maximum Power (Pmax) 346.7 Wp Voltage at Maximum Power (Vmpp) 32.77 V Current at Maximum Power (Impp) 10.58 A Open Circuit Voltage (Voc) 38.87 V Short Circuit Current (Isc) 11.15 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.350 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1910x1134x30 mm Weight 23 kg Cell Size 182×182 mm Cell Number 120 Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Down

      Power Range: 440 ~ 465 Wp
      Panel Efficiency: 20.01 ~ 21.47 %
      Weight: 23 kg
      Seller Name: AmoSolar Co., Ltd.
      Country: China
