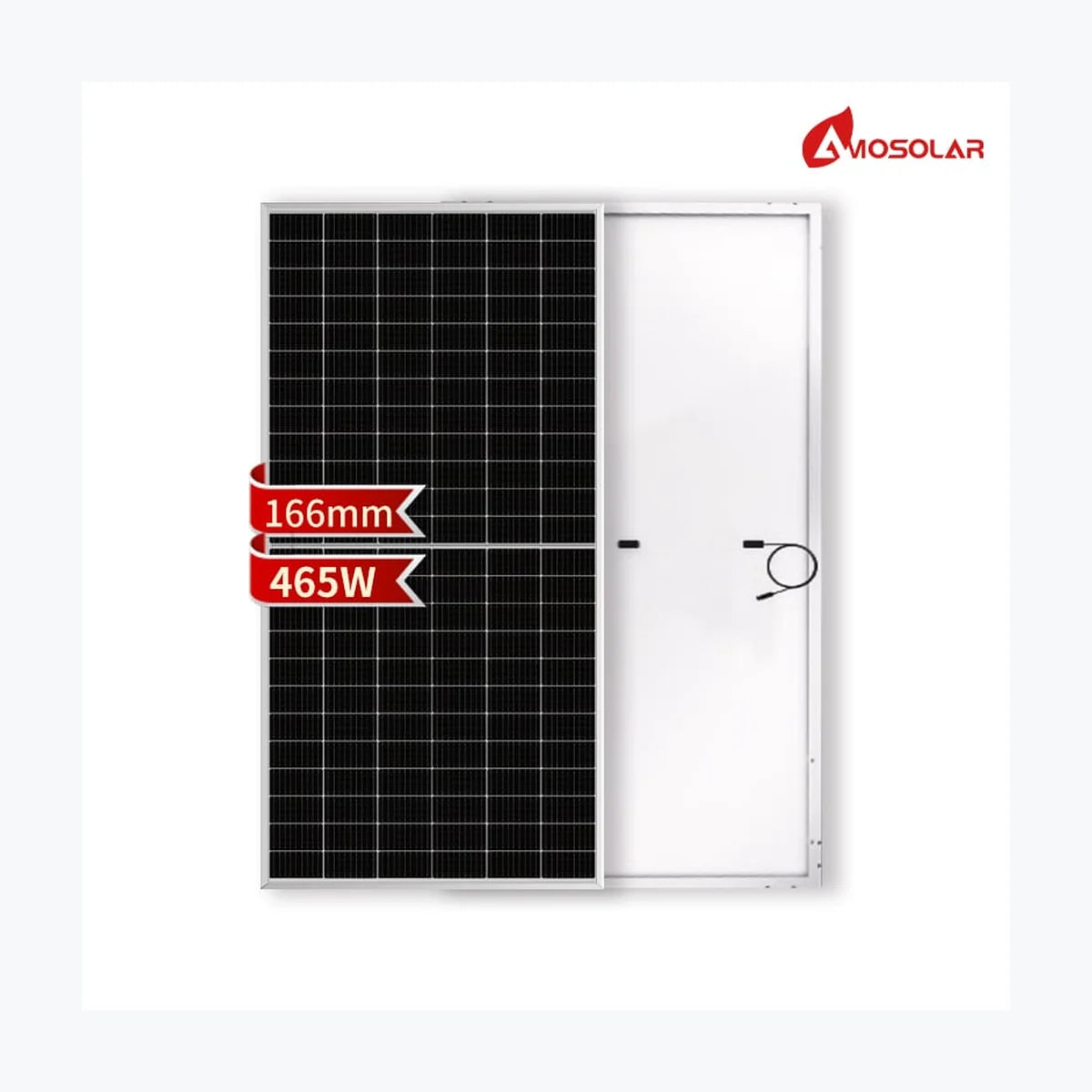

    AmoSolar AS460M6-144

    AmoSolar AS460M6-144

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-1184
    • Container price: $37.80 USD
    • Container qty: 720
    • Pallet price: $1.78 USD
    • Pallet qty: 30
    • Unit price: $0.07 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AS460M6-144 Product Warranty 12 Years Power Warranty 10 Years of 93.05 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Maximum Power (Pmax) 460 Wp Voltage at Maximum Power (Vmpp) 42.13 V Current at Maximum Power (Impp) 10.92 A Open Circuit Voltage (Voc) 50.11 V Short Circuit Current (Isc) 11.45 A Panel Efficiency 21.04 % Maximum Power (Pmax) 348 Wp Voltage at Maximum Power (Vmpp) 39.68 V Current at Maximum Power (Impp) 8.76 A Open Circuit Voltage (Voc) 47.38 V Short Circuit Current (Isc) 9.33 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.272 %/°C Temperature Coefficient of Isc 0.044 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 2094x1038x35 mm Weight 23 kg Cell Number 144 Junction Box Diodes 3 Junction Box Protection Class IP 67 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Da

      Technology: PERC
      Power Range: 440 ~ 465 Wp
      Panel Efficiency: 20.13 ~ 21.27 %
      Weight: 23 kg
      Seller Name: AmoSolar Co., Ltd.
      Country: China
